Driveshaft Center Support Bearing Carrier

Holds the driveshaft where it should be
JXB Performance
ES#:
4307624
Mfg#:
C5002A0
Select Your Vehicle

Driveshaft Center Support Bearing Carrier

Qty
Starting at: $199.35 249.99
Free Shipping Free Shipping
on orders $49 and up
Availability: In Stock
Add to Wish List

Select Options

all options
Driveshaft Center Support Bearing Carrier - Track Bushings
4307620 C5002A0T
Ships by Jan 28, 2022
249.99
Driveshaft Center Support Bearing Carrier - Both Bushings
4307621 C5002A0-B
In Stock
Sale SAVE 29% $279.99
199.35

Product Details

The stock center support bearing carrier holds the driveshaft in place with rubber so thin about 20 lbs of force moves it from center to the end of its travel. While that’s great for making sure no NVH makes it to the cabin, the stock bushing is extremely prone to failure, especially in harsher climates and on higher-powered cars. Even on the best-kept cars, the stock rubber bushing dry rots and cracks by the time it’s 10-15 years old. When the bushing lets go, it leads to excessive vibrations and clunking which can damage the transmission and rear diff. To make matters worse, the stock carrier is molded onto the center support bearing, leading to costly driveshaft replacement.

This upgraded unit keeps the driveshaft firmly in place at all times, and its polyurethane construction ensures it will never wear out. The thick bushings ensure the driveshaft cannot move from center, maintaining driveshaft alignment under any loading condition.

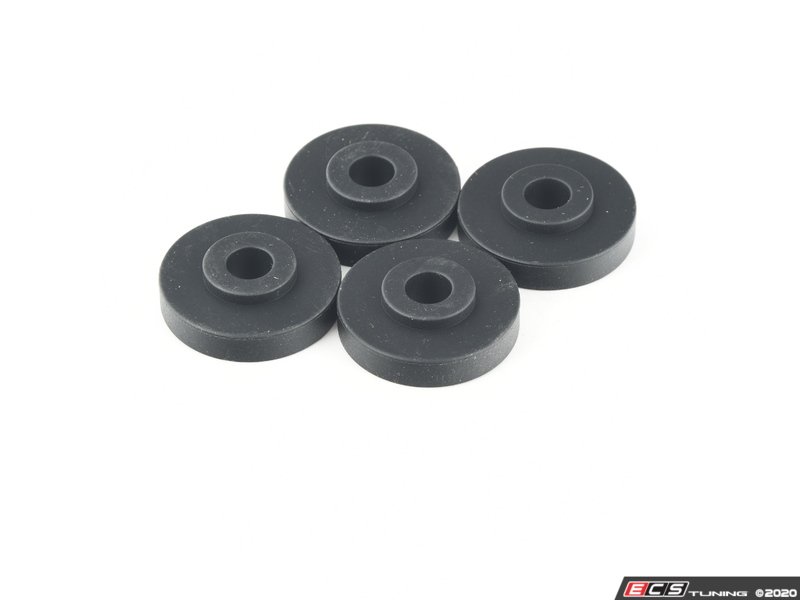

Two options are available for the bushings, both of which are many times over better than the stock bushings. We’ve paid close attention to the NVH levels associated with this upgrade. After extensive design iterations, we’ve come up with custom isolator bushings that separate the carrier from the body of the vehicle and mounting hardware. These carriers substantially reduce NVH levels.

The street bushings absorb most of the NVH from the drivetrain. Some light NVH is possible at some speeds in the form of a soft hum.

The track bushings are for those who want no-compromise drivetrain performance. These may create a substantial amount of cabin noise. Not sure which is for you? Try them both, they’re interchangeable!

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi C5 A6 FWD V6 2.8L
Audi C5 A6 FWD V6 3.0L
Audi C5 A6 Quattro 2.7T
Audi C5 A6 Quattro 4.2
Audi C5 A6 Quattro V6 2.8L
Audi C5 A6 Quattro V6 3.0L
Audi C5 Allroad Quattro 2.7T
Audi C5 Allroad Quattro 4.2L
Audi C5 S6 Quattro 4.2
Audi RS6 All 4.2T
Volkswagen Passat B5 4 Motion 1.8T
Volkswagen Passat B5 4 Motion V6 30v
Volkswagen Passat B5 4 Motion W8
