IMS Solution Intermediate Shaft Bearing Update Kit

Solid bearing replacement with oiling system
Mfg Part #
106-08.20
ECS Part #
ES#2999168
Brand
LN Engineering
1725.00
Free Shipping Free Shipping
Availability: Usually Ships in 4 Business Days
Qty
Does this fit my vehicle?

Product Details

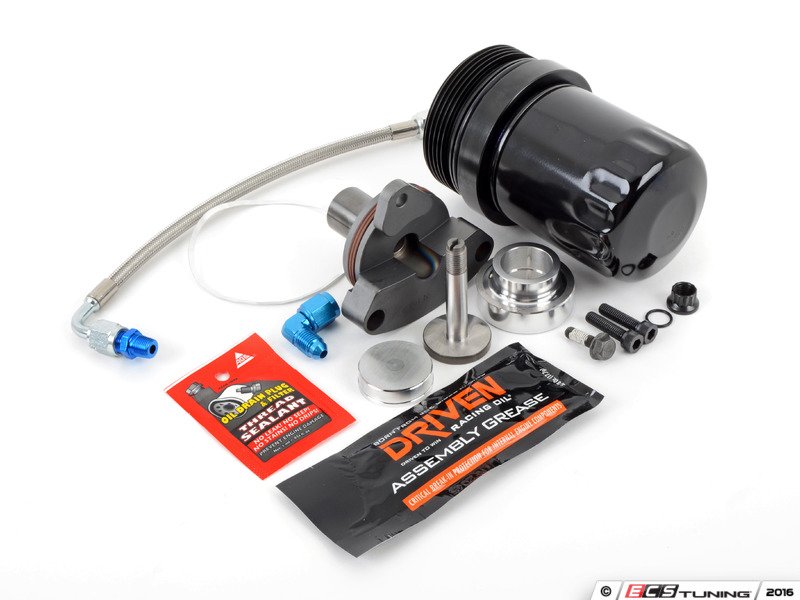

One and done.  The IMS Solution is the one-time upgrade to permanently prevent intermediate shaft bearing failure.  This system replaces the problematic ball bearing with a journal bearing and uses a fresh oil supply from the filter housing to keep the bearing lubricated at all times while the engine is running.  This kit includes:

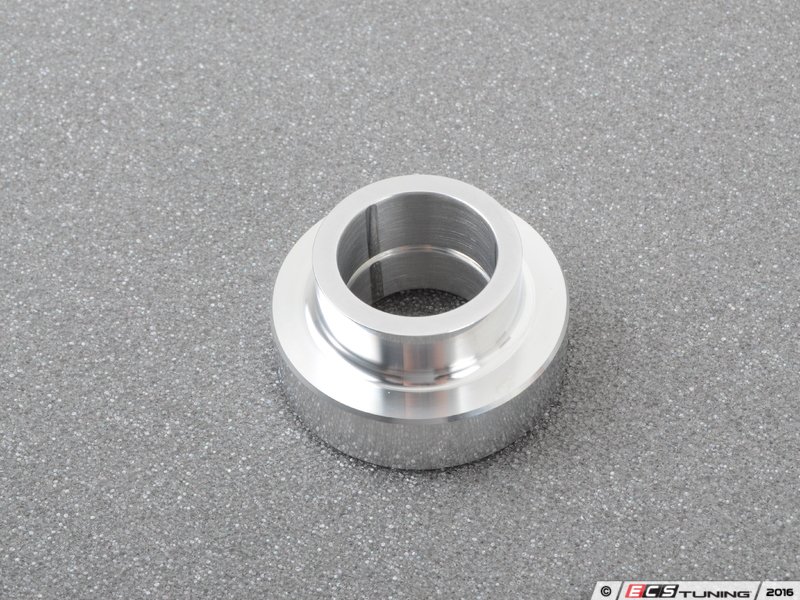

  • IMS Solution plain bearing

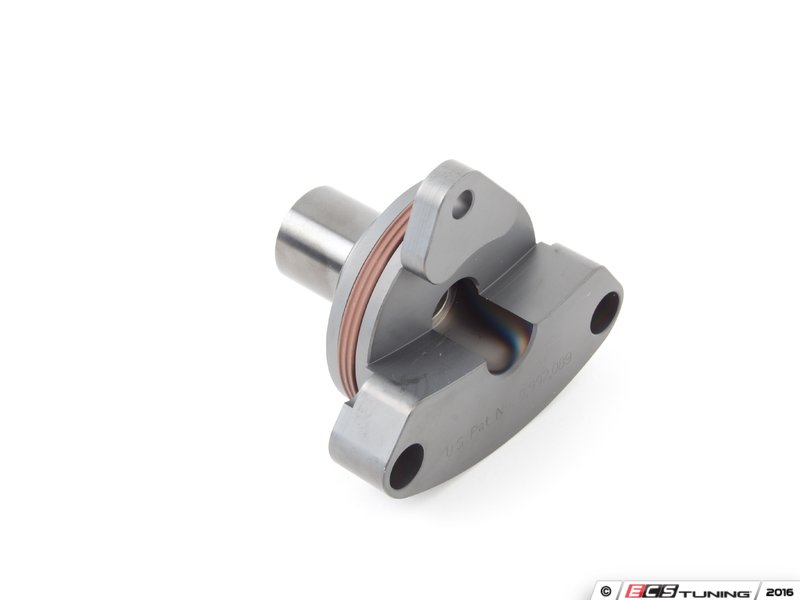

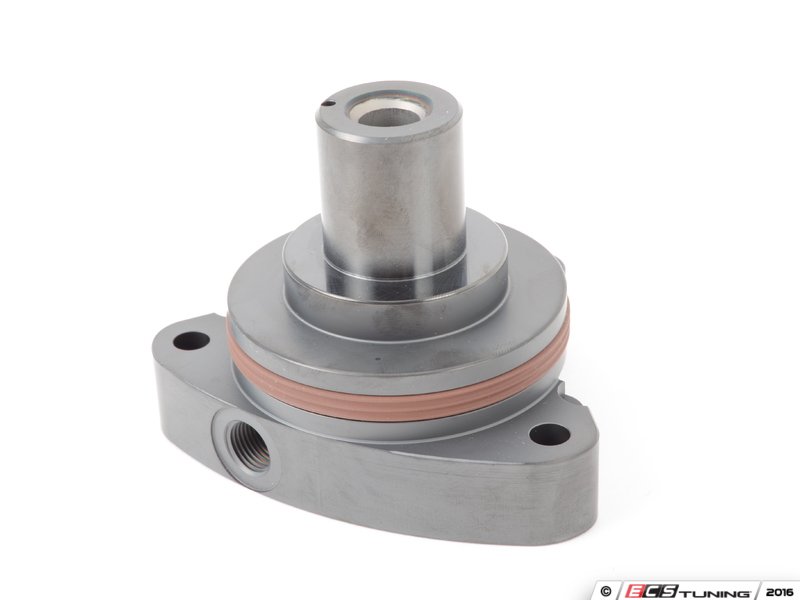

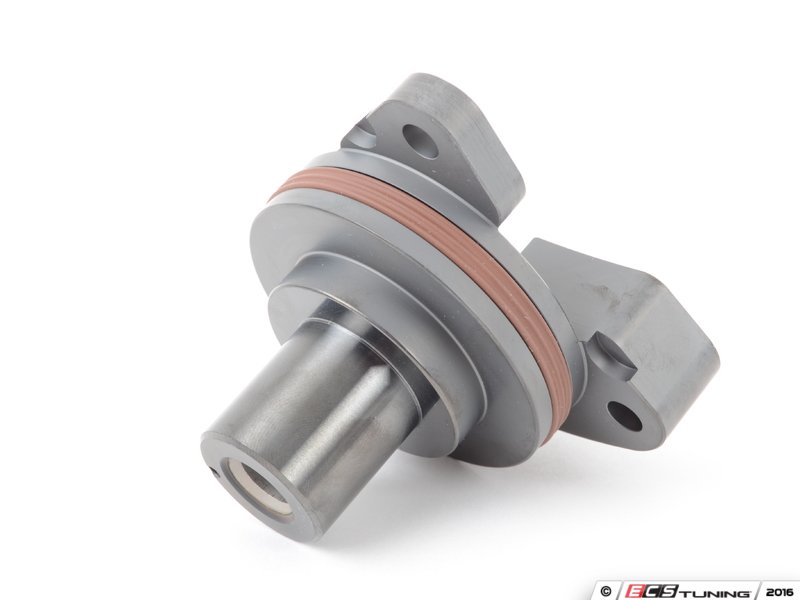

  • IMS Solution flange with seals and o-rings

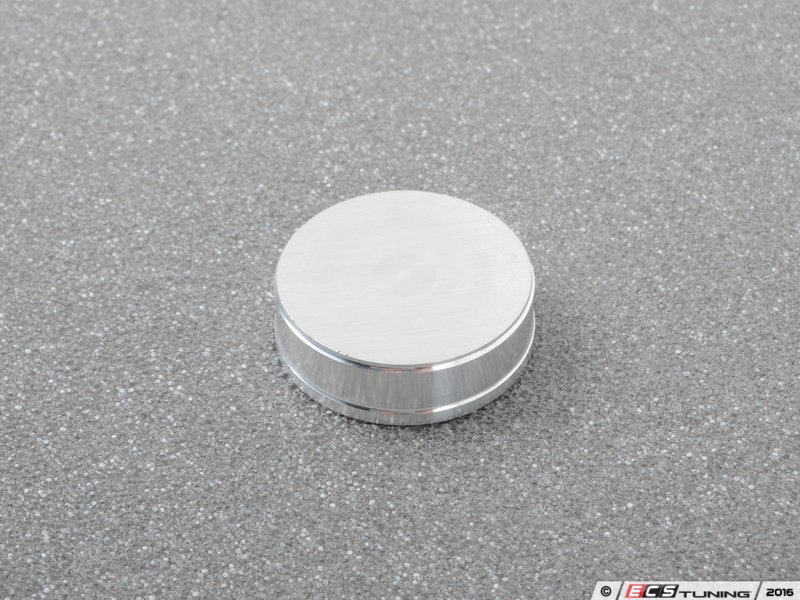

  • Press-in IMS tube plug

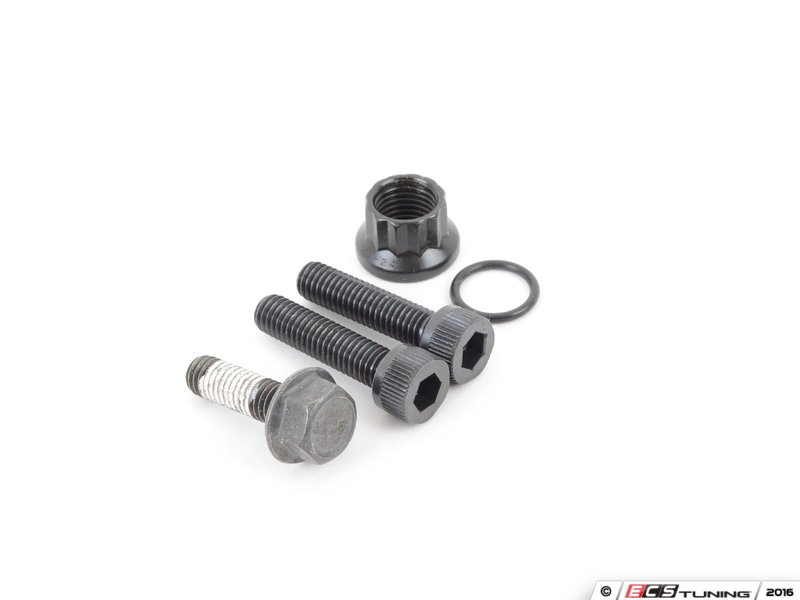

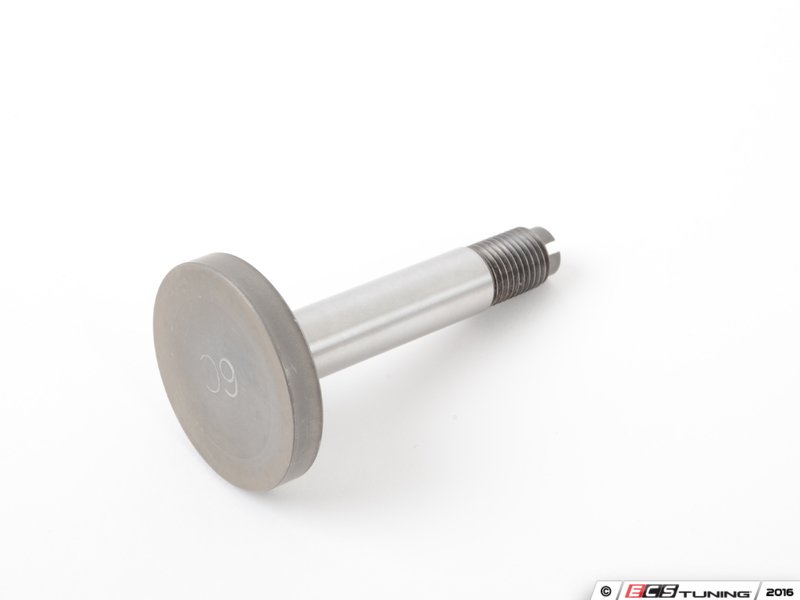

  • Center bearing support bolt and 12-point fastener

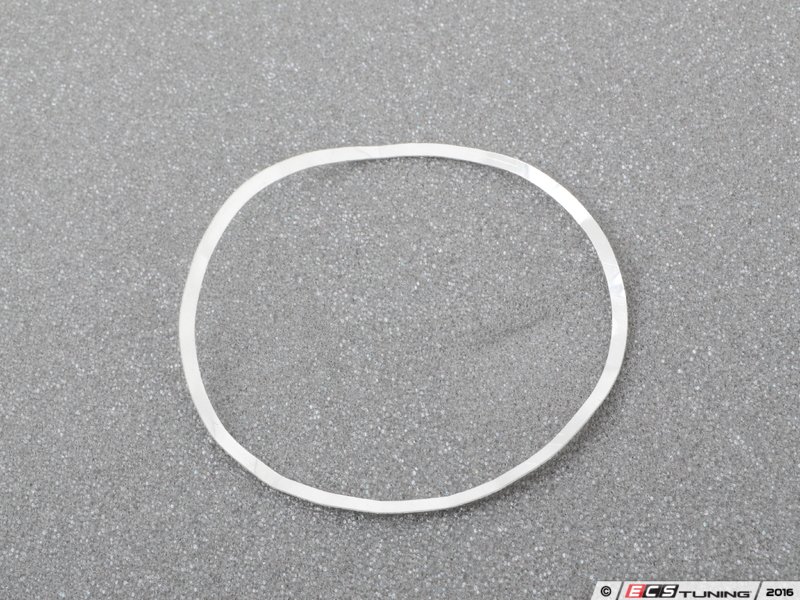

  • Shim
  • Circlip
  • Bolts

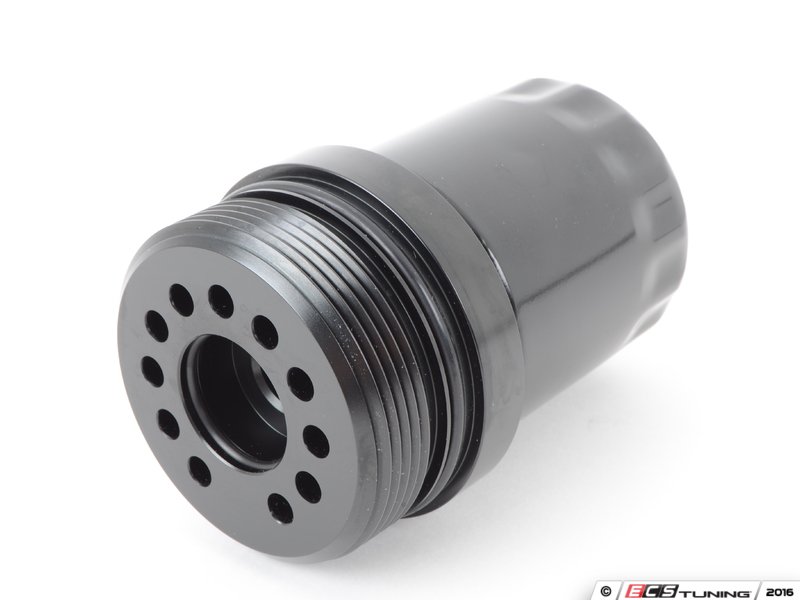

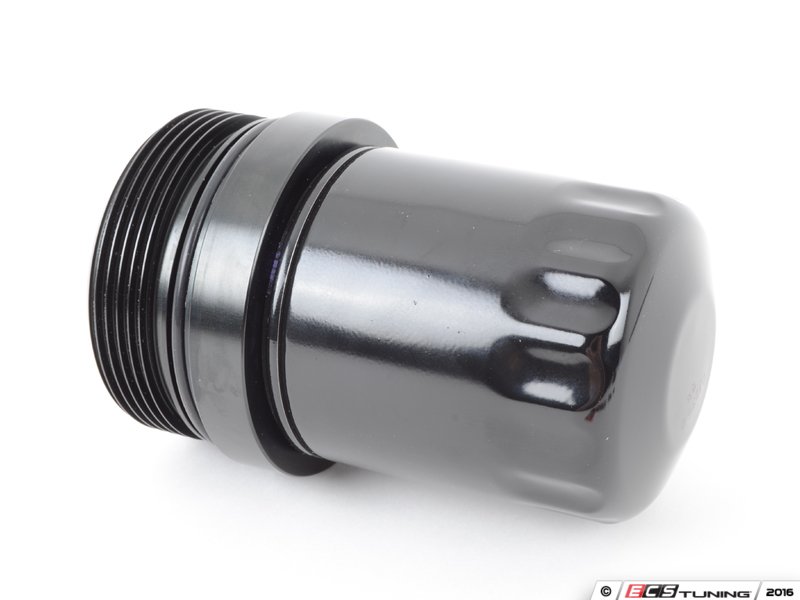

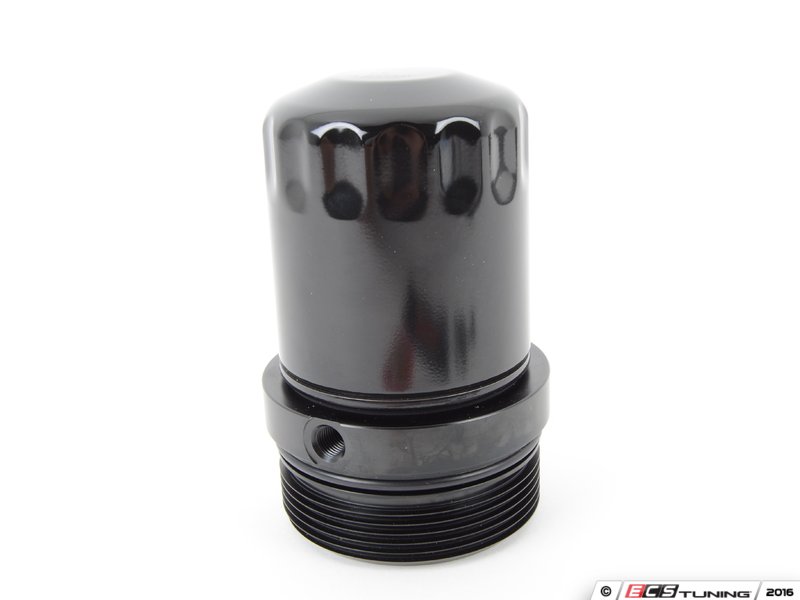

  • Spin-on oil filter adapter with external oiling port

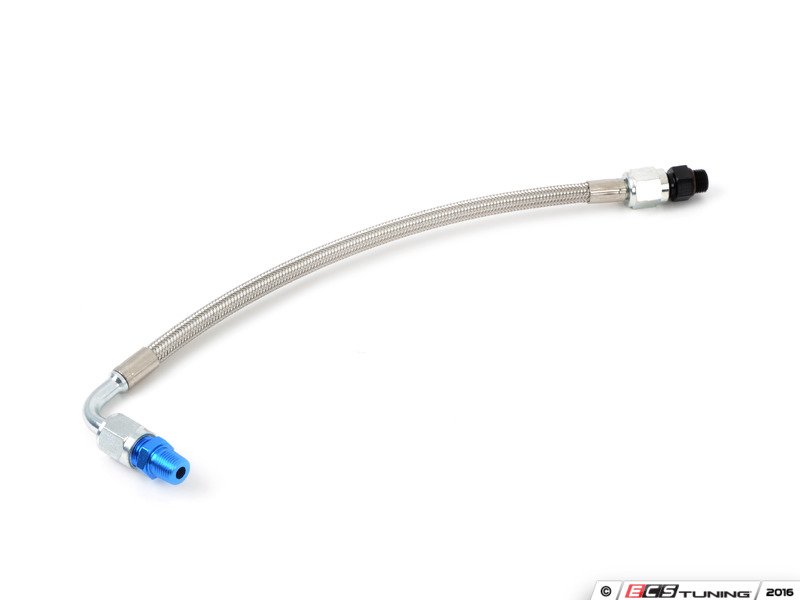

  • Pre-assembled oil line
  • Oil filter
  • Oil sample bottle

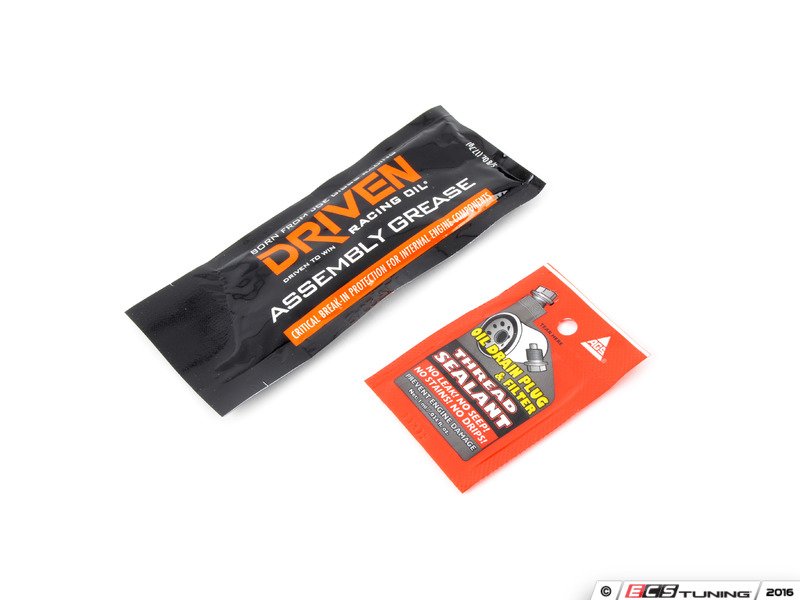

  • Assembly lube
  • Thread sealant
  • Instruction manual
  • Serialized door tag

Vehicles with model year 2000-2001 will need to determine if their original bearing is single-row or double-row.  This replacement is for the single-row bearing, which can be identified by the deep IMS flange (19.27mm depth).

This Part Fits the Following Vehicles

Make Model Submodel Engine Year Chasis
Porsche All 40th Anniversary Edition All 2004 996
Porsche All Base All 2004 986
Porsche All Base All 2005 987
Porsche All Carrera All 2005 997
Porsche All Carrera 4S All 2002 996
Porsche All Carrera 4S All 2003 996
Porsche All Carrera 4S All 2004 996
Porsche All Carrera 4S All 2005 996
Porsche All Carrera S All 2005 997
Porsche All S All 2004 986
Porsche All S All 2005 987
Porsche All S Special Edition All 2004 986
Porsche 911 Carrera H6 3.4L 2000 996
Porsche 911 Carrera H6 3.4L 2001 996
Porsche 911 Carrera H6 3.6L 2002 996
Porsche 911 Carrera H6 3.6L 2003 996
Porsche 911 Carrera H6 3.6L 2004 996
Porsche 911 Carrera H6 3.6L 2005 996
Porsche 911 Carrera 4 H6 3.4L 2000 996
Porsche 911 Carrera 4 H6 3.4L 2001 996
Porsche 911 Carrera 4 H6 3.6L 2002 996
Porsche 911 Carrera 4 H6 3.6L 2003 996
Porsche 911 Carrera 4 H6 3.6L 2004 996
Porsche Boxster Roadster H6 2.7L 2000 986
Porsche Boxster Roadster H6 2.7L 2001 986
Porsche Boxster Roadster H6 2.7L 2002 986
Porsche Boxster Roadster H6 2.7L 2003 986
Porsche Boxster Roadster H6 3.2L 2000 986
Porsche Boxster Roadster S H6 3.2L 2000 986
Porsche Boxster Roadster S H6 3.2L 2001 986
Porsche Boxster Roadster S H6 3.2L 2002 986
Porsche Boxster Roadster S H6 3.2L 2003 986
