Manual Bushing Installation And Removal Tool Set

Comprehensive kit for fast and effective removal/installation of wheel bearings/suspension bushings and seals.
Mfg Part #
ECS Part #
OEM Tools
Availability: In Stock
Does this fit my vehicle?

Product Details

 Allows the technician to service a wide range of bushings without removing components from the vehicle. Works on silent bearings, hydraulic bearings, ball bearings, shaft seals, rubber bearings, etc.

  • Reduces the Possibility of Damaging the Bearing/Suspension Housings

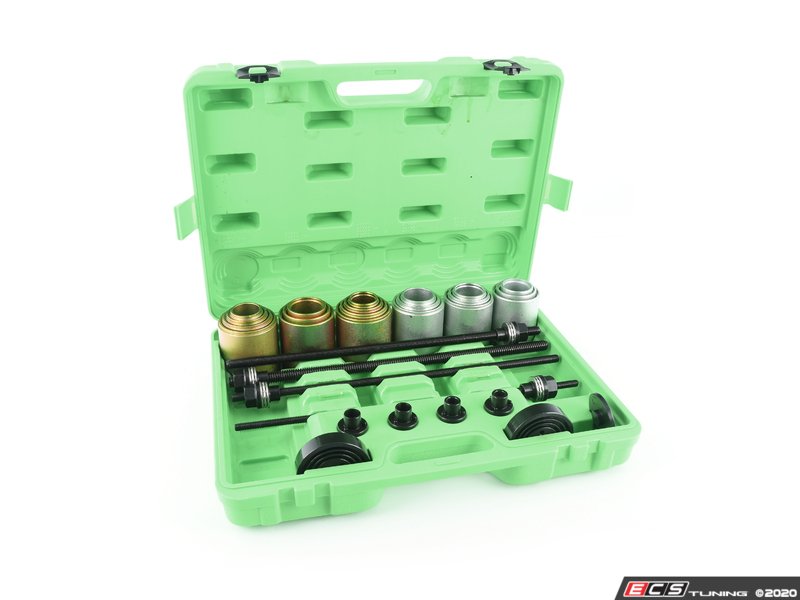

  • Supplied with 4 Stepped End Plates and 4 Force Screws in Carry-Case
  • Plates and Sleeves Can Also Be Used in a Standard Workshop Press When On-Site Access is Not Possible
  • Comes with 20 Cups and Receivers for 100's of Combinations

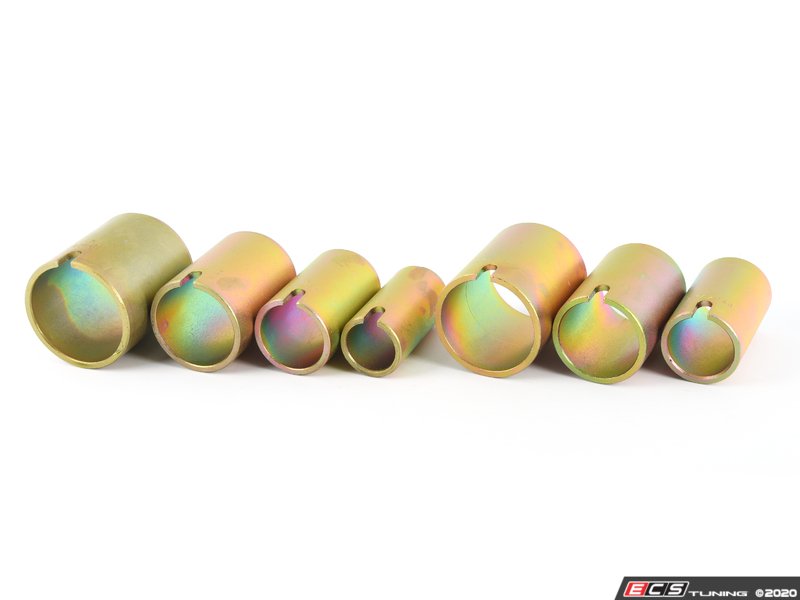

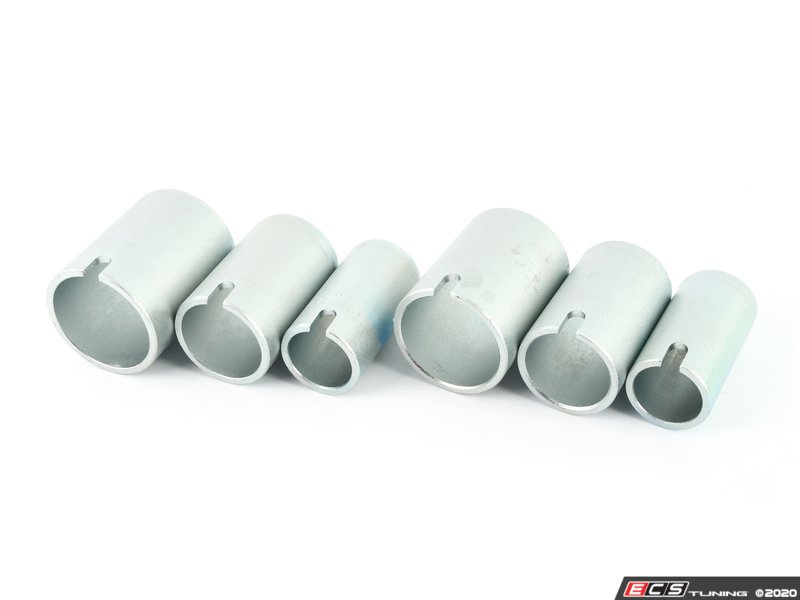

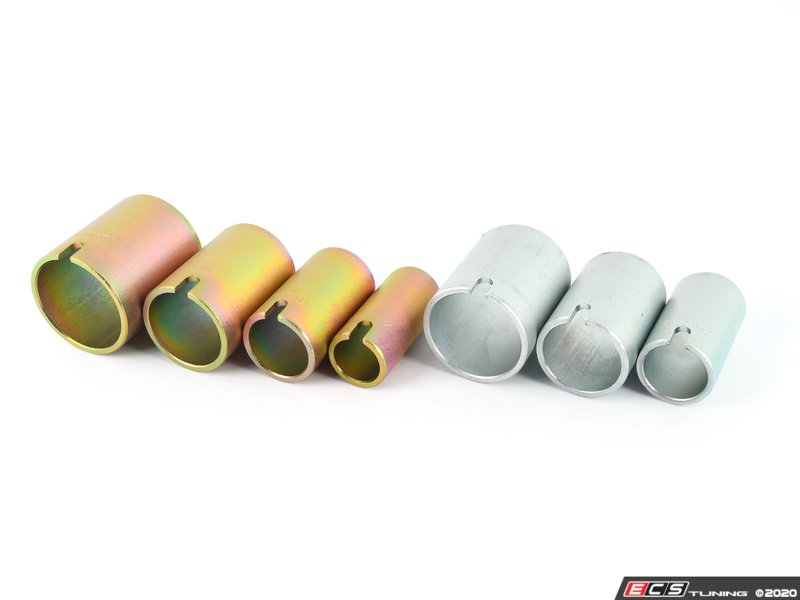

  • Sleeve Wall Thickness: 5 mm; Sleeve Height: 94 mm
  • External Sleeve Diameter: 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82 mm
  • Sleeve End Caps: 83 x 20 mm

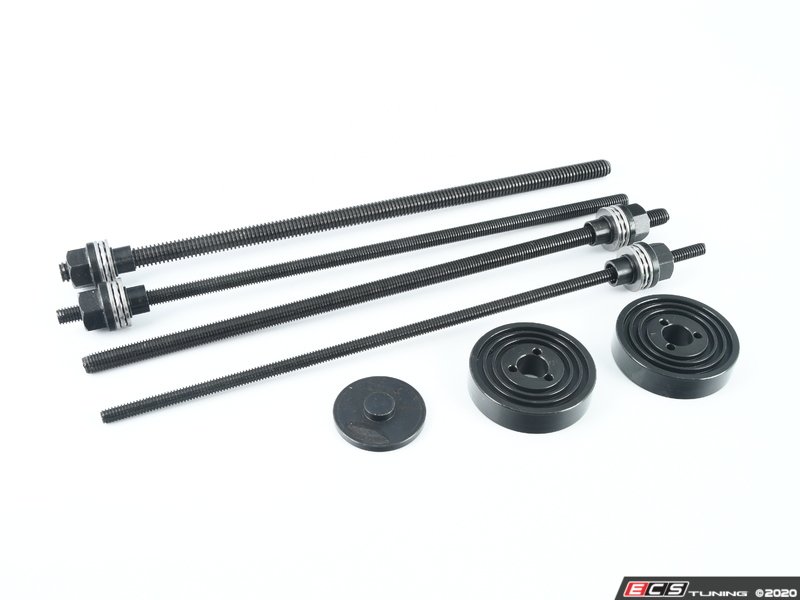

  • 4 ACME Threaded Forcing Screws: 10 X 1.5, 12 X 2.0, 14 X 2.0, 16 X 2.5 mm
  • Force Screw Length: 450 mm
  • Includes Adapter to Use Bushings with Shop Press

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi All All All
BMW All All All
Mercedes Benz All All All
MINI All All All
Porsche All All All
Volkswagen All All All
