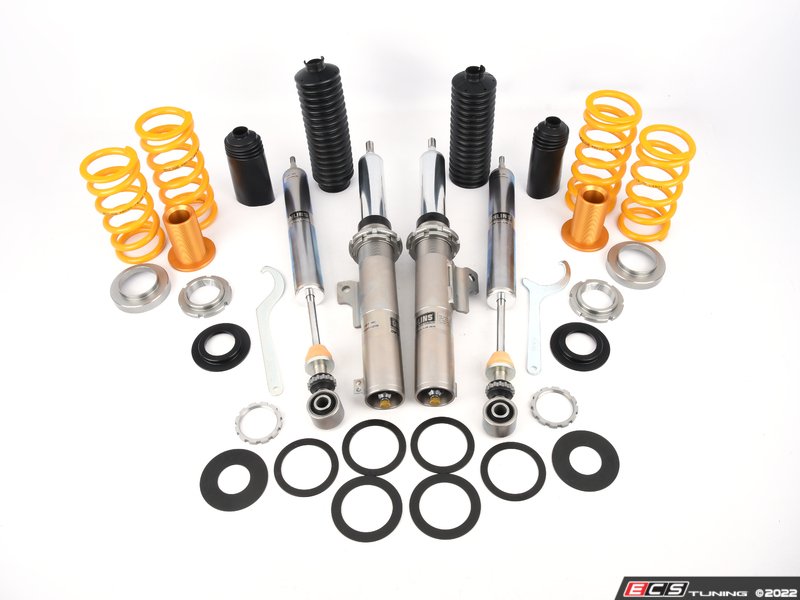

Ohlins Road & Track DFV Coilover Kit

Features 30-Level dampening adjustment and DFV technology
Mfg Part #
VWSMT10-AWD
ECS Part #
ES#4027422
Brand
Ohlins
2570.00
Free Shipping Free Shipping
Availability: Direct Ship
Qty
Does this fit my vehicle?

Product Details

Founded in 1976, Ohlins Suspension evolved into one of the most sought-after suspension brands in both the motorcycle and automotive markets, provides some of the best suspension packages offered. Many OE suppliers such as BMW Motorsport, Audi, Lamborghini. Pagani, Ducati and Kawasaki have built strong relationships with Ohlins and trust them to deliver premium products that offer long lasting performance. Using numerous years of R&D, track testing, road testing and fine tuning, Ohlins has come up with the DFV Road & Track Coilover Kit.

What separates this coilover kit from others in the market at roughly the same price? The answer is their state of the art DFV (Dual Flow Valve) technology that makes traction and grip paramount. The dual flow valve gives the same characteristics on rebound as it does on compression which allows the wheel and tire to quickly and effectively resume their position on the road. The dual flow system gives you coilovers that are both comfortable and agile. At lower speeds and with minor road imperfections, the DFV coilovers retain an OE suspension feel. At higher speeds and when encountering rougher terrain, the dual flow valve allows for a more fine-tuned control which keeps you in control of the vehicle and always ensures the tires are planted firmly.

How do the Dual Flow Valves work? The simple answer is by allowing higher amounts of fluid to pass through the valve in the case of a sudden impact, making it easier for the shock to absorb and transfer energy quicker. The long answer involves 2 steps, compression and rebound.

  • Compression: At low shaft speeds, oil flows mostly through the shaft jet bleed. At higher shaft speeds, oil flows mostly through the compression ports in the piston. At very high shaft speeds, or during sudden shaft accelerations, oil can also escape through the compression ports in the DFV, increasing comfort.
  • Rebound: At low shaft speeds, oil flows mostly through the shaft jet bleed.  At higher shaft speeds, oil flows mostly through the rebound ports in the piston. At very high shaft speeds, or during sudden shaft accelerations, oil can also escape through the rebound ports in the DFV, maintaining tire contact with the road.

These work together to perfectly balance the amount of dampening needed to keep the car fimly planted, but still comfortable and with less bounce.

Another major factor in picking the perfect coilover system is finding one that is built to adequately manage temperature increases in the shock oil. When the temperature increases, dampening is decreased and causes the suspension's effectiveness to fade, changing the vehicle's handling characteristics to change. To combat this, Ohlins utilizes a unique needle bleed valve system which expands as the temperature increases, closing the gap that the fluid travels through, maintaining a consistent dampening rate that leaves the suspension feeling the same lap after lap.

Other benefits and features that you can expect from these premium coilovers include:

  • Light-weight design with mostly aluminum construction
  • Long term corrosion resistance
  • 30-Level 1-way adjustable dampening
  • OE fitment - Uses stock vehicle upper mounts
  • Rebuildable
  • Height adjustable, threaded shock body
  • Adjustable spring preload
  • Monotube damper
  • 2 year limited warranty

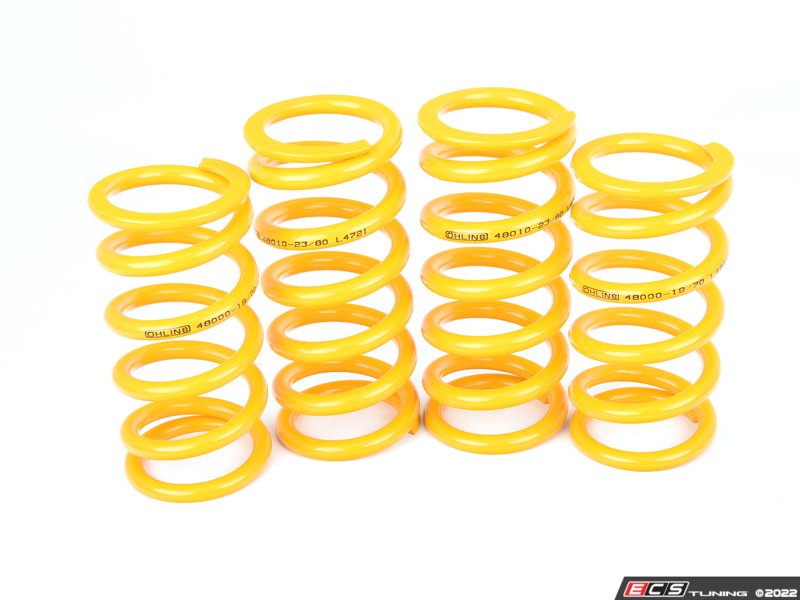

Spring Rates:

  • Front: 70 N/mm // 400 lbs/in. // 7 k/mm
  • Rear: 80 N/mm // 458 lbs/in. // 8 k/mm

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi 8J TTRS Quattro 2.5T
Audi A3 8P Quattro 2.0T
Audi A3 8P Quattro 3.2L
Audi A3 8P Quattro V6 3.2L
Audi TT MKII Quattro 2.0T
Audi TT MKII Quattro 3.2L
Audi TTS MK2 (2006-2013) 2.0T
Volkswagen Golf R All 2.0T
Volkswagen R32 MKV All 3.2
