Powerflex Polyurethane Rear Subframe Front Mounting Bushing Kit - Street Series
- Mfg Part #
- PFR85-527 PFR85-527
- ECS Part #
- ES#5481735
- Brand
-
This product was last offered at the strikethrough price on
08-14-2026
Product Details
The heavy rear subframe assembly on your 4Motion or Quattro VAG vehicle is held to the chassis by four heavily voided factory rubber mounts. Over time, these rubber bushings degrade, tear, and soften due to constant suspension load, torque transfer from the Haldex AWD system, and exposure to the elements. This creates a massive pocket of slop, allowing the entire rear subframe assembly to physically shift and deflect under heavy acceleration, cornering, and braking. The result is unpredictable rear-end handling, annoying clunks during load transfer, and a disconnected, vague feeling from your rear suspension.

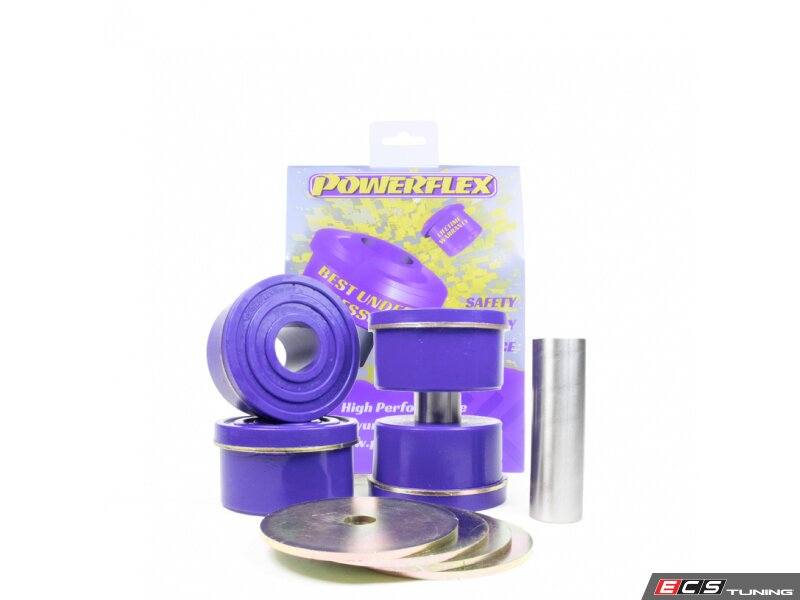

The Powerflex PFR85-527 Rear Subframe Front Mounting Bushing Kit is the ultimate direct-replacement upgrade to cure this movement. Manufactured using Powerflex’s premium "Street Series" polyurethane, these robust mounts tightly secure the front mounting points of the rear subframe to the chassis. By completely eliminating the deflection found in old factory rubber, this kit ensures your rear suspension geometry remains perfectly true under extreme loads, delivering a massive boost to handling predictability, throttle response, and overall chassis rigidity.
Because it utilizes the street-optimized compound, you receive a massive upgrade in rear-end stability without suffering from the harsh, bone-rattling Noise, Vibration, and Harshness (NVH) associated with solid aluminum track mounts.
Please Note: This kit specifically replaces the FRONT mounting bushings on the rear subframe (Position #27 on the Powerflex diagram). It is highly recommended to pair these with the corresponding Rear Subframe Rear Mounting Bushings (PFR85-528) for maximum subframe stability.
Key Benefits & Features:
Eliminates Subframe Deflection: Locks down the front of the rear subframe, preventing dynamic geometry changes and ensuring highly predictable mid-corner handling.
Crisper Drivetrain Response: Helps eliminate the "rubber band" feeling and clunks associated with Haldex torque transfer under heavy acceleration and braking.
Street-Optimized Compound: The "Street Series" polyurethane offers the perfect sweet spot between high-performance chassis rigidity and comfortable daily-driver compliance.
Unmatched Longevity: Unlike OEM rubber that rots, tears, and stretches over time, Powerflex polyurethane is impervious to street salt, exhaust heat, and extreme temperatures.
Direct Fitment: Engineered to perfectly replace the failure-prone factory rubber rear subframe mounts (Replaces OEM Part Number: 1K0505145J). Located at Powerflex Diagram Position #27.
Sold as a Pair: Includes two (2) complete polyurethane bushings, which is enough to upgrade both the left and right front mounting points of the rear subframe.
Buy with Confidence: Backed by Powerflex's legendary unconditional Lifetime Warranty!
- 1K0505145J
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | 8J TTRS | Quattro | 2.5T | Use vehicle selector to confirm fitment |
| Volkswagen | CC | 4Motion | VR6 | For vehicles with production date up to 05/28/2012 only. Front position only. |
| Volkswagen | Golf R | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Passat B6 | 4 Motion | 3.6L | Use vehicle selector to confirm fitment |
| Volkswagen | R32 MKV | All | 3.2 | Use vehicle selector to confirm fitment |
| Volkswagen | Tiguan 1 | 4 Motion | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Tiguan 2 | 4 Motion | 2.0T | For vehicles with production date up to 05/28/2012 only. Front position only. |
