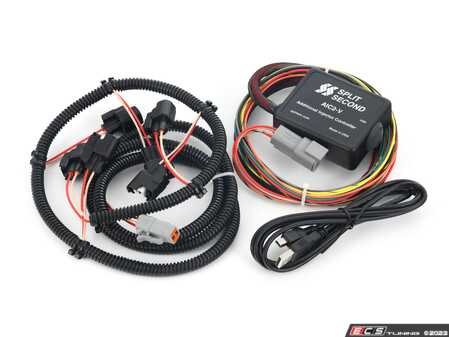

AIC-2 Split Second Controller - (NO LONGER AVAILABLE)
- Mfg Part #
- 101-0193
- ECS Part #
- ES#4431017
- Brand
-
Product Details

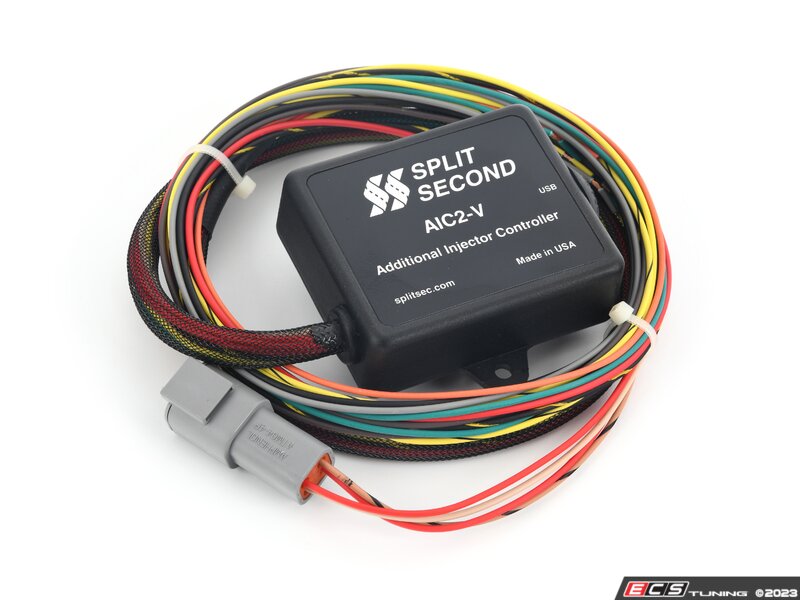

The AIC2 additional injector controller is ideally suited to turbo and supercharged engines. It provides additional fuel without changes to the stock injectors or ECU programming. This preserves the characteristics of the stock engine under light load while providing all the necessary fuel in boost.
The AIC2 additional injector controller integrates seamlessly with the stock ECU to satisfy fuel requirements in boost. It can control either upstream or port injectors. It is especially useful on modern direct injected engines which have fuel systems that are difficult to modify. There are two internal injector drivers which can be operated from a single or independent tables. Each driver can drive up to four high-impedance injectors.

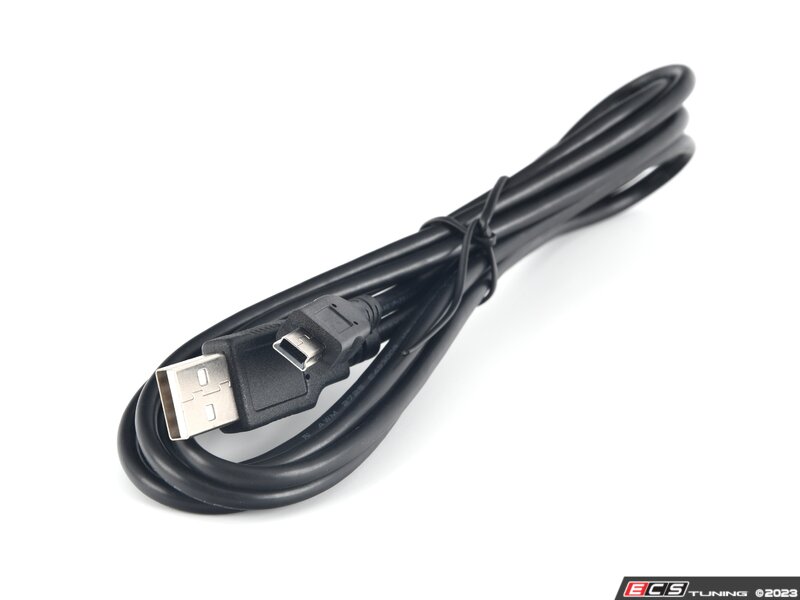

Programming is done over a USB interface with the TunerPro RT engine management software which provides real-time programming, data dashboard and data logging. More information on TunerPro RT is available here. Bin files contain program data. Xdf definition files configure the user interface. Adx files configure data acquisition for real-time display and logging. Example bin, xdf and adx files are available from the downloads section of splitsec.com.
Two-dimensional map tables provide precise fuel control over load and RPM. Additional tables facilitate compensation for elevation, air temperature and injector dead time. Map switching can be performed by on-board comparators or user input.
An extremely versatile tach input is compatible with most engine speed signals. User definable pre-scaler and post-scalers produce an accurate tach reading on virtually any engine. The number of injection pulses per engine cycle are selectable between one and eight.
The AIC2-6 is used in conjunction with your MAP or MAF sensors to calibrate.
Legal only for racing vehicles which may never be used upon a highway.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
