QuickJack 8000TLX Extended Vehicle Lift Package - 110 Volt (60Hz)
- Mfg Part #
- 5176113
- ECS Part #
- ES#4905814
- Brand
-
Product Details
This QuickJack package deal includes the 8000TLX extended vehicle lift, a set of QuickJack wall hangers (ES4355758), and an SUV & Light Truck Adapter set (ES3509552).

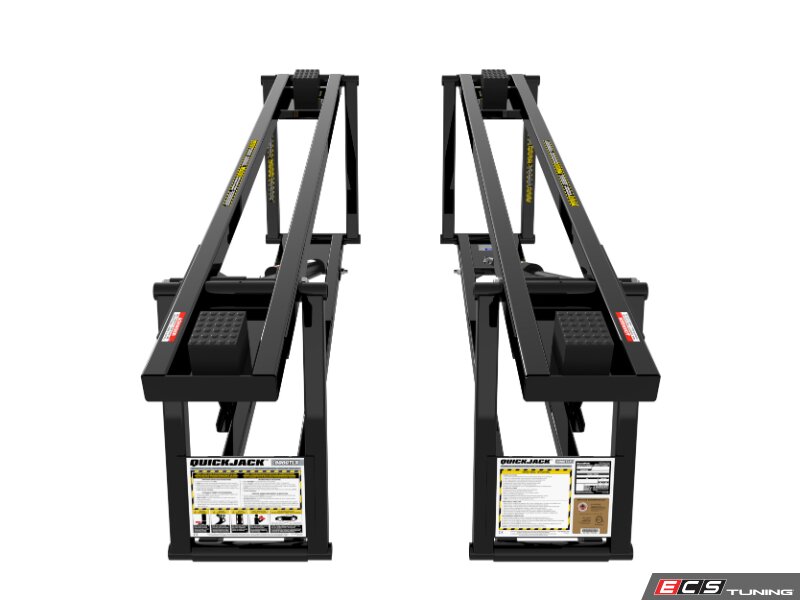

The 8000TLX extended vehicle lift has a maximum lifting capacity of 8,000-lb. It is the highly anticipated sequel to QuickJack's beloved 7000TLX. With the ability to lift an extra 3-inches, the 8000TLX portable car lift provides more room to tackle every repair and maintenance task on vehicles weighing up to 8,000 lbs. The longer frames and 66" lift point make this kit perfect for larger SUVs and trucks. It also takes seconds to get up and running following initial one-time assembly. Just drop it on the ground and hook up the power. As soon as the jack frames and rubber blocks are in place under your vehicle, it'll be at a work-ready height in no time at all.
Working in a garage can become troublesome when stuck with only a jack and a few jack stands. Not only are jack-stands very unsteady at raised heights, it also requires the long, tedious process of raising each corner individually. Eliminate this issue with a vehicle lift that is unlike any other lifting system you have seen! QuickJack can raise your vehicle with the push of a button, raising your vehicle to the lift's maximum height in just seconds. This allows you complete access to service your vehicle's suspension, drivetrain, and underbody, without any crossbeams to get in your way. Also, keeping safety paramount, QuickJack uses rugged, welded steel construction for strength and rock-solid stability, and features auto-locking bars that lock the lift and vehicle at a set height until you are finished. This ensures the lift will never fail with you underneath, standing up to the toughest real-world garage and track conditions.
Through superior engineering and design, QuickJack has been able to produce an extra 3-inches of lifting height without sacrificing the overall dimensions that have made QuickJack a must-have in your garage. 8000TLX still has an impressive 3.5" lowered height, 76" overall length, and 12.5" overall width.
**INTERNATIONAL CUSTOMERS NOTE** We are unfortunately unable to offer QuickJack internationally at this time. All international orders will be cancelled.
Features:
- Automatic safety locks

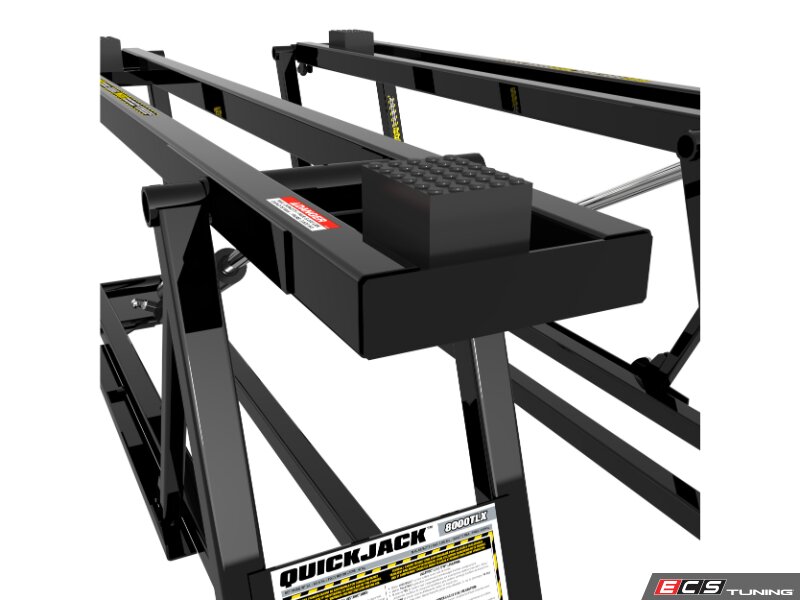

- Features dual-position automatic safety locks on each TL frame. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your car lift is ready for a smooth descent.
- Increased lifting height
- QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.
- One-handed operation
- By holding the pendant control in one hand, your other hand is totally free. No cranking or bending during lifting.
- Accessories to increase versatility
- Most QuickJack accessories were developed from customer suggestions and needs. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.
Includes:
- 8000TLXLeft Frame Assembly
- 8000TLX Right Frame Assembly
- 1x Hydraulic power unit with control
- 4x Medium rubber lift blocks (2")
- 4x Tall rubber lift blocks (3")
- 2x Short hydraulic hoses
- 2x Long hydraulic hoses
- 2x Frame-positioning handles
- Fittings and thread tape for setup
- Instruction manual
Not Included With Standard Frame Set:
- Up to 3 liters of Automatic Transmission Fluid
- Air source to inflate air cylinders up to 50 PSI
- Assembly tools
Specifications:
- Lifting capacity
- 8,000 lbs. (3,628 kg)
- Lowered height
- Frame only: 3.5" (89 mm)
- With 2" block: 4" (102 mm)
- Lifting height
- With 2" block: 21.5" (546 mm)
- With 3" block: 22.5" (572 mm)
- Max. height: 24.5" (622 mm)
- With adapters: 24.5" (622 mm)
- With adapters + pin: 27" (686 mm)
- Lift point spread
- Maximum: 66" (1676 mm)
- Minimum: 43" (1092 mm)
- Frame dimensions (ea.)
- Width: 12.5" (318 mm)
- Length: 76" (1930 mm)
- Height (lowered): 3.5" (89 mm)
- Other specs
- Time to full rise: 30 seconds
- Power unit weight: 15 lbs. (7 kg)
- Shipping dimensions (ea. frame):
- 73.75" (L) x 16.75" (W) x 6.25" (H)
- (1,872 mm x 425 mm x 155 mm)
- Shipping weight: 304 lbs. (138 kg) (Note: QuickJack is shipped in three boxes)
- 5175361
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | All | All | All | Use vehicle selector to confirm fitment |
| BMW | All | All | All | Use vehicle selector to confirm fitment |
| Mercedes Benz | All | All | All | Use vehicle selector to confirm fitment |
| MINI | All | All | All | Use vehicle selector to confirm fitment |
| Porsche | All | All | All | Use vehicle selector to confirm fitment |
| Volkswagen | All | All | All | Use vehicle selector to confirm fitment |
