QuickJack 7000TL - 7,000 Lb. Capacity - 110 Volt (60Hz) - (NO LONGER AVAILABLE)

The 7000TL has a maximum lifting capacity of 7,000-lb. It is the highly-anticipated sequel to the most popular automotive tool to ever hit the home garage or auto repair shop. With the ability to lift an extra 3-inches, the 7000TL portable car lift provides more room to tackle every repair and maintenance task on vehicles weighing up to 7,000-lbs. It also takes seconds to get up and running following initial one-time assembly. Just drop it on the ground and hook-up the power. As soon as the jack frames and rubber blocks are in place under your vehicle, it'll be at a work-ready height in no time at all.

Working in a garage can become troublesome when stuck with only a jack and a few jack stands. Not only are jack-stands very unsteady at raised heights, it also requires the long, tedious process of raising each corner individually. Eliminate this issue with a vehicle lift that is unlike any other lifting system you have seen! QuickJack can raise your vehicle with the push of a button, raising your vehicle to the lift's maximum height in just seconds. This allows you complete access to service your vehicle's suspension, drivetrain, and under body, without any crossbeams to get in your way. Also, keeping safety paramount, QuickJack uses rugged, welded steel construction for strength and rock solid stability, and features auto-locking bars that lock the lift and vehicle at a set height until you are finished. This ensures the lift will never fail with you underneath, standing up to the toughest real-world garage and track conditions.

**INTERNATIONAL CUSTOMERS NOTE** We are unfortunately unable to offer QuickJack internationally at this time. All international orders will be cancelled.

Features:

• Automatic safety locks
  • The QuickJack 7000TL features automatic safety locks on each TL frame that engage at two positions. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your truck lift is ready for a smooth descent.
• Increased lifting height
  • All QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.
• One-handed operation
  • Simple one-handed controls are really as easy as a push of a button to lift and lower your QuickJack 7000TL. No cranking or bending during lifting.
• Accessories to increase versatility
  • Most QuickJack accessories were developed from customer suggestions and needs. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.

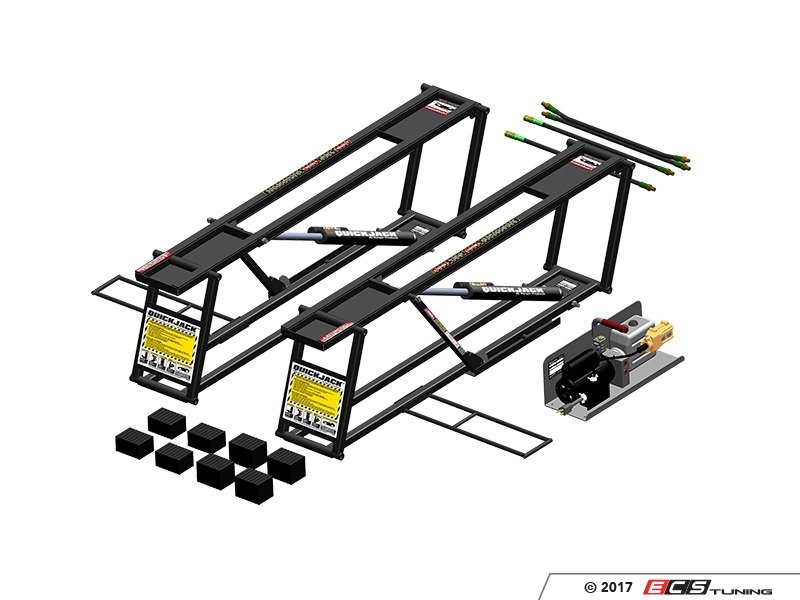

Includes:

• 7000TL Left Frame Assembly
• 7000TL Right Frame Assembly
• 1x Hydraulic power unit with control
• 4x Medium rubber lift blocks (2")
• 4x Tall rubber lift blocks (3")
• 2x Short hydraulic hoses
• 2x Long hydraulic hoses
• 2x Frame-positioning handles
• Fittings and thread tape for setup
• Instruction manual

Not Included With Standard Frame Set:

• Up to 3 liters of Automatic Transmission Fluid
• Air source to inflate air cylinders up to 50 PSI
• Assembly tools

Specifications:

• Lifting capacity
  • 7,000 lbs. (2,268 kg)
• Lowered height
  • Frame only: 3.5" (89 mm)
  • With 2" block: 4" (102 mm)
• Lifting height
  • With 2" block: 21.5" (546 mm)
  • With 3" block: 22.5" (572 mm)
  • Max. height: 24.5" (622 mm)
  • With adapters: 24.25" (610 mm)
  • With adapters + pin: 27" (686 mm)
• Lift point spread
  • Maximum: 60" (1,524 mm)
  • Minimum: 37" (940 mm)
• Frame dimensions (ea.)
  • Width: 12.5" (318 mm)
  • Length: 70.75" (1,797 mm)
  • Height (lowered): 3.5" (89 mm)
  • Weight: 98 lbs. (45 kg)
• Other specs
  • Time to full rise: 30 seconds
  • Power unit weight: 15 lbs. (7 kg)
  • Shipping dimensions (ea. frame):
    • 73.75" (L) x 16.75" (W) x 6.25" (H)
    • (1,872 mm x 425 mm x 155 mm)
  • Shipping weight: 280 lbs. (127 kg)
