Multi-Pump Fuel Surge Tank (MPFST)
- Mfg Part #
- 20-1440
- ECS Part #
- ES#4820337
- Brand
-
Free Shipping
Product Details
2024 Radium Engineering MPFST: The Ultimate Fuel Surge Solution for High-Power Vehicles
The 2024 redesign of the Radium Engineering MPFST addresses fuel starvation in high-power vehicles during aggressive driving. This innovative surge tank supports multiple high-flowing fuel pumps to ensure consistent performance.
New Features
The latest MPFST model introduces several new features in addition to its previous capabilities:
- Supports up to 3 Bosch BR540 (DW400) fuel pumps
- Supports up to 2 Ti Automotive E5LM brushless pumps
- Supports up to 3 brushless Bosch pumps (DW440)
- Anti-rotation electrical terminals

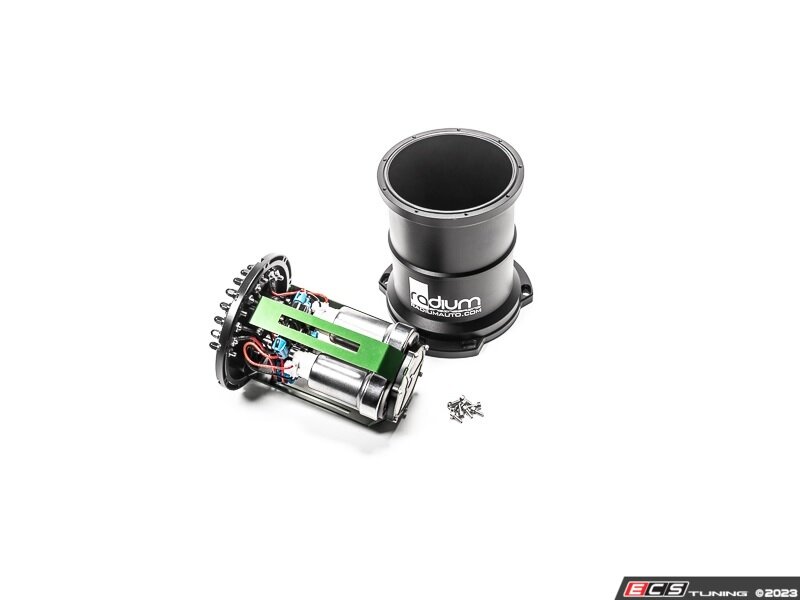

Fuel pump outlets merge into a single outlet to simplify external plumbing. Compatible pumps come with check valves, enabling staging. The brushless Ti Automotive E5LM MPFST includes these check valves (shown in green).
Fuel Pump Outlet

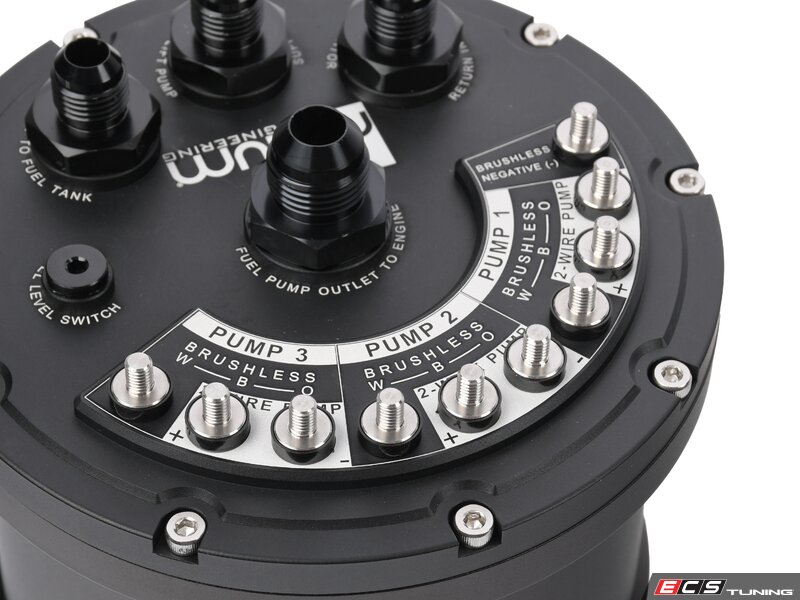

The "FUEL PUMP OUTLET" port is 10AN ORB threaded, pre-installed with a -8AN male adapter fitting. The "OVERFLOW," "SUPPLY," and "RETURN" ports are 8AN ORB threaded with pre-installed -6AN male adapter fittings. These fittings are interchangeable (sold separately).
Swirl Pot Design
Fuel entering through the "SUPPLY" and "RETURN" ports runs tangentially through the canister, creating a swirl pot to eliminate air bubbles and fuel foam, enhancing fuel pump and engine performance.
Installation and Compatibility

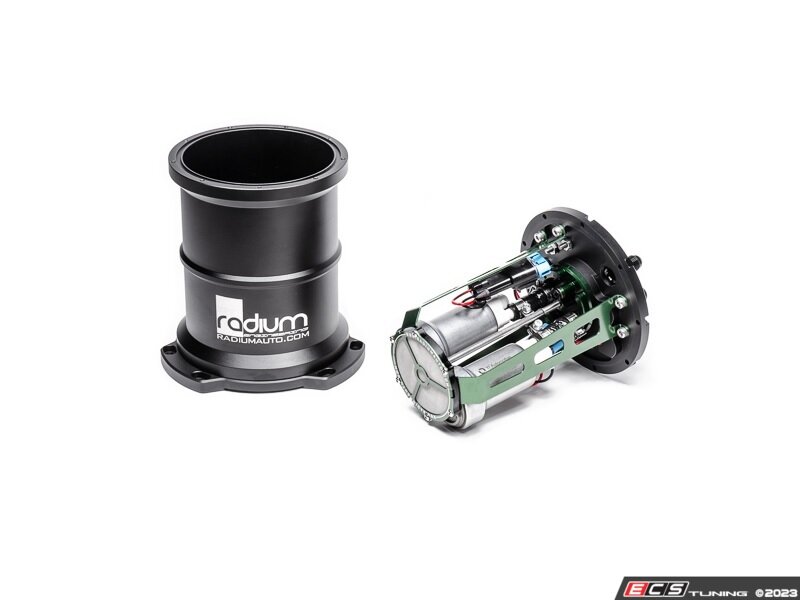

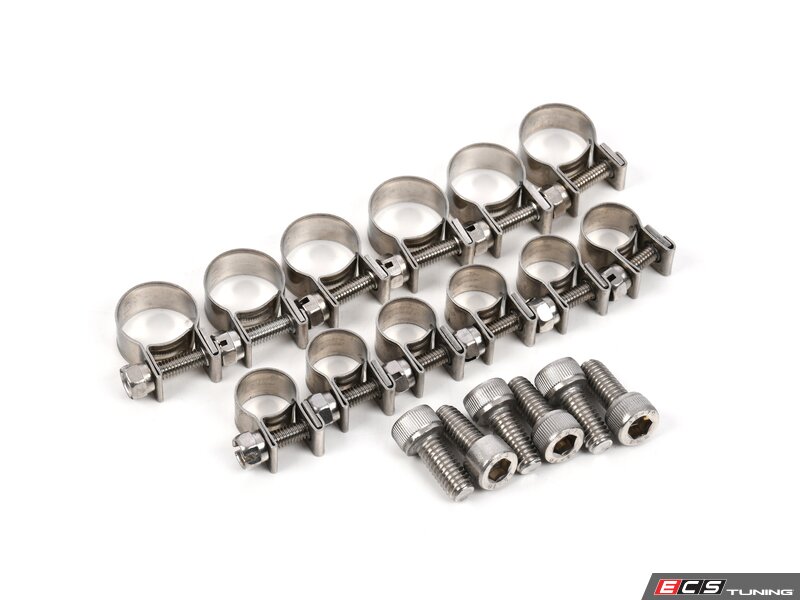

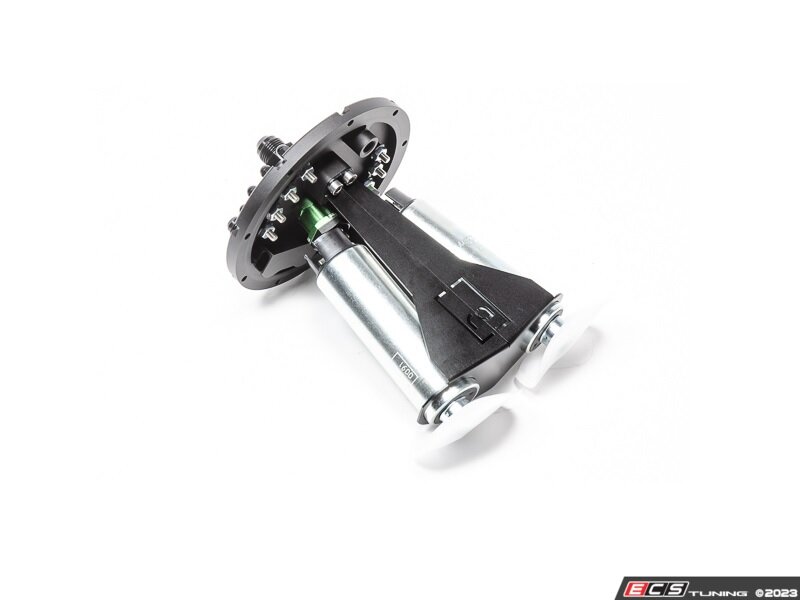

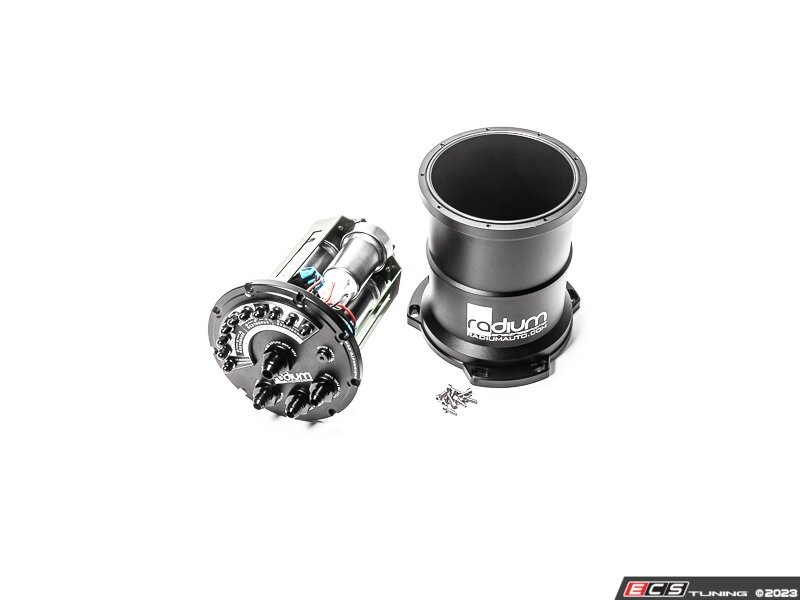

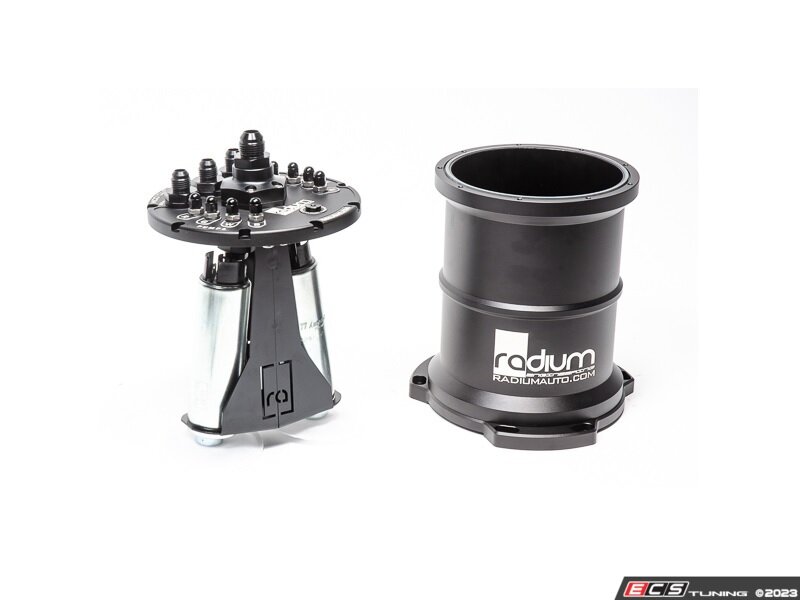

Pumps are mounted using an anodized aluminum bracket, and internal wires are compliant with gasoline, ethanol, and methanol. The brushless Ti Automotive E5LM MPFST uses a standard press-in filter sock, while other pumps use a stainless steel mesh inlet screen for pre-pump filtration. The tank's underside is designed for uneven surfaces, commonly found in vehicle trunks. Stainless steel M6x1.0mm socket head bolts are included for custom mounting.
Model and Pump Compatibility
20-1440 MPFST
- Compatible pumps: Walbro GSS342, AEM 50-1200, Deatschwerks DW440
- Note: Less than 3 pumps do not require blocking off the empty port.
20-1441 MPFST
- Compatible pumps: Bosch BR540 (DW400), Deatschwerks DW440
20-1442 MPFST
- Compatible pumps: Walbro F90000267, F90000274, F90000285, F90000295
20-0443-00 MPFST
- Compatible pumps: Ti Automotive E5LM
- Supports 1 or 2 pumps
Optional Features
Fuel Level Switch (20-0461)
- Standard with a 2AN ORB plug in the "level switch" port.
- Can be installed when the plug is unscrewed.
- Sends a signal when the MPFST fuel level drops by 20% or more.
- Constructed of corrosion-resistant stainless steel, compatible with all fuel types.
- Includes 24" long, 20AWG flying leads.
- Not compatible with 3 Bosch BR540 or 3 Deatschwerks DW400 pumps.
Fuel Level Switch Plus Diagnostic Indicator (20-0519)
- Provides a visual reference for fuel level.
- The signal is sent directly to the LED when the switch is triggered.
- Useful for diagnosing fueling issues.

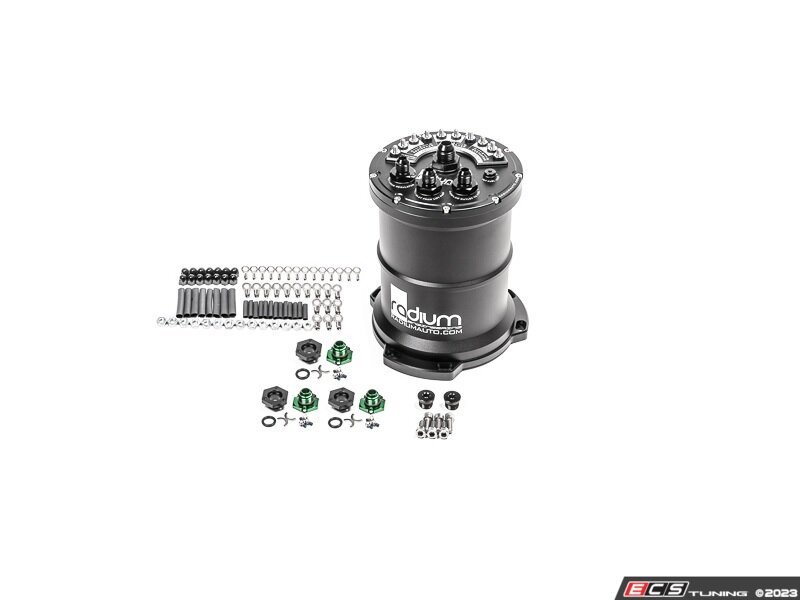

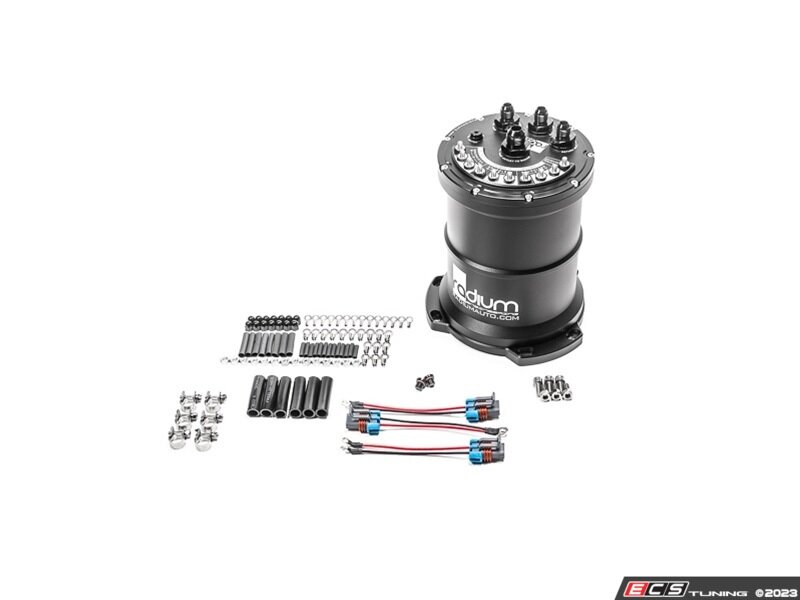

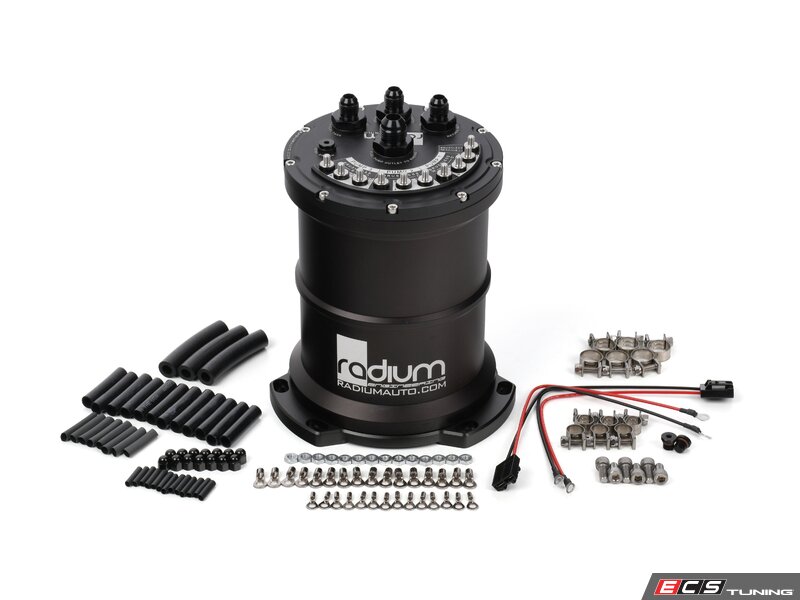

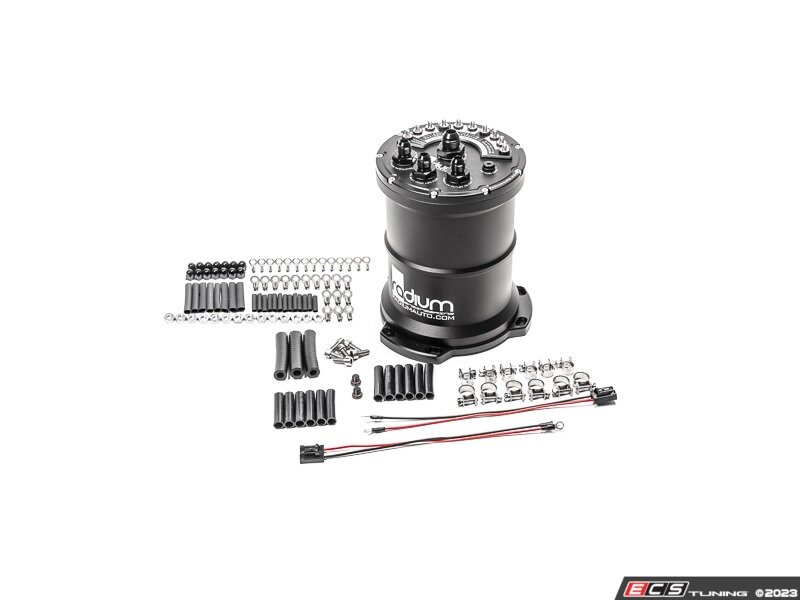

This comprehensive MPFST package offers flexibility for end-users to install 1, 2, or 3 pumps, ensuring high performance and reliability.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
