Wheel Spacer & Stud Conversion Kit - Pair (For Two Wheels)

Make wheel changes quicker and easier, while giving your wheels the space they need - 12mm Spacers / 70mm Studs
Pair of spacers with 10 studs/nuts - To be used with Porsche factory wheels or wheels that use R14 ball seat bolts/nuts
Mfg Part #
ECS Part #
Free Shipping Free Shipping
Availability: Back Ordered, No ETA
Auto Notify
Does this fit my vehicle?

Product Details

Pair of spacers with 10 studs/nuts - To be used with Porsche factory wheels or wheels that use R14 ball seat bolts/nuts

Wheel Spacers:

Use these wheel spacers to widen the track width of your vehicle, or to clear your brake calipers when running narrower-offset wheels. Precision engineered in-house, manufactured from lightweight aluminum, and then anodized black for good looks and corrosion resistance.

Wheel Studs:

Make changing out your wheels faster and easier with a stud conversion. This gives you permanent wheel hangers and saves you time!  In order to add wheel studs to your hubs, simply screw in the supplied studs and you are in business.

 Why use wheel studs instead of wheel bolts?

  • Wheel studs are required by many racing bodies because they are a safer way to ensure proper wheel-to-hub contact.
  • Wheel studs allow the use of different length spacers, or no spacers at all.  Lug bolts require custom lengths per spacer application.
  • Installing wheels using wheel studs is much easier than using wheel bolts, as the studs will locate the wheel while the nuts secure the wheel.
  • Wheel studs stay in the hub. The constant installation and removal of wheel bolts can cause accelerated wear on the bolt holes in the hubs.

This complete conversion kit for two wheels includes one pair of spacers, 56mm extended-length wheel studs, and R14 Ball Set Lug Nuts.

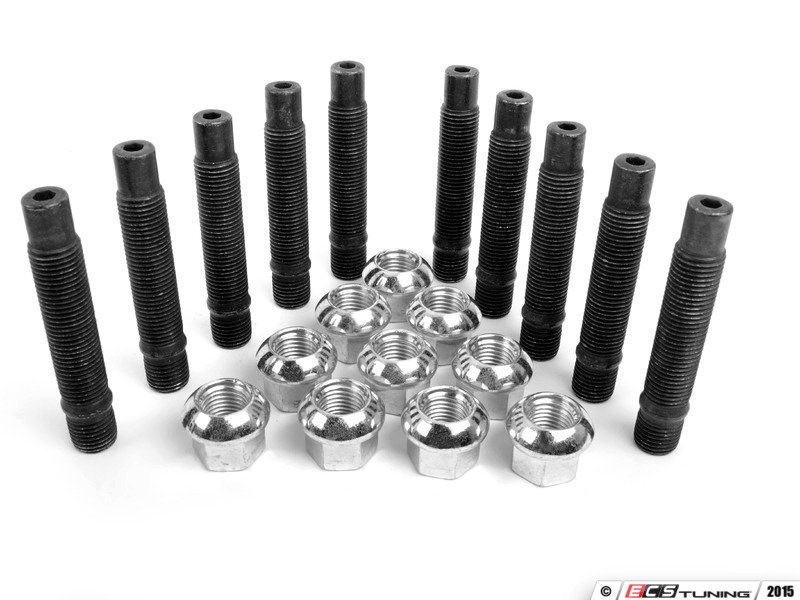

Kit Contents:

  • 12mm Wheel Spacers (Pair - For two wheels)
  • M14x1.5x70mm Extended-Length Wheel Studs (qty 10 - For two wheels)
  • M14x1.5 19mm head R14 Ball Seat Nut (qty 10 - For two wheels)


*Note:  Thread-locking compound is recommended during installation.  Studs should be torqued to 15Nm.

This Part Fits the Following Vehicles

Make Model Submodel Engine Year Chasis
Porsche All All All All 970
Porsche All All All All 986
Porsche All All All All 987
Porsche All All All All 996
Porsche All All All All 996t
Porsche All All All All 997
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

Kit Contents

Description Brand Qty
M14x1.5 19mm Head Ball Seat Nut (28mm Ball Diameter - R14 ball radius) ECS - Corporate Logo 10
Wheel Stud - 14x1.5x70mm - Priced each ECS - Corporate Logo 10
12mm Rennline Wheel Spacers - Pair Rennline - Corporate Logo 1
