Axle Installation Kit

Easily install axles with tight tolerances into the hub assembly!
Mfg Part #
ECS Part #
$172.95 (Sale - Save 15%)
Free Shipping Free Shipping
on orders $49 and up
Availability: In Stock
Does this fit my vehicle?

Product Details

Simple This tool set is used to insert the front drive axle on many BMW, MINI ,VAG, Porsche Cayenne, Renault, Mercedes and more.

Product Description

  • These vehicles have strict tolerances between the drive shaft splines and the wheel hub, you must use the special tool like this Schwaben tool for assembly work
  • This insertion tool can be simple and quickly get the drive shaft fitted into the wheel hub.
  • With wide application in various specifications for drive shaft.
  • Mainly used for VW-Audi (Touareg etc.), Mercedes, BMW, MINI, Porsche (Cayenne etc.), Peugeot, Renault, Opel/Vauxhall, etc
  • Simple to use , select correct spindle tool, screw onto the drive shaft install collar and pull drive shaft in.

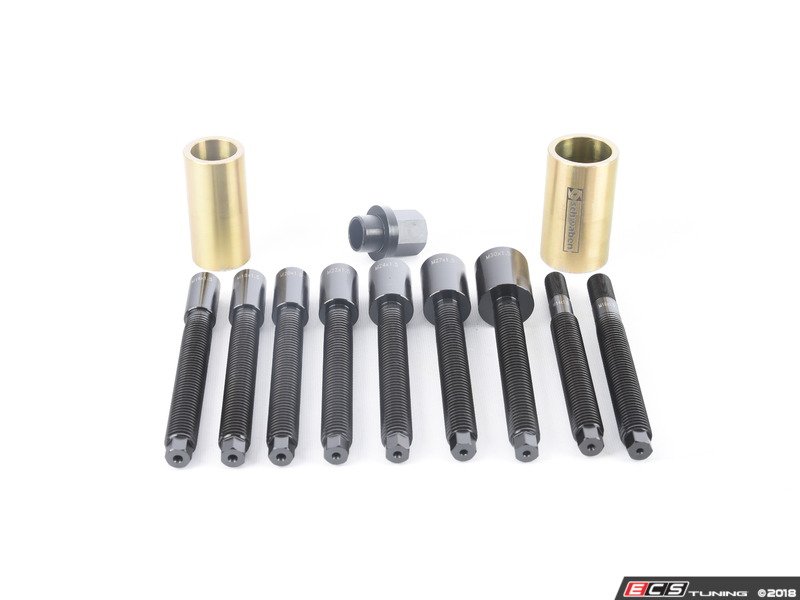

    • Kit Contains:

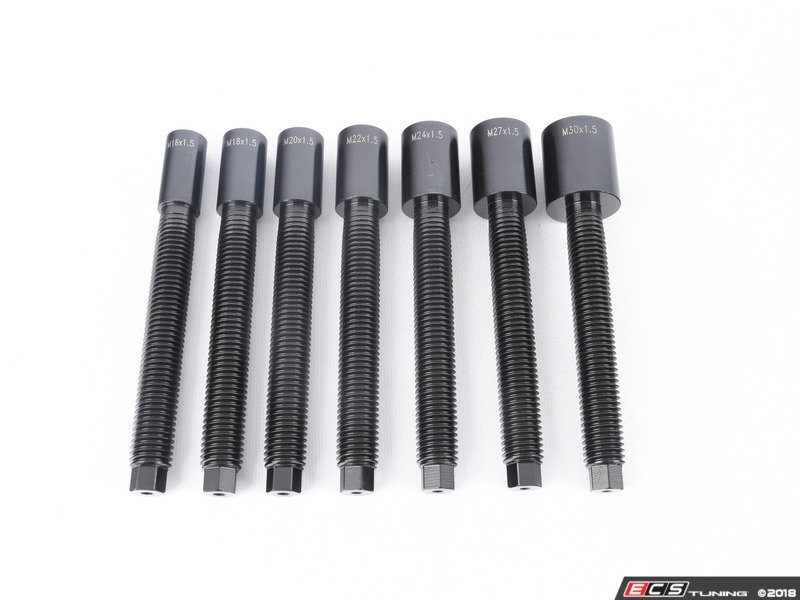

      • 9 Spindles,
      • M16 X 1.5 Inner thread
      • M18 X 1.5 inner thread
      • M20 X 1.5 inner thread
      • M22 X 1.5 inner thread (Most common for MINI Coopers R50-R61)
      • M24 X 1.5 inner thread
      • M27 X 1.5 inner thread
      • M30 X1.5  inner thread

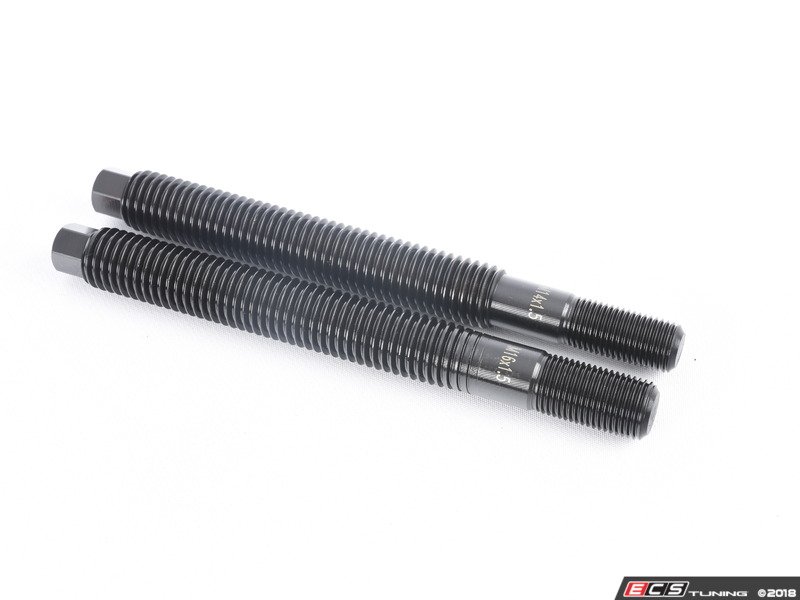

      • M14 X 1.5 outer thread
      • M16 X 1.5 outer thread (Most common for MINI Coopers F55+)

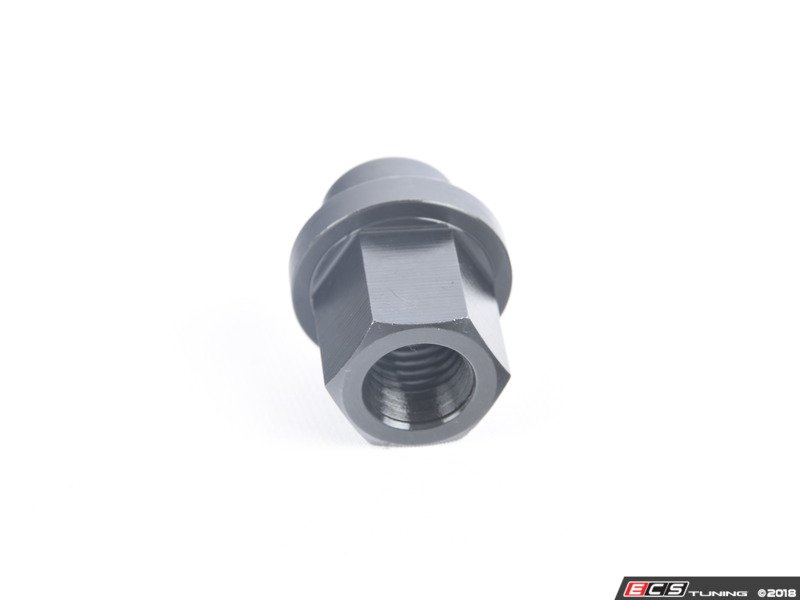

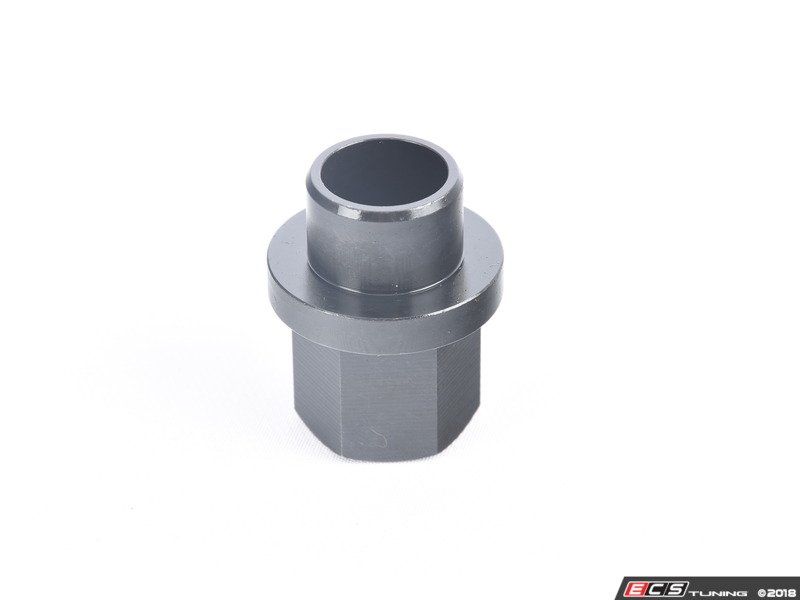

      • 1- Shoulder Nut

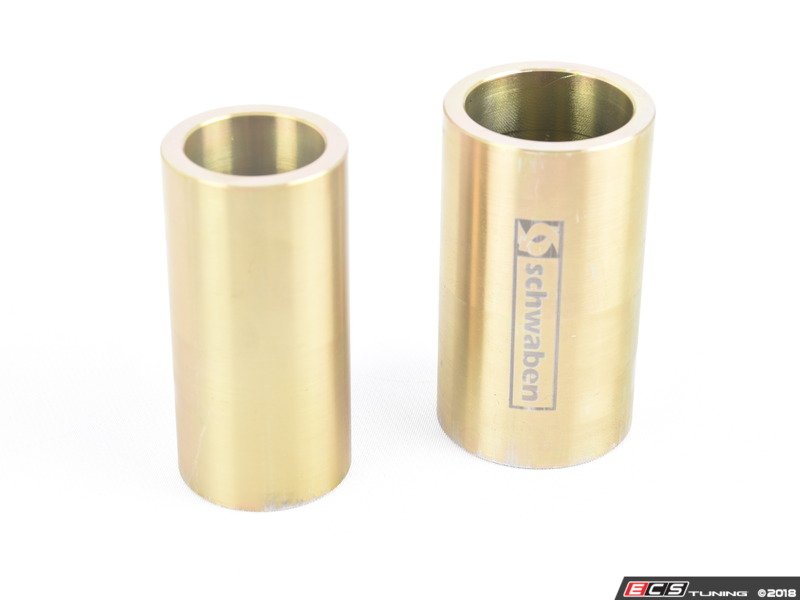

      • Housing bushing 39mm outer X 29mm inner
      • Housing bushing 46mm outer X 36mm inner
      • Blow Molded case



Cross Reference
  • Klann, KL-0177-2, KL-0177-3

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi All All All
BMW All All All
Mercedes Benz All All All
MINI All All All
Porsche All All All
Volkswagen All All All
