S34 SuperDuper Insuction Bundle *Scratch And Dent*
- Mfg Part #
- 034-108-5046
- ECS Part #
- ES#5395781
- Brand
-
This product was last offered at the strikethrough price on
05-02-2026
Product Details
***S&D NOTE: Missing Components - Sold As Is - See photos prior to ordering - ALL SALES FINAL***
034Motorsport's SuperDuper S34 Carbon Fiber Intake System delivers improved power, sound, and acceleration to Audi B9/B9.5 S4/S5 owners within a clean, cost-effective package.
Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the SuperDuper S34 Carbon Fiber Intake delivers measurable performance benefits and superb fitment. The result is an optimized open-airbox design that integrates a fresh air duct inlet to channel cool outside air to the filter. This large open-airbox design allows for a massive 5" inlet conical air filter with integrated velocity stack, free of restrictive shrouding, and channels air through a CFD-optimized 4-ply silicone inlet hose that smoothly increases air velocity to the SuperDuper Turbo Inlet. The SuperDuper S34 Carbon Fiber Intake System offers measurable performance improvements, simple bolt-on installation, and unsurpassed fit and finish.
The SuperDuper S34 Carbon Fiber Intake System is designed with an easily upgradable and modular design, and is supplied with components able to easily support 1000+ horsepower on the turbos of tomorrow. This modular design will allow the base structure of the S34 intake to easily be adapted to any future turbocharger size and combination. Expect to see more from 034Motorsport in the future with upgraded components to match larger turbocharger applications!
The SuperDuper S34 Carbon Fiber Intake System offers measurable performance improvements, simple bolt-on installation, and unsurpassed fit and finish.
SuperDuper S34 CARBON FIBER INTAKE SYSTEM FEATURES:
- Developed In-House by 034Motorsport's Engineering Team
- Fits Both Left and Right Hand Drive Configurations

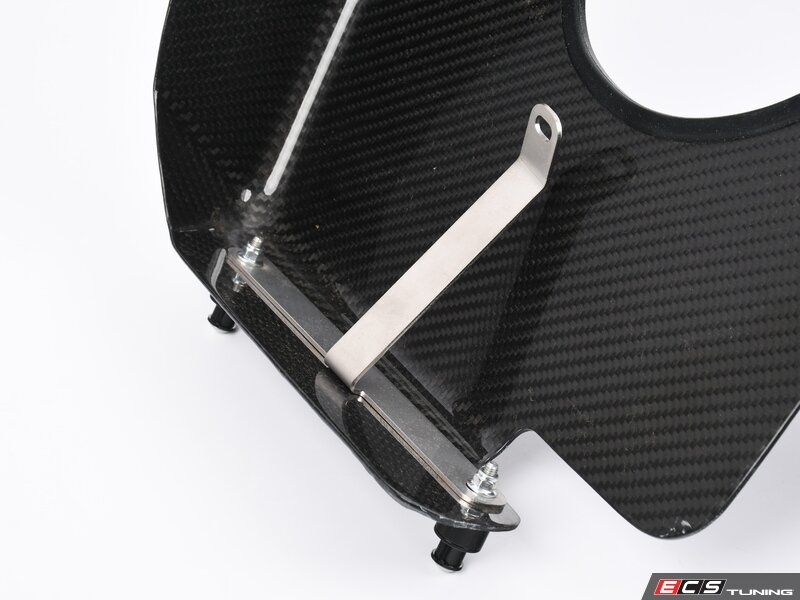

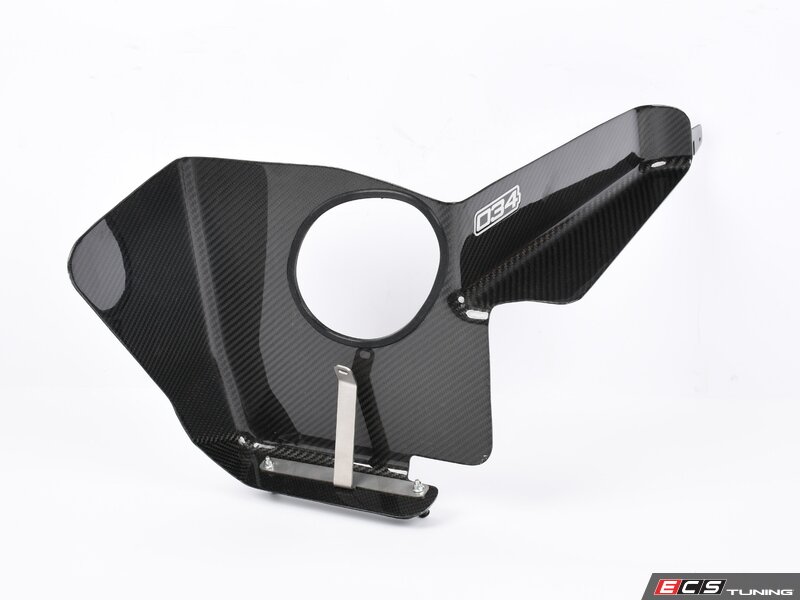

- High-Quality Carbon Fiber Air Block-off Shield
- High-Gloss Epoxy Finish
- 4-Ply Gloss Black Silicone Intake Tube
- OEM+ Fit and Finish
- No Rubbing or Excessive Movement
- Dyno-Proven Horsepower Torque Gains
- Improved Airflow Over Factory Airbox and Intake Tube, and Turbo Inlet
- Enhanced Engine Induction Sounds
- Improved Throttle Response
- Large 5" Inlet Conical Pleated Cotton Air Filter
- Reduced Intake Air Temperature

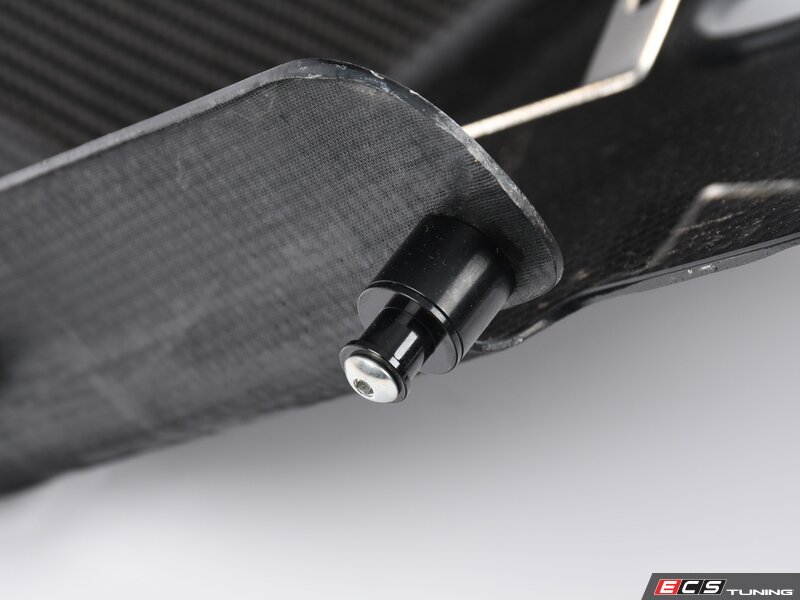

- Securely Installs Using Factory Mounting Grommets
- Simple, Straightforward Installation Instructions
MINIMIZING UNNECESSARY FILTER SHROUDING:
034Motorsport focuses on optimizing every aspect of the intake system across a broad range of variables and compromises. A critical component of a high-flowing performance intake is the ability for air to flow around and into the filter. If the air cannot flow freely around the filter, it will be restricted from getting into it.
Many aftermarket kits fit too large of a filter in an enclosure that cannot accommodate its size, thus choking the filter and reducing its overall flow. This often happens when a product is engineered for one variable at the expense of others. 034Motorsport conducted extensive tests and refined its development of the intake design to allow for maximum airflow surrounding the air filter, allowing for optimal airflow to, and through, the filter.
The final result is the right size filter in the right size filter housing, creating maximum airflow and performance with OEM level filtering; the ultimate goal of any intake system. Be cautious of any intake that brags only of air filter size, without taking into account the detrimental effects of shrouding the filter.
MAXIMIZING AIRFLOW:
034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion/sound deadening hose. Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tube while being mindful of space constraints.
The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the throttle body.

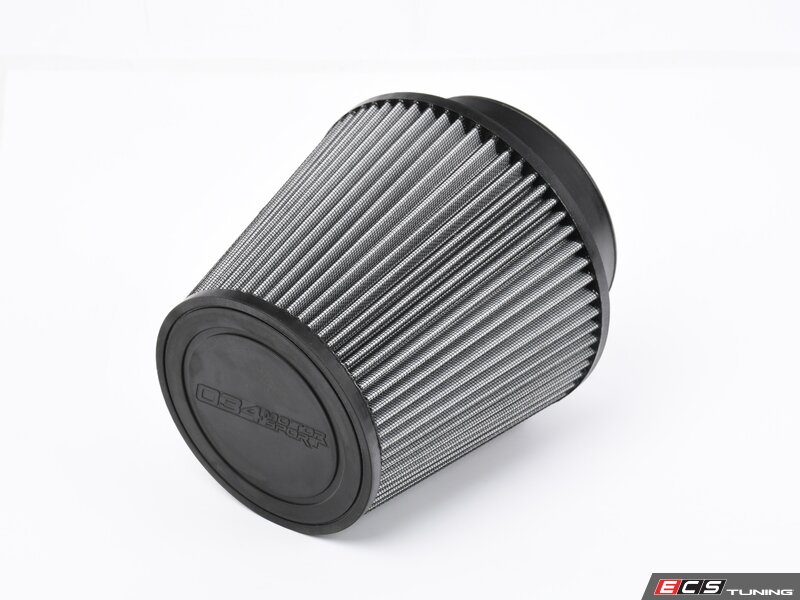

PERFORMANCE AIR FILTER:
The S34 Intakes house a high-flow conical air filter with a double-layer pleated cotton filtration medium, capable of trapping particles as small as 5 Microns. This air filter design offers increased flow through an enlarged filtration surface while ensuring superior filtration. 034 has tested this air filter in applications over 800HP with minimal restriction, and superior OEM quality air filtration.
While many intake kits leave the air filter unsupported and ”flopping” around, 034Motorsport engineers designed a clever air filter support that not only prevents unwanted movement but also allows compliance to accommodate engine movement under varying load conditions. An added benefit is an air shroud that doesn’t move and rub on other engine compartment components like many other designs on the market do.
SuperDuper TURBO INLET FEATURES:
The 034Motorsport SuperDuper Turbo Inlet Pipe is required to use the SuperDuper S34 Carbon Fiber Intake System and is an essential upgrade to optimize power by eliminating a critical flow restriction in the intake tract when running the Factory Turbocharger or Stage 3 Hybrid Turbochargers with accompanying tuning for the most performance possible!
- Cast from A356 Aluminum
- Compressor Inlet Flange Adapter Machined for Smooth Airflow Into Compressor Housing
- CNC Machined 6061-T6 Aluminum Turbo Inlet Adapter to Match Turbo Inlet for Maximum Airflow
- Optional Adapter Rings Available
- Increased Flow Over Factory Turbo Inlet
- CNC Machined
- Edge Retains Intake Coupler Securely
- Retain OE PCV Hose
- To Retain Factory Wiring Harness Retention Clips
- Proven Power/Torque, and Airflow Gains
- Slotted Lower Turbo Inlet Bolt for Easy Installation
- Direct Bolt-on Installation.

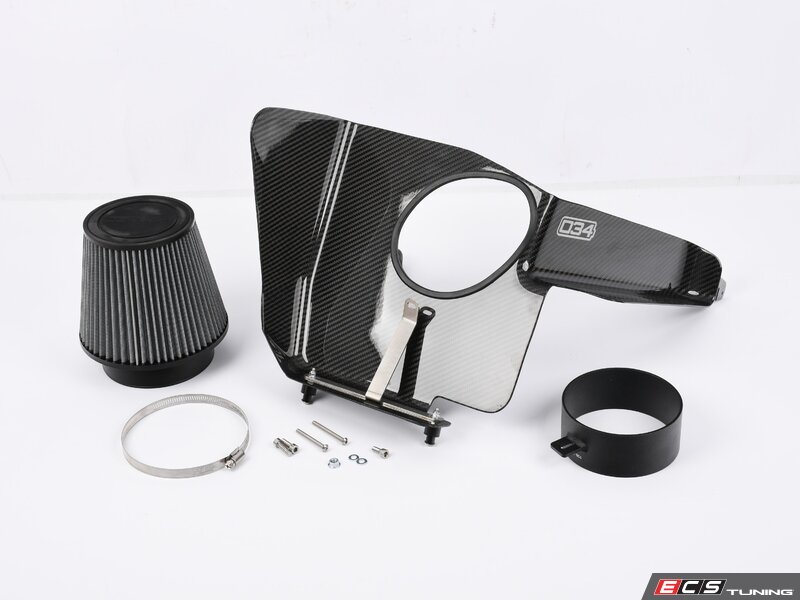

WHAT'S INCLUDED:
- SuperDuper S34 Insuction Bundle
- SuperDuper S34 Carbon Fiber Intake System
- SuperDuper Turbo Inlet

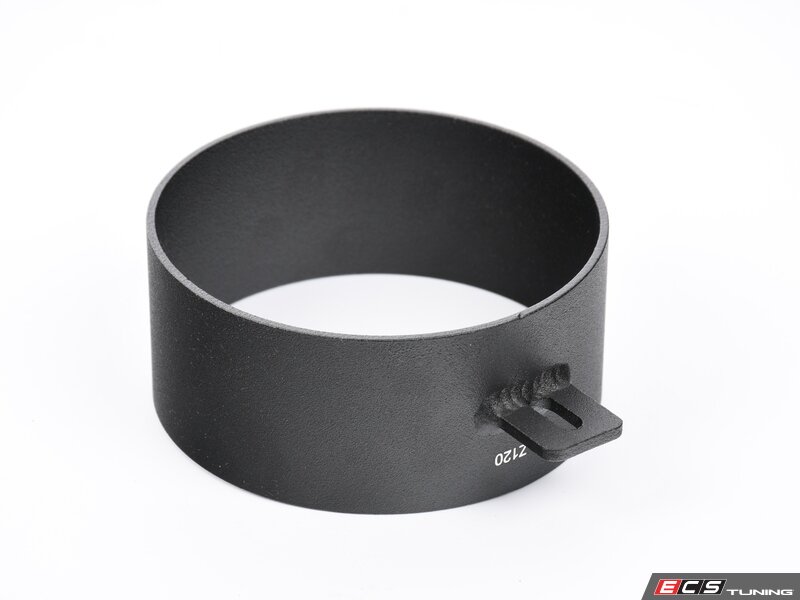

- Stock Turbo Adapter Ring
EMISSIONS DISCLAIMER:
- This product is sold for racing use as well as use on vehicles not registered for on highway use.
- By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
CFM GAINS:
CFM stands for "cubic feet per minute" of airflow, the higher the number, the higher the horsepower an intake can support, at 034Motorsport they design intakes to have substantial flow increases over the factory intake, 034 tests all their intakes at 28" of water (how much vacuum is used to suck air through the intake) on a Superflow airflow bench which gives us very accurate and repeatable test results.
- Stock Intake & Turbo Inlet: 394 CFM @ 28” H²O
- S34 Intake and SuperDuper Turbo Inlet with 66mm TTE710/TTE810 Adapter Ring: 564 CFM @ 28” H²O
- S34 Intake with No Turbo Inlet: 1000 CFM @ 28” H²O
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B9 S4 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T Sportback | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T Cabriolet | Use vehicle selector to confirm fitment |
