Adjustable Toe Arms

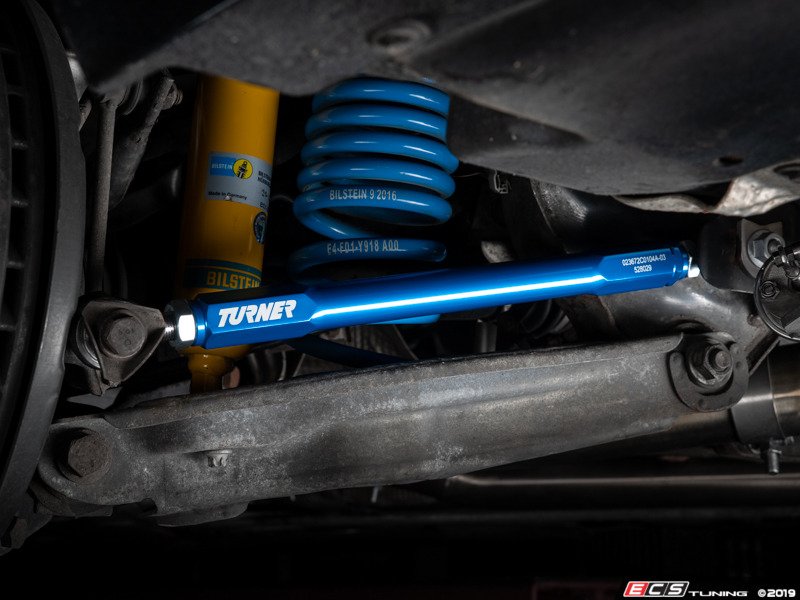

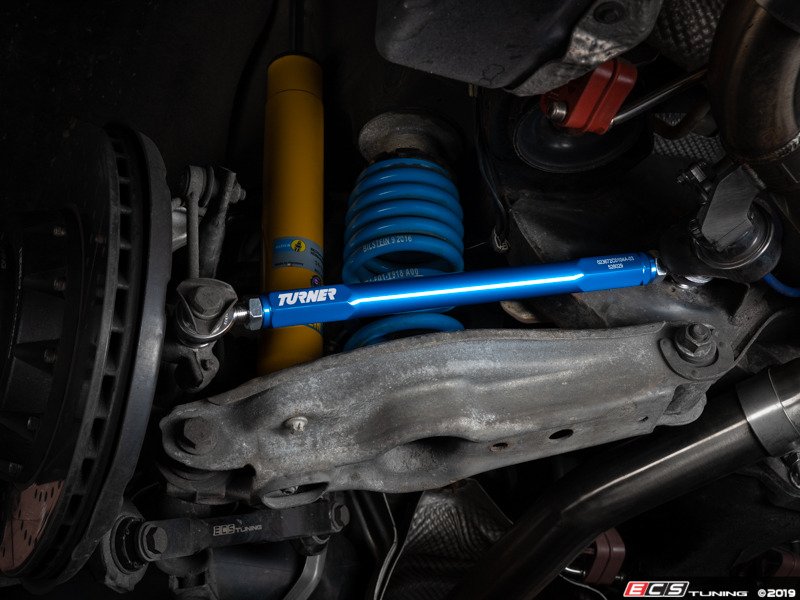

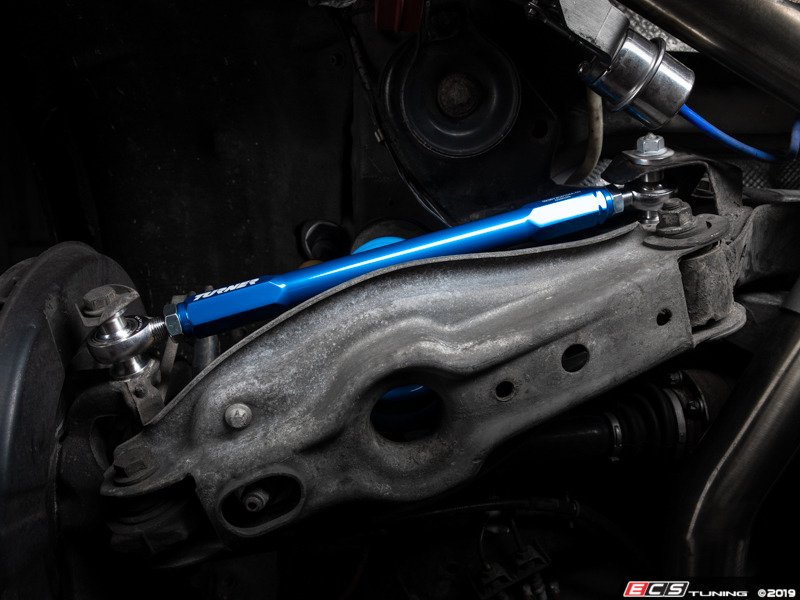

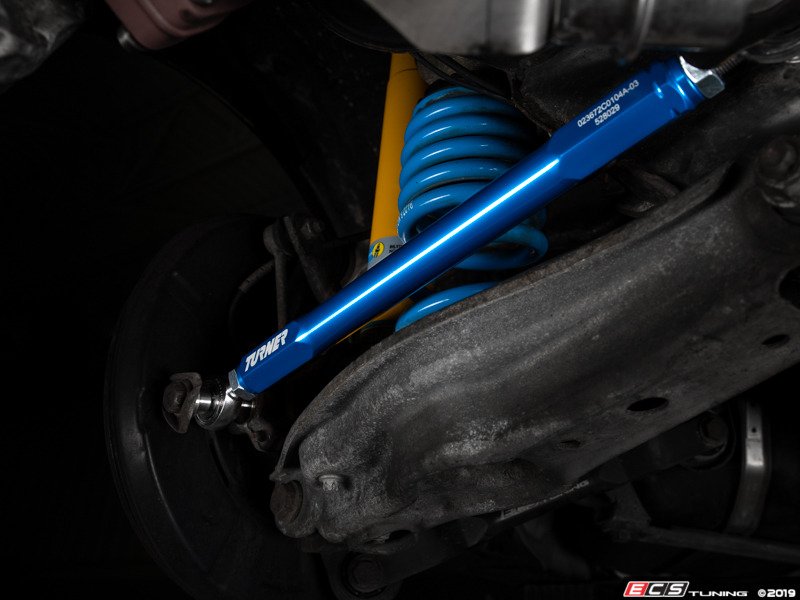

Eliminate the factory eccentric toe adjustment point to get rid of any unwanted movement or play in your rear end. Easy to adjust Turn Buckles and FK Rod Ends increase your range of toe adjustment in the rear.
Turner Motorsport
ES#:
4045814
Mfg#:
018139TMS03
Select Your Vehicle

Adjustable Toe Arms

Qty
Starting at: $314.95 314.95
Free Shipping Free Shipping
on orders $49 and up
Availability: In Stock
Add to Wish List

Select Options

all options
E82/E9X Non-M Adjustable Toe Arms - FK Bearing Stainless Steel Rod Ends
4045817 018139TMS11
In Stock
397.95
Yes, Please!
Rod End Boot 14-18mm - Single
4033264 RERS3-1
Expected Ship Date: Sep 28, 2021
8.95
4

Product Details

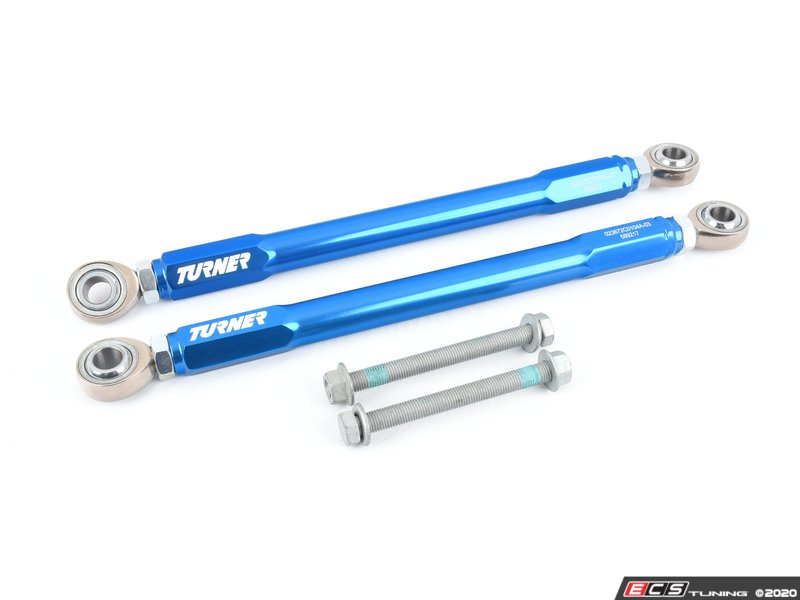

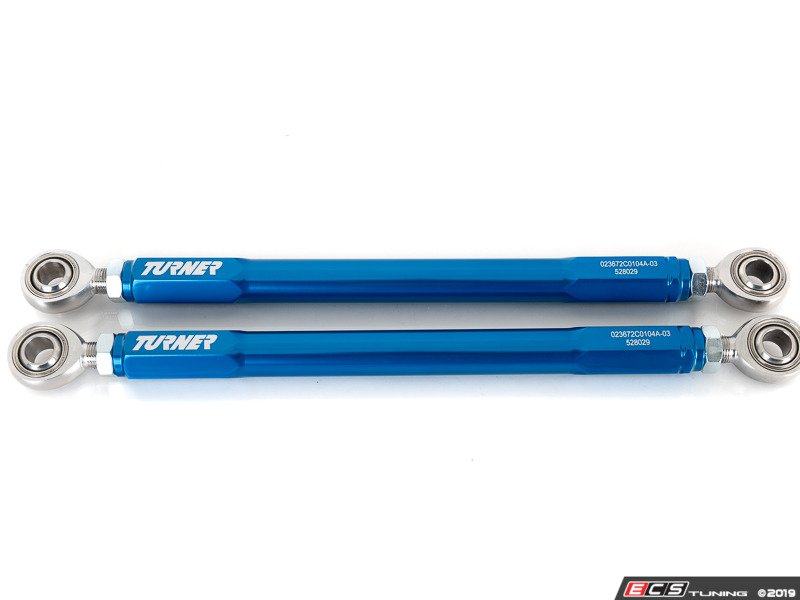

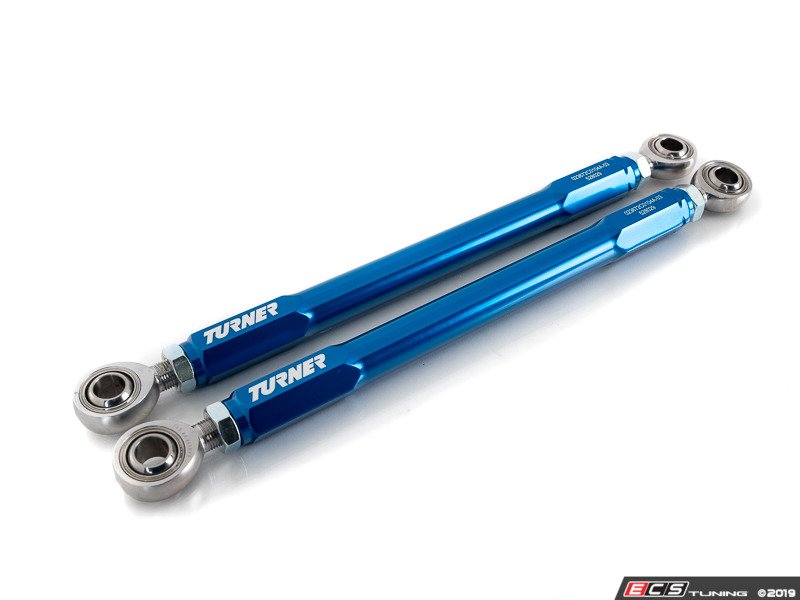

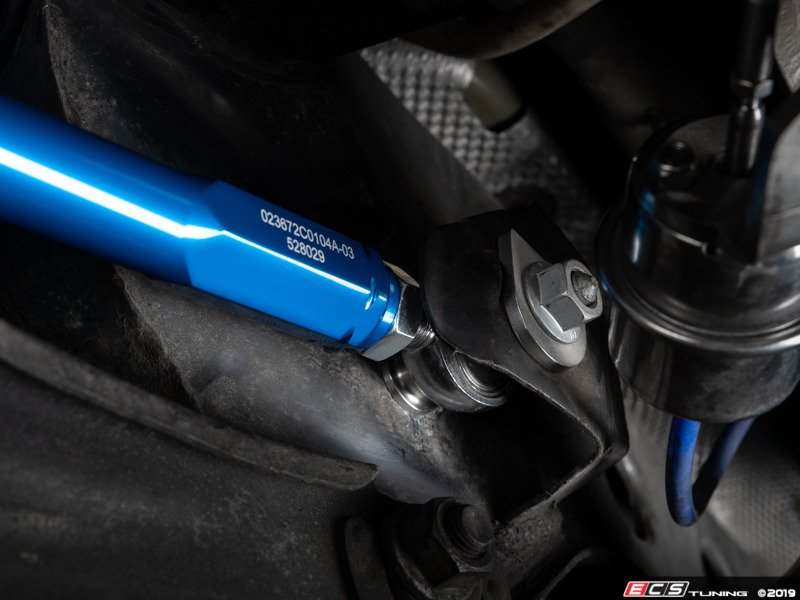

The folks at Turner Motorsport took it upon themselves to design a quality Toe Arm upgrade from scratch. Starting with Precision CNC machined billet 6061-T6 aluminum gun-drilled turn-buckle tubes, anodized in the signature “Turner Blue” for corrosion protection. These Rods are grooved on the left hand threaded side to make adjustments even easier.

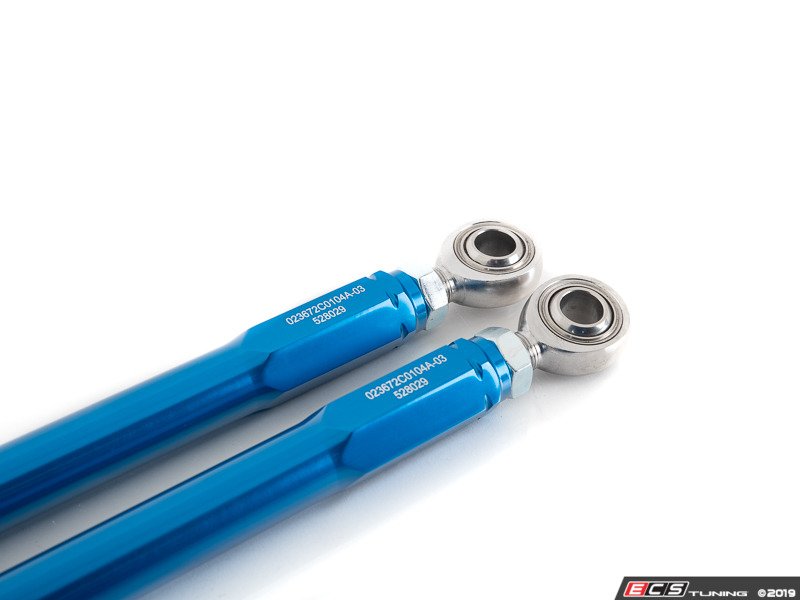

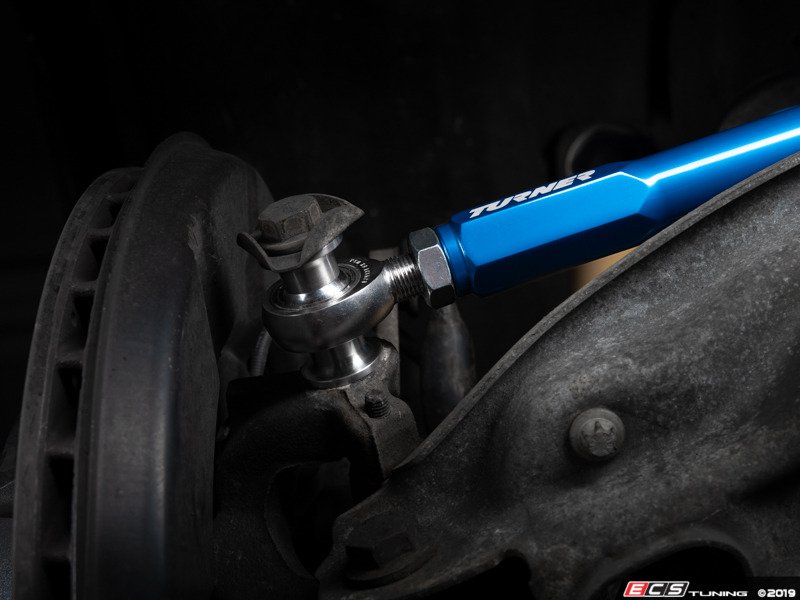

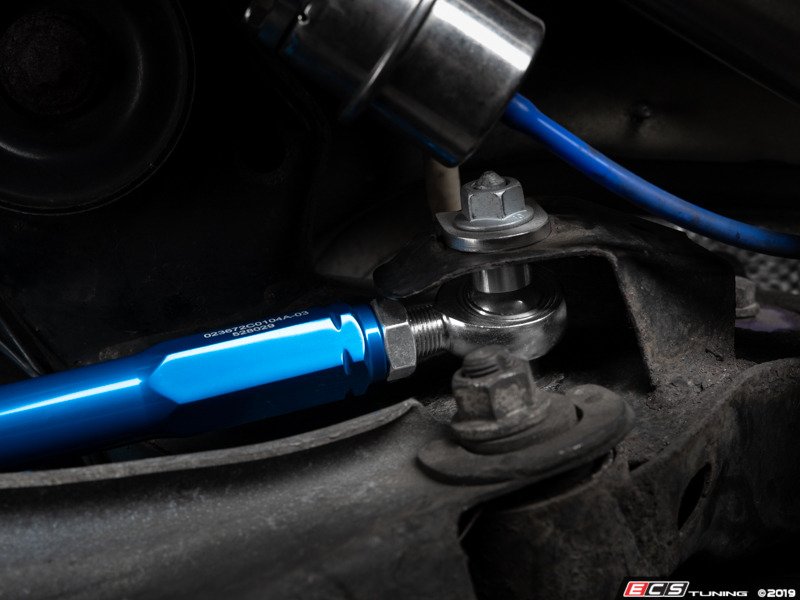

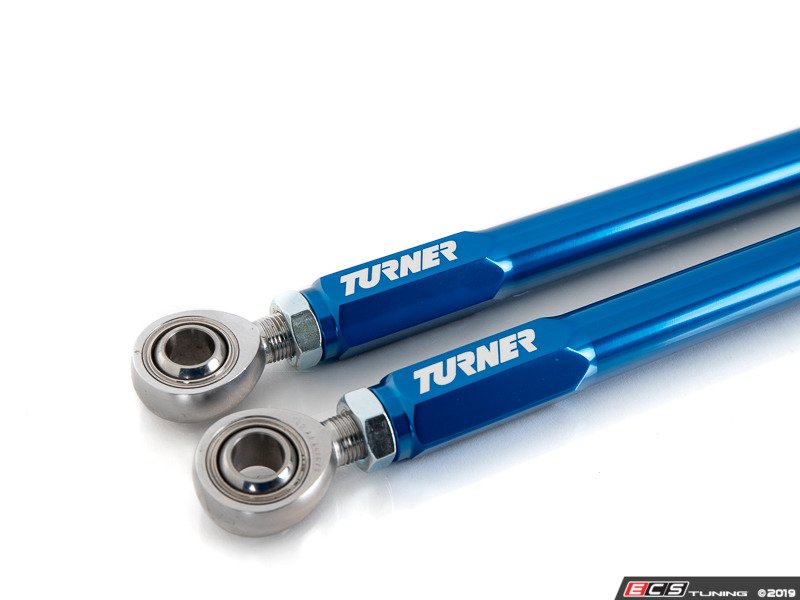

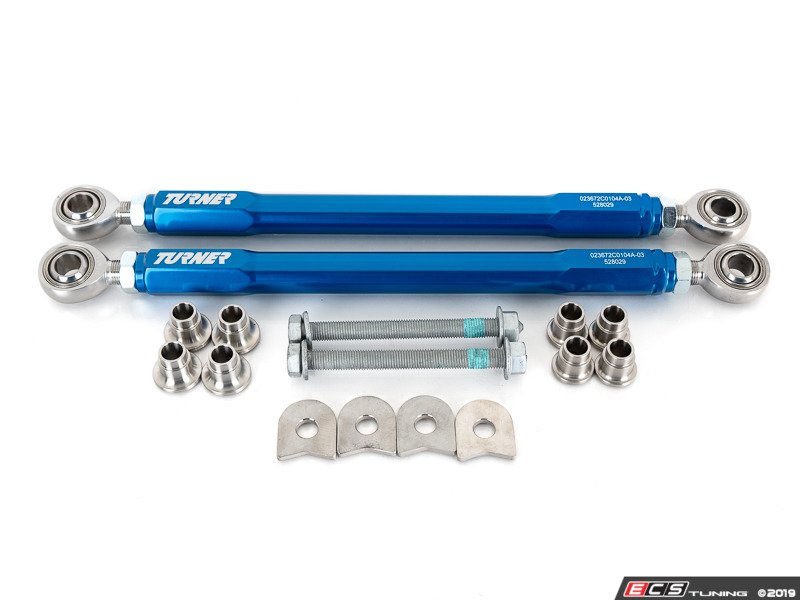

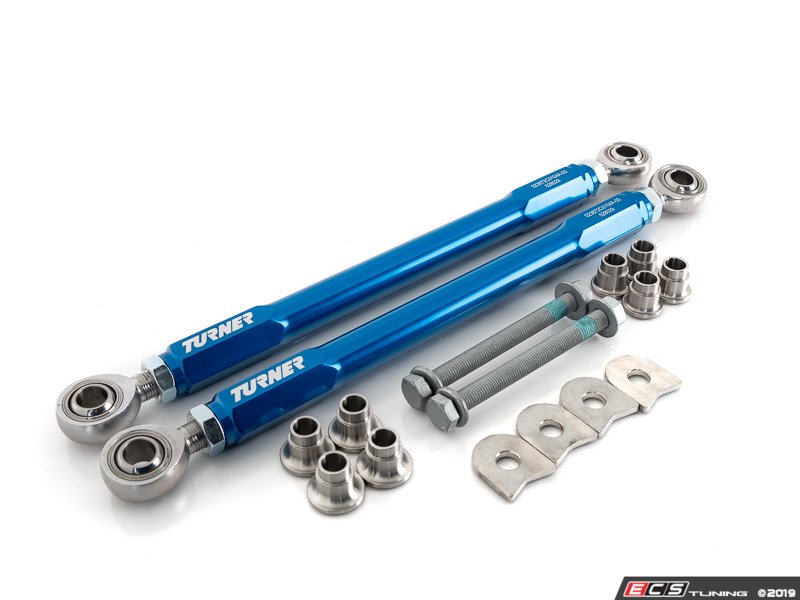

Featuring Stainless Steel lockout plates, this eliminates the cumbersome factory eccentric toe adjustment point and eliminates any unwanted movement. Stainless steel lock-out washers and rod-end bushing inserts come standard for superior corrosion resistance.  Sporting your choice of American made Heavy-duty FK rod ends, available in 2 finish/material options. FK Rod Ends highlight left and right threads for fast and precise adjustment, & all FK Rod Ends come PTFE Lined for low friction and long wear. These FK Bearing Rod Ends are top of the line American made bearings, for maximum lifespan and performance. Add the Silicone Rod End Boots to further protect the Rod End bearings from the elements and corrosion.

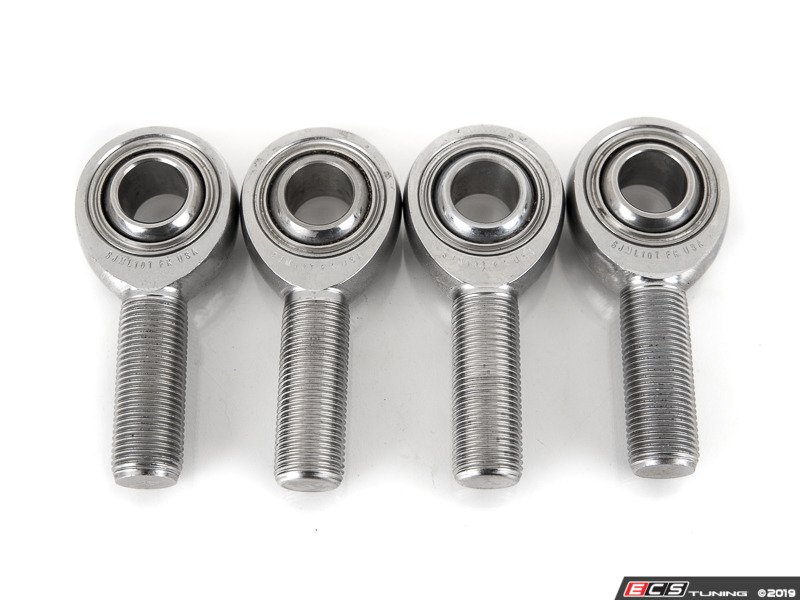

  • FK Bearing Nickel Plated Rod End option:

    • Corrosion resistant

    • Alloy steel body, heat treated, Electroless nickel plated

    • Hard chrome plated 52100 steel ball



  • FK Bearing Stainless Steel Rod End option:

    • Best corrosion resistance

    • 17-4 heat treated stainless steel body

    • 400 Series heat treated ball



Performance Features:


  • Greater range of toe adjustment for lowered cars or for performance alignments

  • Improved vehicle stability and response through reduced link and bushing deflection during hard cornering

  • Eliminates unwanted suspension deflection by eliminating stock rubber bushings for more precise alignment setting and handling

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW E82 128i N52 3.0L
BMW E82 135i N54 3.0L
BMW E82 135i N55 3.0L
BMW E88 128i N52 3.0L
BMW E88 135i N54 3.0L
BMW E88 135i N55 3.0L
BMW E90 325i N52 3.0L
BMW E90 325xi N52 3.0L
BMW E90 328i N52 3.0L
BMW E90 328xi N52 3.0L
BMW E90 330i N52 3.0L
BMW E90 330xi N52 3.0L
BMW E90 335i N54 3.0L
BMW E90 335i N55 3.0L
BMW E90 335xi N54 3.0L
BMW E90 335xi N55 3.0L
BMW E92 328i N52 3.0L
BMW E92 328xi N52 3.0L
BMW E92 335i N54 3.0L
BMW E92 335i N55 3.0L
BMW E92 335is N54 3.0L
BMW E92 335xi N54 3.0L
BMW E92 335xi N55 3.0L
BMW E93 328i N52 3.0L
BMW E93 335i N54 3.0L
BMW E93 335i N55 3.0L
BMW E93 335is N54 3.0L
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.
