Turner Adjustable Short Shift Kit

Knob height and throw adjustable to achieve the perfect shifting experience for any driver!
Turner Motorsport
ES#:
3612945
Mfg#:
013264TMS10
Select Your Vehicle

Turner Adjustable Short Shift Kit

Qty
Starting at: $269.96 269.96
Sale Save 10%
Free Shipping Free Shipping
In Stock
Add to Wish List

Select Options

all options
Turner Rally Shift Lever - Black Anodized
Upgrade to a taller shift lever to keep your hands closer to the wheel
3552906 013264TMS02-01
On Order, ETA Jan 3, 2019
Sale SAVE 5% $59.95
56.95
Turner Rally Shift Lever - Clear Anodized
Upgrade to a taller shift lever to keep your hands closer to the wheel
3559757 013264TMS02-02
On Order, ETA Jan 3, 2019
Sale SAVE 5% $59.95
56.95
Yes, I'd like to replace the rest of the bushings in my shifter linkage with poly and delrin.
3619801 PBTSRKTN54XI
Ships in 1 day
129.95

Product Details

When it comes to having the perfect shifter in your car everything comes down to the owners preference, making it extremely difficult when choosing the correct short throw shifter for your car.

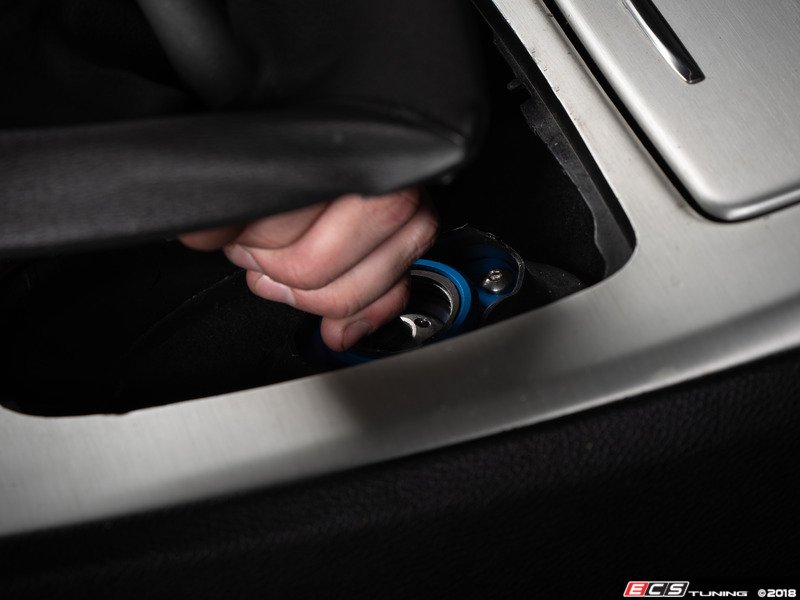

Turner Motorsport recognizes this issue and has come up with the perfect solution!  Turners in-house engineering team has developed a revolutionary short shifter kit that not only allows for throw adjustment, but also for shift knob height adjustment, allowing you to fine tune the shifter to fit your needs. The best part, all adjustments can be made from the drivers seat; simply lift up the shifter boot to access the shift knob adjustment and throw adjustment screws.  The Turner short throw kit also has an optional "rally" style shift lever.  This taller shift lever features a billlet aluminum design with a delrin shift knob, perfect for track days, aggressive daily driving, or someone who just wants to stand out.

Performance features

  • Ultra crisp shifter feel
  • Adjustable between a conservative short throw to ultra short throw
  • Quick, precise shifting
  • More engaging driving experience

Easy installation and swap out​

  • Bearing cup allows for easy installation from inside of the car (on applications that use the stock shifter arm).
  • “Quick Change” height adjustable upper shift lever design allows for quick swapping between optional “OE” style and “Rally Style” upper shift levers.

Adjustments

  • Independently adjustable knob height
    • 22mm adjustment range to fine tune shifter throw and feel.
    • Note: knob height also affects throw reduction to some degree
  • Independently adjustable shifter throw
    • Adjustable by raising and lowering the lower lever position relative to the pivot ball.
    • Note: ball position also affects knob height by ~10mm range
  • Combined total throw adjustment range
    • ​50 to 64% reduction in throw over stock E9X 335i, E8X 135i shifter
  • Throw adjustment can be done in the car without removing the shifter
    • Throw adjustment is accomplished by loosening set screw in shifter ball and rotating the ball within the cap using a couple of simple tools.

Design Features

  • Lower Shifter Assembly
    • CNC machined from 4140 chromoly steel and melonite coated for superior strength and exceptional durability and corrosion resistance.
    • Shifter ball CNC machined from 304 stainless steel, finely polished for smooth operation and bushing wear resistance.
    • Ball socket shifter bushings are precision machined from Nylatron® NSM.
      • self-lubricating and offers better wear resistance and impact resistance than other “premium” bearing grade plastics.
      • Provides a positive shifter feel that never fades because of worn out bearings or bushings.
      • Precision tolerance fitment in the bearing cup eliminates unwanted ball socket movement.
    • Lower selector rod bushings precision machined from Nylatron® NSM
      • Precision fit tolerance on the selector rod to eliminate shifter linkage play.
      • Provides the ultimate in low friction, self-lubrication, wear resistance and impact resistance compared to other “premium” bearing grade plastics.
    • Lower shift arm has an adjustment range of 10mm to dial in the throw and feel of your shifter.
      • Lower shift lever is locked in place by tightening provided set screw in the stainless steel ball.

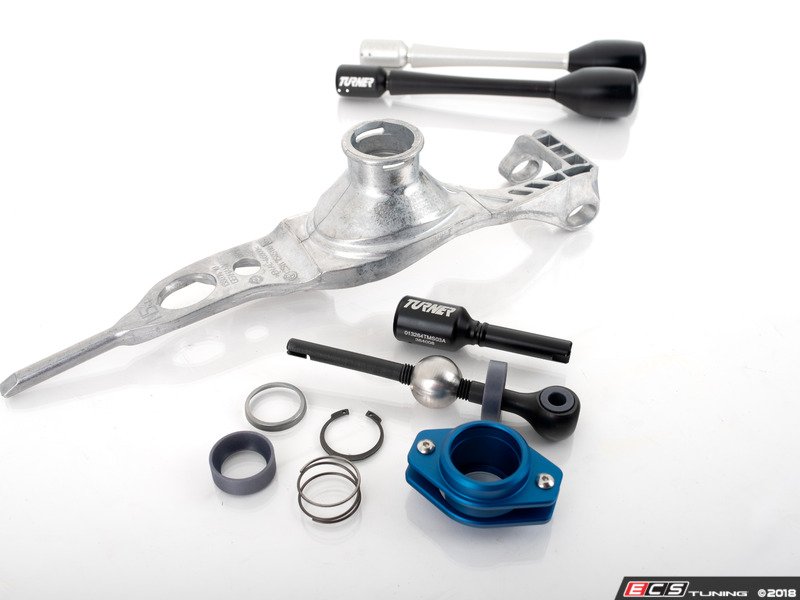

  • Rally Upper Shift Lever
    • Compatible with stock shift boot fits nicely into the machined groove at the bottom of the lever to maintain a clean look in the interior.
    • Machined from 6061-T6 aluminum and type II anodized for exceptional durability and corrosion resistance.
      • Available in either black or clear anodize to match your vehicle’s interior.
    • Rally shift knob is machined from black delrin.
      • Unlike aluminum, delrin will not hold heat so on those hot days you won’t have to worry about burning your hand on a knob that’s been baking in the sun.
      • Shift knob is threaded onto the end of the shift lever utilizing a standard ⅜-16 thread to allow for easy removal and attachment of your favorite beer tap or other accessory.
    • “Quick Change” height adjustable upper shift lever design allows for quick swapping between optional “OE” style and “Rally Style” upper shift levers.
      • 22mm adjustment range to fine tune shifter throw and feel.



  • Standard Shift Lever
    • Compatible with OE BMW shift knobs or aftermarket shift knobs.
    • CNC machined from billet 6061-T6 aluminum and type II black anodized for exceptional durability and corrosion resistance.
    • “Quick Change” height adjustable upper shift lever design allows for quick swapping between optional “OE” style and “Rally Style” upper shift levers.
      • 22mm adjustment range to fine tune shifter throw and feel.



  • Shifter Bearing Cup Assembly
    • CNC machined from billet 6061-T6 aluminum and type II blue anodized for exceptional durability and corrosion resistance.
    • Shifter cup encapsulates shifter components allowing for easy installation from inside of the car.
      • Bushings, lower shifter assembly, spring, retaining washer and snap ring can be easily installed inside the cup before installing in vehicle.
      • Cup installs into OE shifter arm with supplied clamp and socket head cap screws.
        • Installation can be done from inside the car without having to remove the OE shifter arm to install screws from the side.
    • Shifter bushings and cup are machined to tight tolerances to eliminate slop or play in the shifter assembly for a positive shifter feel.

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW E82 135i N54 3.0L
BMW E88 135i N54 3.0L
BMW E90 335i N54 3.0L
BMW E92 335i N54 3.0L
BMW E92 335is N54 3.0L
BMW E93 335i N54 3.0L
BMW E93 335is N54 3.0L
