UNIFLEX SOFTWARE:

Unitronic FLEX fuel enabled ECU Performance Software Calibrations are available for this platform allowing for seamless transitions between 100% gasoline to 85% ethanol and anything in between, without requiring an ECU reflash. This FLEX enabled Software is available for an additional fee and it covers all lower stages up until your highest purchased stage as well. UniFLEX Hardware is required in order to take advantage of these FLEX enabled calibrations. Please contact Unitronic or your local Authorized Dealer to learn more.


Features

• Engineered with Strict Industry Standards
  With over 10 years of experience with Bosch and Siemens engine management systems and calibrations, Unitronic is able to utilize its expertise, industry leading tools and equipment to ensure an optimal calibration; delivering maximum performance, while maintaining complete OEM-like reliability and drivability.
• Extensively Tested Under Various Driving Conditions
  Development begins using Unitronic’s in-house Maha Chassis dyno housed in an environmentally controlled cell; closely monitoring a plethora of operational data, utilizing industry leading calibration tools and resources. Beta calibrations are then tested in street and track scenarios, using multiple cars under various driving conditions. This engine calibration strategy ensures Unitronic Performance Software delivers maximum performance, OEM-like drivability and reliability anywhere in the world. Unitronic Performance Software is only released to its Clients once development is thoroughly completed in accordance to Unitronic’s strict standards.
• Factory Safety Limiters Retained
  OEM “fail safes” are retained within the ECU calibration. Close monitoring of all operation parameters ensures that engine operation stays within factory components limits, resulting in reliability.
• Optimized Responsiveness, Smoothness, Drivability, and Comfort
  Unitronic’s ECU calibrations are engineered to improve engine response and reduce low-end lag. Unitronic’s Performance Software has gained worldwide recognition and is well known for its broad powerband, with smooth power delivery, maximizing responsiveness and “area under the curve”, under normal and hard acceleration.
• Optimized Maximum Output
  Unitronic’s ECU Calibrators deliver the maximum power output while staying within the operational limits of the factory engine and drivetrain components. Specifically, this results in the highest engine performance without sacrificing the reliability of the engine, turbocharger, or other engine and drivetrain components.
• Power Delivery Perfectly Optimized Throughout the Power Band
  Aligned with the OEM strategy, the calibration is designed to offer a large flat torque plateau to provide a smooth and linear power band. Maximum torque output is achieved sooner and maintained longer which creates a broader torque plateau and greater area under the curve. This results in an improved acceleration and optimal engine operation.
• Improved Fuel Efficiency
  Optimized timing and injection in cruising condition allows for an improved fuel efficiency, under normalized driving conditions.
• Ignition Timing Precisely Calibrated for Higher Octane Fuel
  Engine calibration optimized to take advantage of higher fuel quality to extract maximum energy from the combustion. Therefore, when using a higher octane fuel, more power and better fuel efficiency will be achieved.
• Speed Governor Removed
  Vehicle speed limiter within ECU is removed. (Subject to transmission rotational speed limit.)
• Full Staged Software Suite
  All higher tier stages include functions from lower software stages as well.

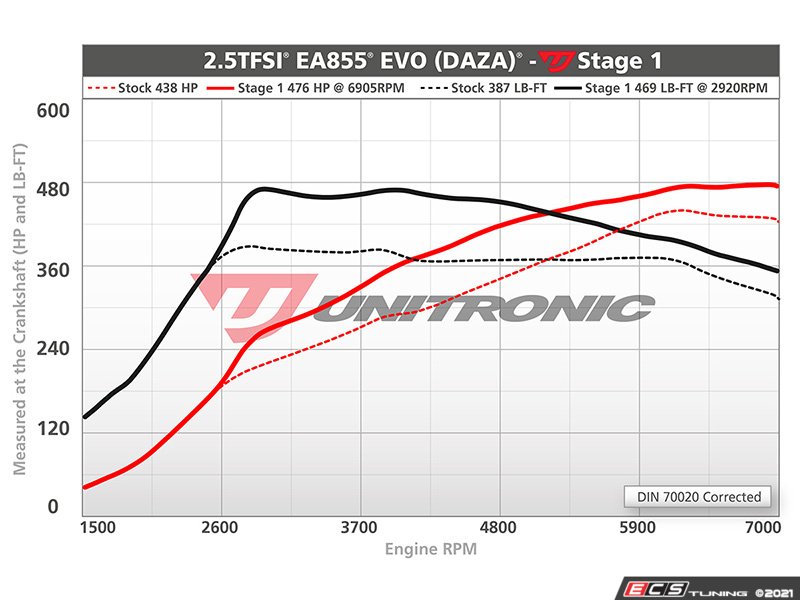

Stage 1 / 1+ Software:

Unitronic Stage 1 Performance Software is precisely calibrated for use with 91 octane / 95 RON fuel.

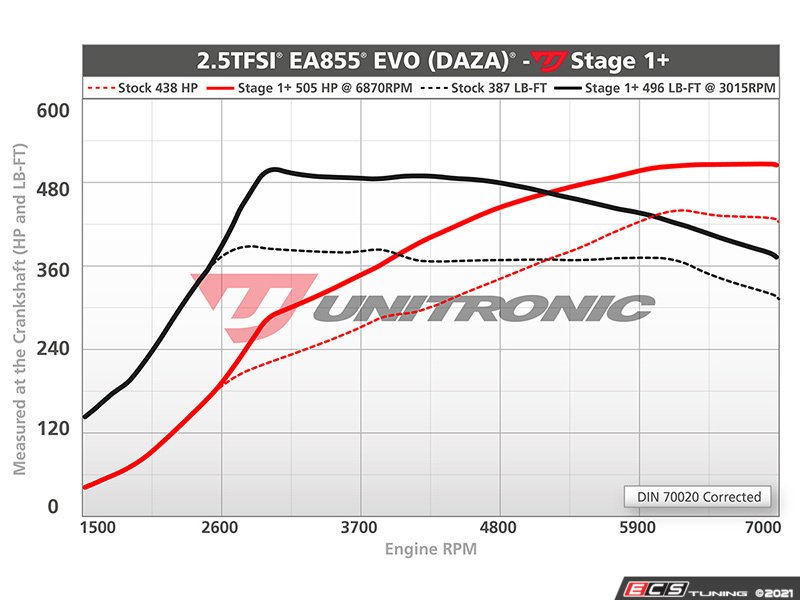

Unitronic Stage 1+ Performance Software is precisely calibrated for use with 93 octane / 98 RON fuel. It is the performance upgrade that will result in the most gains!
Unitronic Stage 2 TCU Performance Software is required to run Stage 1+ ECU tune.

Recommended Hardware:

• Unitronic 3'' Turbo Inlet Elbow for 2.5 TFSI EVO (ES#: 4362344)
• Unitronic Intercooler for 8Y RS3, 8V.2 RS3 and 8S TTRS (ES#: 4362338)
• Unitronic Wastegate Line Upgrade Kit for 2.5TFSI EVO (ES#: 4362275)

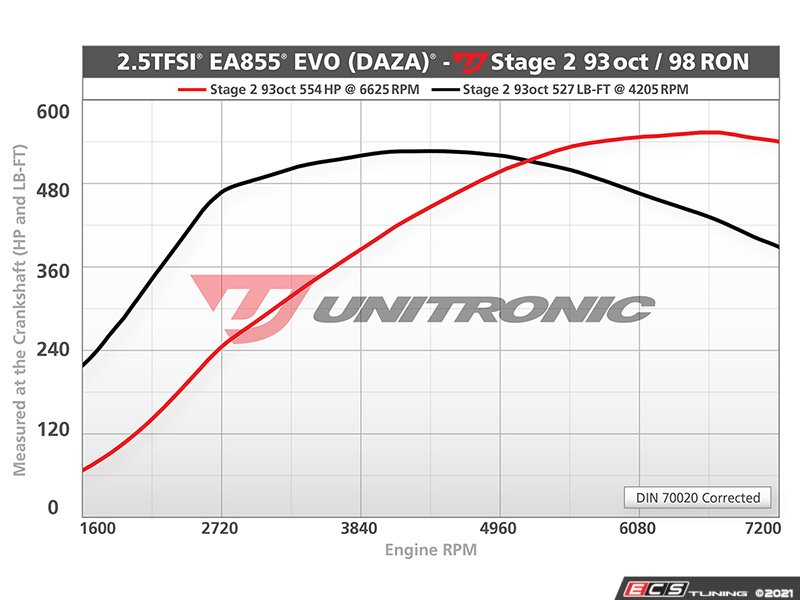

Stage 2 Software:

Unitronic Stage 2 (93 octane) Performance Software is precisely calibrated for use with 93 octane / 98 RON fuel, engineered for a vehicle that has full hardware bolt-ons. It is the performance upgrade that will result in the most gains!

Required Hardware:

• 2.5TFSI EVO Spark Plug Set (NGK R7437-9) by Unitronic (ES#: 4362286)
• Unitronic 3 inch Intake System for 2.5TFSI EVO (ES#: 4362372)
• Unitronic 3'' Turbo Inlet Elbow for 2.5 TFSI EVO (ES#: 4362344)
• Unitronic 4 inch Intake System for RS3 and TTRS, 2.5TFSI EVO (ES#: 4362366)
• Unitronic 4 inch Turbo Inlet Elbow for 2.5TFSI EVO (ES#: 4362363)
• Unitronic Downpipe w/ Midpipes for 2.5TFSI EVO (ES#: 4362393)
• Unitronic Intercooler for 8Y RS3, 8V.2 RS3 and 8S TTRS (ES#: 4362338)

Recommended Hardware

• Unitronic Street Dogbone Engine Mount for 2.5TFSI EVO (ES#: 4629927)
• Unitronic Wastegate Line Upgrade Kit for 2.5TFSI EVO (ES#: 4362275)
• Unitronic UniFLEX Hardware Kit (w/ Sensor) for 2.5TFSI EVO (ES#: 4730285)
  Please note that specific files are available for vehicle equipped with upgraded injectors.

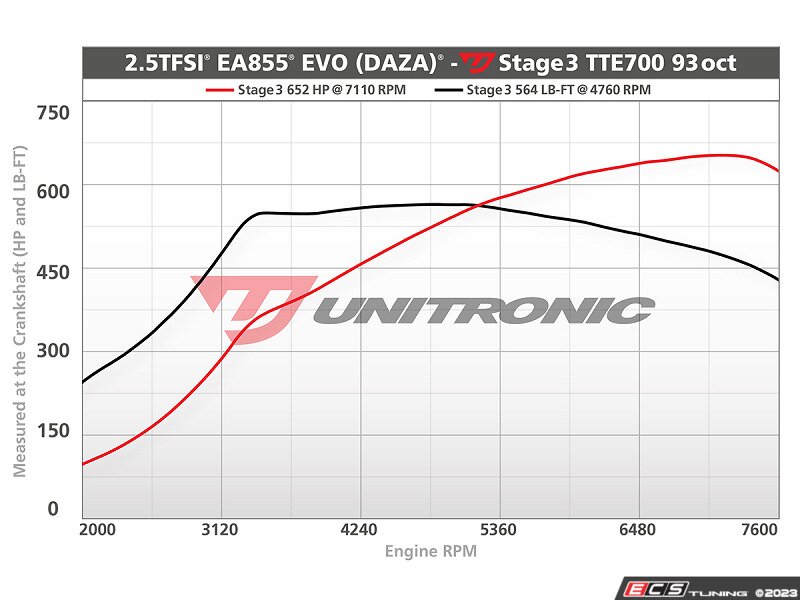

Stage 3 TTE700 Software:

Unitronic strongly urges its Stage 3 ECU Performance Software calibrations to be utilized together with a built engine/fortified bottom end. Stage 3 ECU Calibrations for the TTE700 are available in a "torque-limited" and "unlimited" formats, with Ethanol fuel. Maximum or "unlimited" torque ECU calibrations are meant to be used with built engines and require an Iroz Motorsports Single Brushless LPFP and Unitronic 4 bar MAP sensors.* Stage 3 TTE700 93oct/98ron ECU calibrations are also available with the LPFP and MAP sensor upgrades. Power figures displayed for Stage 3 TTE700 with E85 fuel are not representative of the maximum torque ECU calibrations. Stage 3 TTE700 "Torque-limited" ECU calibrations for Ethanol fuel are for use with the stock LPFP and MAP sensors. Stock LPFP's are not all created equally and output may vary; Ethanol content levels should remain ~E70 with the stock LPFP, air quality dependent.

Unitronic Stage 3 TCU Performance Software is required to run Stage 3 ECU tune.
*Unitronic 4 bar TMAP sensors are only available for customers who own or have purchased together with Stage 3 ECU Performance Software.

Required Hardware:

• 2.5TFSI EVO 4 inch Turbo Inlet Elbow TTE625/700 (62.8mm) Adapter Ring (ES#: 4362281)
• 2.5TFSI EVO Spark Plug Set (NGK R7437-9) (ES#: 4362286)
• 4 bar TMAP Sensor Upgrade Kit For 2.5TFSI EVO (ES#: 4499629)
• Iroz Motorsports Single Brushless Low Pressure Fuel Pump Upgrade
• Unitronic 4 inch Intake System for RS3 and TTRS, 2.5TFSI EVO (ES#: 4362366)
• Unitronic 4 inch Turbo Inlet Elbow for 2.5TFSI EVO (ES#: 4362363)
• Unitronic Downpipe w/ Midpipes for 2.5TFSI EVO (ES#: 4362393)
• Unitronic Intercooler for 8Y RS3, 8V.2 RS3 and 8S TTRS (ES#: 4362338)
• Unitronic MPI Injector Upgrade Kit for 2.5TFSI EVO (ES#: 4362302)
• TTE700 Turbocharger (ES#: 4630045)
• Iroz Motorsports Single Brushless Low Pressure Fuel Pump Upgrade (if Built Engine and using "Max Torque" ECU calibrations)
• Built Bottom End (Rods and Pistons)

TCU Software Upgrades

Stage 1 TCU Software:

• Optimized D & Sport Modes
  D-mode is optimized for everyday daily driving and economy, while S-mode is optimized for faster acceleration.
• Quicker Gear Shifts
  Unitronic's TCU Performance Software calibration enhances the gear shift speeds making them up to 70% quicker.
• Launch Control Engagement Limit Unlocked
  Unitronic's TCU Performance Software unlocks the factory launch control limiter. The OEM launch control limiter blocks the engagement of launch control after only 200 launches.

Stage 2 TCU Software:​

• Raised Torque Limiters
  Unitronic's Stage 2 TCU Performance Software calibrations increase TCU torque limiters to allow for an increased output and has been developed alongside Unitronic's upcoming Stage 2 ECU Performance Software for the ultimate overall experience.
• Increased Clutch Clamping Pressure
  Unitronic's Stage 2 TCU Performance Software calibrations increase clutch clamping pressure and has been developed in conjunction with and alongside Unitronic's Stage 2 ECU Performance Software, supporting the increase in engine torque output and ensuring that the clutches properly grip allowing for the higher output to be sustained.
• Full Staged Software Suite
  Includes all Stage 2 tune variants and all lower software stages as well.

Stage 3 TCU Software:

• Optimized D & Sport Modes
  D-mode is optimized for everyday daily driving and economy, while S-mode is optimized for faster acceleration.
• Quicker Gear Shifts
  Unitronic's TCU Performance Software calibration enhances the gear shift speeds making them up to 70% quicker.
• Launch Control Engagement Limit Unlocked
  Unitronic's TCU Performance Software unlocks the factory launch control limiter. The OEM launch control limiter blocks the engagement of launch control after only 200 launches.
• Raised Torque Limiters
  Unitronic's Stage 3 TCU Performance Software calibrations increase TCU torque limiters to allow for an increased output and has been developed alongside Unitronic's Stage 3 ECU Performance Software for the ultimate overall experience.
• Increased Clutch Clamping Pressure
  Unitronic's Stage 3 TCU Performance Software calibrations increase clutch clamping pressure and has been developed in conjunction with and alongside Unitronic's Stage 3 ECU Performance Software, supporting the increase in engine torque output and ensuring that the clutches properly grip allowing for the higher output to be sustained.
• Full Staged Software Suite
  Includes all Stage 3 tune variants and all lower software stages as well.

UniCONNECT+ is a Programming and Diagnostic Interface which gives users the freedom to reflash their Engine Control Unit (ECU) or Transmission Control Unit (TCU) from the comfort of their own garage. With the ability to upgrade the Unitronic Performance Software, flash back to stock, and also perform diagnostics, UniCONNECT+ is a complete end-user programming and diagnostic interface that provides control over your vehicle.

• UniCONNECT+ is compatible with most of 2006 and up vehicles.*
• UniCONNECT+ gives you the freedom to effortlessly install your Unitronic Performance ECU and DSG Software from the comfort of your own home or garage.*
• Quickly and Easily re-flash your ECU with Performance Software maps designed and specifically calibrated to suite the hardware and fuel modifications or fuel grade used.
• Gathering high resolution data is made easy with Unitronic’s pre-configured channel loadouts for fast and effortless troubleshooting and data logging.**
• UniCONNECT+ makes it painless to revert your ECU back to it’s stock calibration within minutes.*
• Enable optional advanced settings such as Launch Control or No Lift Shifting within minutes. Enable Gear display in MFG for DSG Software owners.*

Unitronic recommends the use of these battery chargers to ensure, uninterrupted, trouble-free, flashing at home!

• OptiMate 7 SELECT (ES#: 4362291)
• OptiMate 6 SELECT (ES#: 4362284)

Minimum System Requirements:

• Operating System: Microsoft Windows 7
• Internet Explorer 11
• Screen Resolution: 1024x768
• Processor: 1.5 GHz or higher
• Memory (RAM): 4GB or more
• Internet access is required.

*Some exclusions apply. UniCONNECT+ cables are VIN-locked and can only be used on one vehicle. Only available for select engines. Contact Unitronic or a Unitronic Authorized Dealer for more information.
**Feature in development.

* Performance Software for your ECU Box Code is subject to availability.
** 2019+ models may require to have the hood opened during the flashing process.

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
