MFD28 Digital Display
- Mfg Part #
- WT31043
- ECS Part #
- ES#4831008
- Brand
-
Free Shipping
Product Details

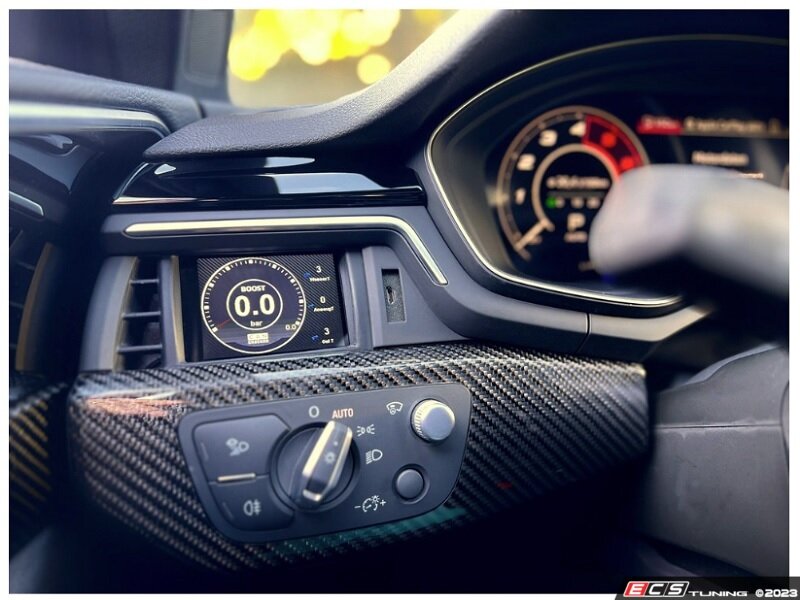

Introducing an advanced display designed for the Audi A4 B9 (including S4/RS4) and A5 F5 (including S5/RS5) models. This state-of-the-art display provides comprehensive access to all data from the engine control unit, querying sensors directly via the Can Bus protocol and showcasing the information on the reliable MFD28 display. The Audi A4 B9 display integrates seamlessly into the vehicle's interior with a custom-made frame, mirroring the original part.
The manufacturer-specific Can Bus protocol has been optimized to achieve maximum query speed.
Key Features:
- Seamless Integration: Designed to fit perfectly into the vehicle's interior.
- Sensor Coverage: Capable of querying up to 128 sensors.
- Customizable Views: 10 individually customizable views with DSS - Display Setup Software.
- Pre-Configured Views: Ready-to-use views for a quick start.
- Easy Installation: Plug-and-play setup with a provided cable set—connect and start.
- Additional Inputs: Four extra analog inputs for monitoring exhaust temperature, oil pressure, and more.
- Ethanol Sensor Integration: Direct integration for ethanol sensors.
- Enhanced Readability: Optional anti-glare film for improved visibility.
- Diagnostic Capability: Sensor querying compares to the manufacture of turer diagnostic tools.
Additional Features:
- Performance Meter: Measure acceleration times with the Performance Widget—0-100, 100-200, 0-200 km/h.
- Data Logging: Log data on the internal SD card, whether "on-demand" or continuously. All data from the last drive is stored.
- Preset Alarms: Customizable warning messages, such as alerts for exhaust temperatures exceeding 900 degrees.
- Analog Inputs: Connect in addition to monitoring temperature or pressure, including an ethanol sensor for Flex Fuel vehicles.
- Error Reading/Deletion: Read and delete engine control unit errors in plain text.
- Customization: Personalize the startup screen and choose from various widgets.
- Seamless Fit: Designed for all left-hand drive Audi A4 B9 and A5 F5 vehicles. A right-hand drive version is in development.
Access to Engine Control Unit Data:
- Temperatures: Engine coolant, intake air, exhaust, and transmission temperatures.
- Pressures: Boost, ambient, and oil pressures.
- Lambda/Mixture: Lambda target/actual, short-term and long-term lambda adaptation, MAF, engine load, and torque.
- Driver Dynamics: Brake pressure, vehicle speed, throttle angle/gas pedal position.
- Other Data: RPM, total ignition angle, gear, battery voltage, ignition angle correction per cylinder.
- Analog Inputs: Additional sensors like oil temperature, fuel pressure, and exhaust temperature, including an ethanol sensor for Flex Fuel vehicles.
Compatibility:
- The display frame fits all left-hand drive Audi A4 B9 and A5 F5 models. A right-hand drive version is currently being developed.

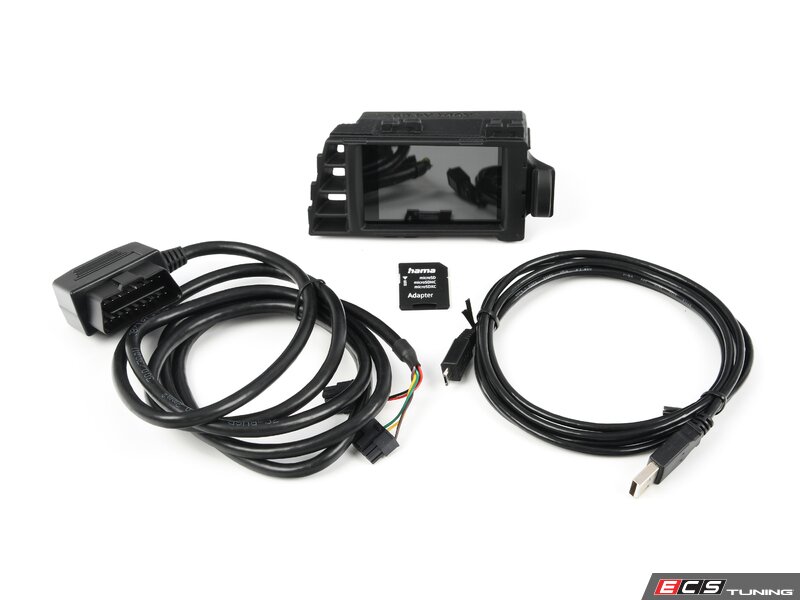

Scope of Delivery:

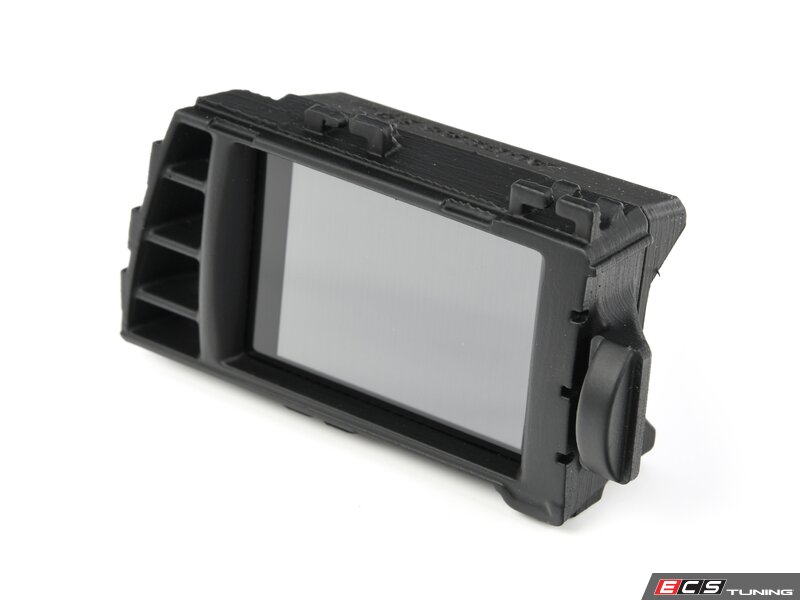

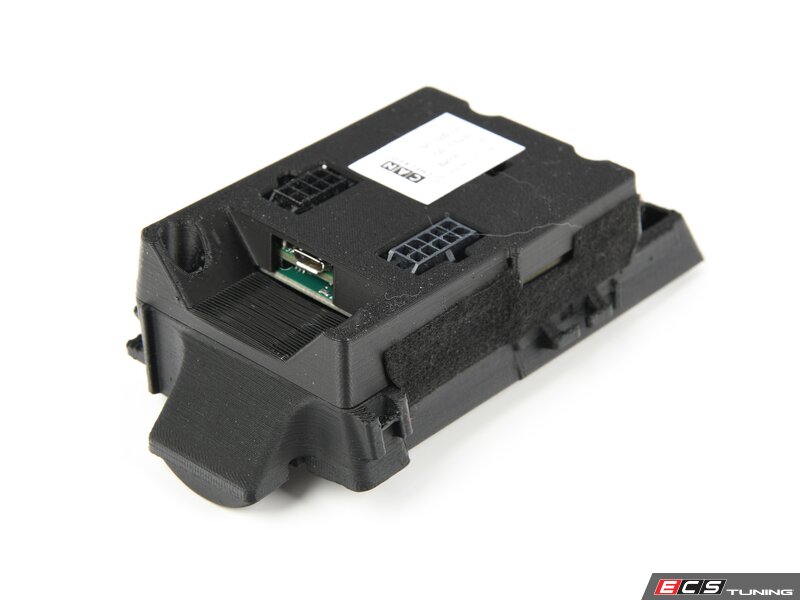

- MFA28 Gen2 data display integrated into the cluster
- Quickstart Guide

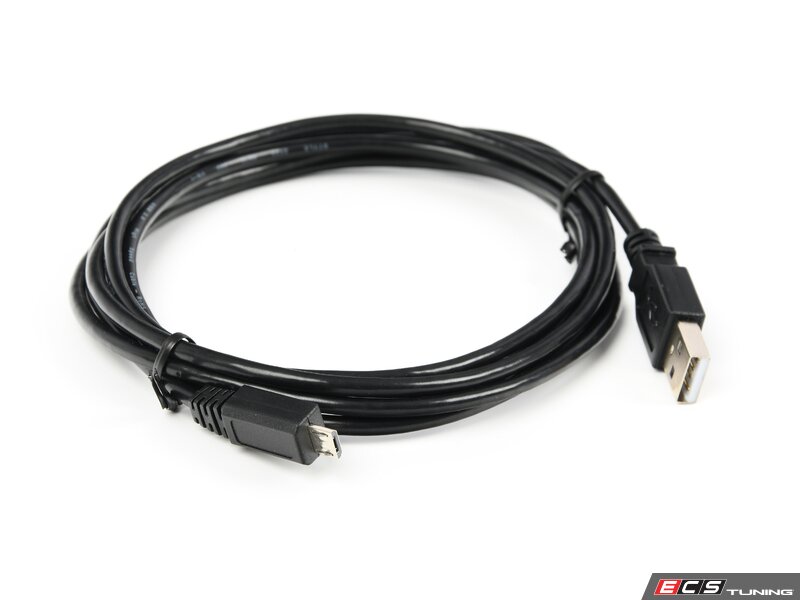

- USB data cable
- SD card (pre-installed in the display)

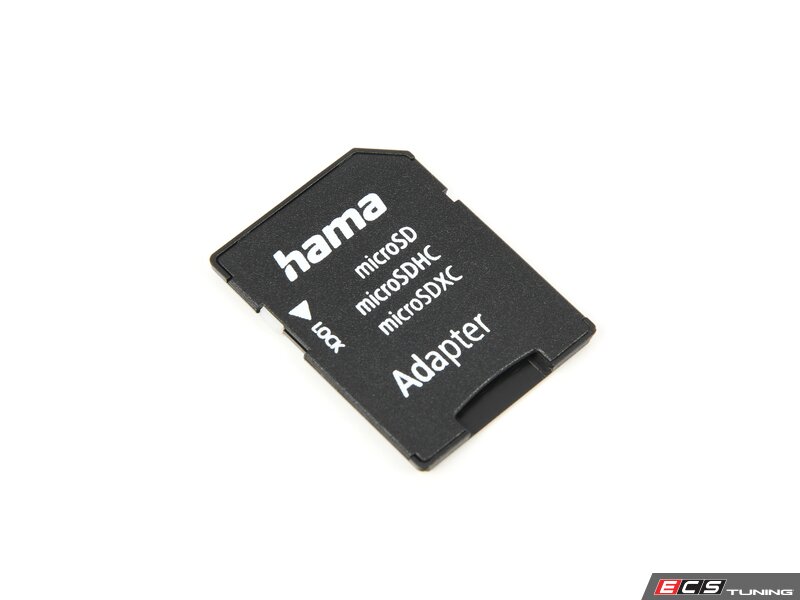

- SD card adapter
- Display foil (to reduce reflections)

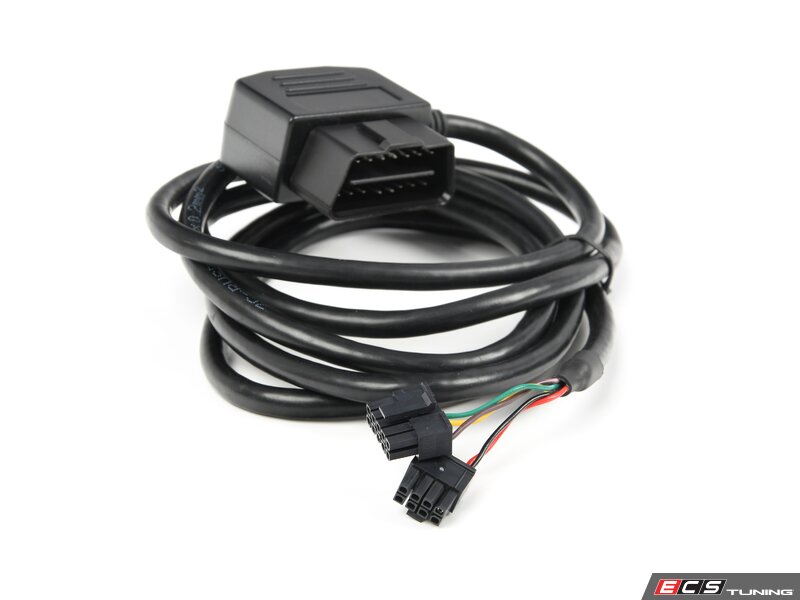

- Plug-and-play connection cable to OBD port
Connection and Extension:
Sensors can be connected via four analog inputs, supporting linear 0-5V and NTC sensors.
Wagner Tuning Display sensors are pre-configured in the TRI/TRX files and require only connection:
- AIN1: Temperature sensor
- AIN2: Transducer for exhaust gas temperature sensor type K
- AIN3: Pressure sensor 0-10 Bar
- AIN4: Boost pressure sensor 0-5.5 Bar absolute
The external shift light with 8 LEDs can be connected and configured for different colors and speed limits.
The ethanol sensor can be connected directly to the display with a pull-up resistor (10K) between 5V and the signal for viewing and logging ethanol content and temperature.
Advanced Functions:
- Math channels: Calculate data from multiple sensors.
- User-Table: Create additional sensors using 2D or 3D maps.
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B9 A4 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 A4 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 A5 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 A5 | Quattro | 2.0T Sportback | Use vehicle selector to confirm fitment |
| Audi | B9 RS5 | Quattro | 2.9T | Use vehicle selector to confirm fitment |
| Audi | B9 S4 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T Sportback | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T Cabriolet | Use vehicle selector to confirm fitment |
