MFD32 Display
- Mfg Part #
- WT31062
- ECS Part #
- ES#4830990
- Brand
-
Free Shipping
Product Details

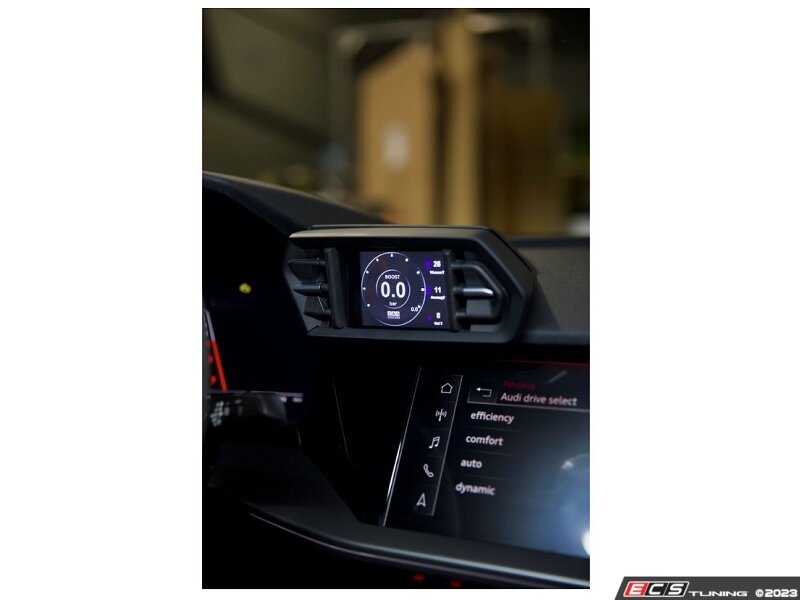

Introducing the cutting-edge display designed specifically for Audi A3 8Y models. This advanced unit delivers comprehensive access to all engine control unit (ECU) data, covering every detail. The display communicates directly with sensors via the Can-Bus protocol and showcases information on the highly reliable MFD28 display. Seamless integration into the vehicle's interior is achieved with a custom fascia that closely resembles an original part. The manufacturer-specific Can-Bus protocol is finely tuned to ensure maximum query speed.
Main Features:
- Seamless interior integration
- Queries up to 128 sensors
- 10 customizable views with DSS - Display Setup Software
- Pre-configured views for quick setup
- Easy plug-and-play installation with included cable set
- 4 additional analog inputs for monitoring parameters like exhaust temperature and oil pressure
- Direct integration of an ethanol sensor
- Optimal readability with an optional glare screen
- Sensor queries are displayed at eye level using manufacturer-specific diagnostic tools
Additional Features:
- Performance Meter: Track acceleration times with the performance widget (0-100, 100-200, 0-200).
- Data Logging: Log data on the internal SD card, whether on-demand or continuously. All data from the last drive is stored.
- Pre-set Alerts: Set and customize alerts, such as notifications for exhaust temperature exceeding 900 degrees.
- 4 Additional Analog Inputs: Connect extra sensors for temperature or pressure monitoring, including exhaust temperature or exhaust backpressure. An ethanol sensor can also be connected to one of the digital inputs.
- Error Reading/Clearing: Read and clear engine control unit errors in plain text.
- Customizability: Personalize the start screen or choose from various widgets.
- Seamless Vehicle Integration: Compatible with all left-hand drive Audi A3 8Y vehicles; a right-hand drive version is in development.
- Access to All ECU Data: Includes a pre-configured TRI file that defines all queryable sensors, such as engine coolant temperature, intake air temperature, exhaust temperature, transmission temperature, and more.
Analog Inputs: Additional sensors for monitoring parameters such as oil temperature, fuel pressure, and exhaust temperature can be added. An ethanol sensor is available for flex-fuel vehicles.
Package Contents:
- MFD28/32 Gen2 data display integrated into the ventilation insert
- Vehicle-specific connection cable
- Quickstart Guide
- USB data cable
- SD card (pre-installed in the display)
- SD card adapter
- Display film (to prevent reflections)
Connection and Expansion:
- Connect various sensors through four analog inputs, supporting both linear 0-5V and NTC sensors. Pre-configured Wagner Tuning Display sensors are included and require only connection:
- AIN1: Temperature sensor
- AIN2: Converter for Type K exhaust temperature probe
- AIN3: Pressure sensor 0-10 Bar
- AIN4: Boost pressure sensor 0-5.5 Bar absolute
- Additional connections include an external flash module with 8 configurable LEDs for various colors and RPM limits.
- Connect the ethanol sensor directly to the display, requiring a pull-up resistor (10K) between 5V and the signal. Ethanol content and temperature can be viewed and logged directly.
Advanced Features: Utilize Math Channels to perform calculations between sensors. The User Tables feature allows for the creation of additional sensors using 2D or 3D maps.
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | 8Y A3 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | 8Y A3 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | 8Y RS 3 | Quattro | 2.5T | Use vehicle selector to confirm fitment |
| Audi | 8Y S3 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
