Polar FIS Advanced Dashboard Display

The ultimate multi-function gauge, right on your instrument cluster screen!
Mfg Part #
PF04
ECS Part #
ES#4061569
Brand
AutoPolar
275.00
Free Shipping Free Shipping
on orders $49 and up
Availability: In Stock
Qty
Does this fit my vehicle?

Product Details

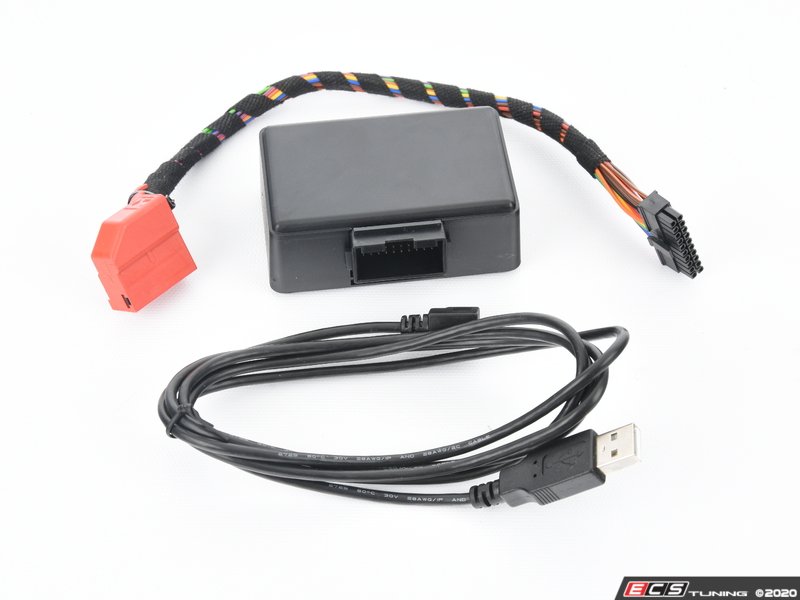

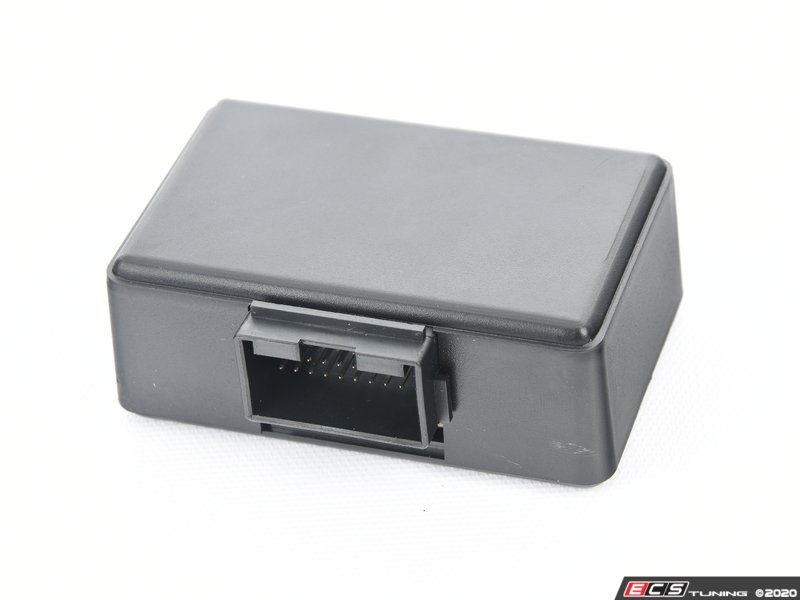

Polar FIS is a plug and play device that delivers detailed vehicle parameters to the MFA/FIS screen on your dashboard of your VW/Audi. It plugs into the Body Control Module to offer detailed diagnostics from the CAN-BUS. No need for countless gauges on your dash, A-pillar, vents or center console anymore. Polar FIS delivers real time information so you can access the data when you want it. Over 164 parameters are accessible with the ability to spread specific parameters over 5 screens.

Real time data is crucial when things start to go bad in your vehicle not to mention the buffers the factory builds into the algorithms like the difference in speed displayed on the speedometer versus actual speed. Polar FIS pulls the true data prior to entering the algorithm and give you the real-time information.



Parameters (For full list of possible parameters please see: https://www.autopolar.net/wiki/index.php/PolarFIS#Parameter_list )

  • Real Speed (Read from ECU)
  • Oil Temperature (°C / °F)
  • Coolant Temperature (°C / °F)
  • Outside Temperature (°C / °F)
  • Intake Temperature (°C / °F)
  • Turbo Poost Pressure (bar/ PSI)
  • Exhaust Gas Temperature (EGT)
  • RPM motor
  • Battery Voltage
  • Fuel Remaining (Liters / Gallons)
  • Atmospheric Pressure
  • Fuel Pump Pressure
  • Motor Load
  • Ambient Temperature (Engine ECU)
  • Coolant Temperature Engine Output
  • Coolant Temperature Leaving the Radiator
  • Oil Level
  • Brake Master Cylinder Pressure
  • Fuel Rail Pressure



Other Features:

  • Built in VIM to enable video on stereo screen while vehicle is in motion
  • Polar FIS Advanced supports OEM Bluetooth and does not use the Bluetooth menu in the FIS, but creates a new menu called Advanced Polar FIS
  • The name of the created menu is customizable, which can substituted by the text you want (up to 10 characters)
  • Option to turn off the Polar FIS Advanced screen off making the unit undetectable when taking the car in for service or repair. It can be reactivated by simply pressing the OK button on the steering wheel or windshield wiper lever for 10 seconds
  • Automatic temperature units (° C, ° F), Speed (kmph / mph) and Size (Liters / Gallons) selected in the FIS
  • Manual selection of the units in which you want to display the parameters relating to pressure. Automatic, mbar, bar, PSI
  • Multi-function steering wheel / Wiper stalk control
  • Polar Advanced FIS automatically installs itself in the gateway, so you do not need diagnostic software after installation
  • Ability to setup the number of blinks of convenience signal lights (up to 10 blinks)
  • Automatic passenger mirror auto tilt option
  • Customizable steering wheel keys and windshield wiper lever
  • Modification of the sensitivity of the rain sensor
  • Modification of the sensitivity of the light sensor
  • Enabling / Disabling daytime running lights
  • Enabling / Disabling cornering lights (using fog lights)
  • Enabling / Disabling second rear fog light (when bulb is installed)
  • Enable / disable automatic doors lock from 15 km/h
  • Enable / disable automatic closing by rain
  • Enabling / Disabling one touch closing windows
  • Enable / Disable hazard warning in case of sudden braking

NOTE: In diagnosis functions, Polar Advanced FIS performs the tasks of coding the ECU with the requested function transparently for you, so if this function is not supported by your vehicle ECU, then it cannot be activated.



Quick Start Guide After Install:

1. Scroll to phone screen on your steering wheel

2. Hold OK on phone screen

3. Press OK on Visualization

4. Press OK on Parameters

5. Press OK on Screen 1

6. Press OK on Parameters and start choosing the one you want for screen 1 up to 4 parameters per screen and continues to screen 2 and so forth.



This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi A3 8P FWD 2.0T
Audi A3 8P FWD TDI
Audi A3 8P Quattro 2.0T
Audi A3 8P Quattro 3.2L
Audi A3 8P Quattro V6 3.2L
Volkswagen CC 4Motion VR6
Volkswagen CC FWD 2.0T
Volkswagen CC FWD VR6
Volkswagen EOS All 2.0T
Volkswagen EOS All 3.2L
Volkswagen Golf R All 2.0T
Volkswagen Golf V All 2.0T
Volkswagen Golf VI All 2.0T
Volkswagen Golf VI All 2.5
Volkswagen Golf VI All TDI
Volkswagen Jetta V All 2.0T
Volkswagen Jetta V All 2.5
Volkswagen Jetta V All TDI
Volkswagen Jetta VI Sedan 1.4T Hybrid
Volkswagen Jetta VI Sedan 1.8T Gen3
Volkswagen Jetta VI Sedan 2.0T Gen3 GLI
Volkswagen Jetta VI Sedan GLI
Volkswagen Jetta VI Sedan Facelift 1.4T
Volkswagen Jetta VI Sedan Facelift 1.4T Hybrid
Volkswagen Jetta VI Sedan Facelift 1.8T Gen3
Volkswagen Jetta VI Sedan Facelift 2.0T Gen3 GLI
Volkswagen Jetta VI Sedan Facelift TDI
Volkswagen Jetta VI Sportwagen 2.0T
Volkswagen Jetta VI Sportwagen 2.5
Volkswagen Passat B6 4 Motion 3.6L
Volkswagen Passat B6 FWD 2.0T
Volkswagen Passat B6 FWD 3.6L
Volkswagen Passat B7 All 2.5L
Volkswagen Passat B7 All TDI
Volkswagen Passat B7 All V6
Volkswagen Passat B7 FWD 1.8T Gen3
Volkswagen Passat B7 FWD 2.0T Gen3
Volkswagen Tiguan 1 4 Motion 2.0T
Volkswagen Tiguan 1 FWD 2.0T
Volkswagen Tiguan 2 4 Motion 2.0T
Volkswagen Tiguan 2 FWD 2.0T
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.
