8Y RS3 Front Mount Intercooler
- Mfg Part #
- 048042LA01KT
- ECS Part #
- ES#4781650
- Brand
-
This product was last offered at the strikethrough price on
06-13-2026
Free Shipping
Product Details

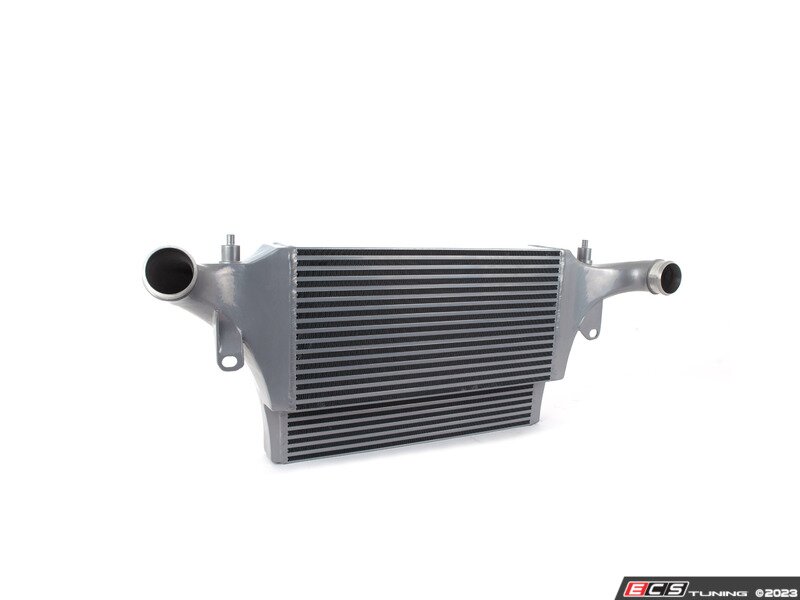

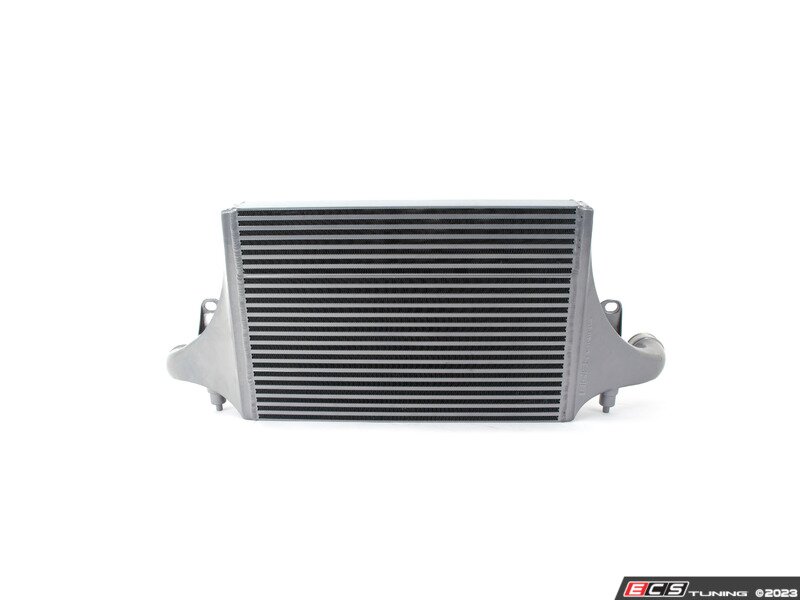

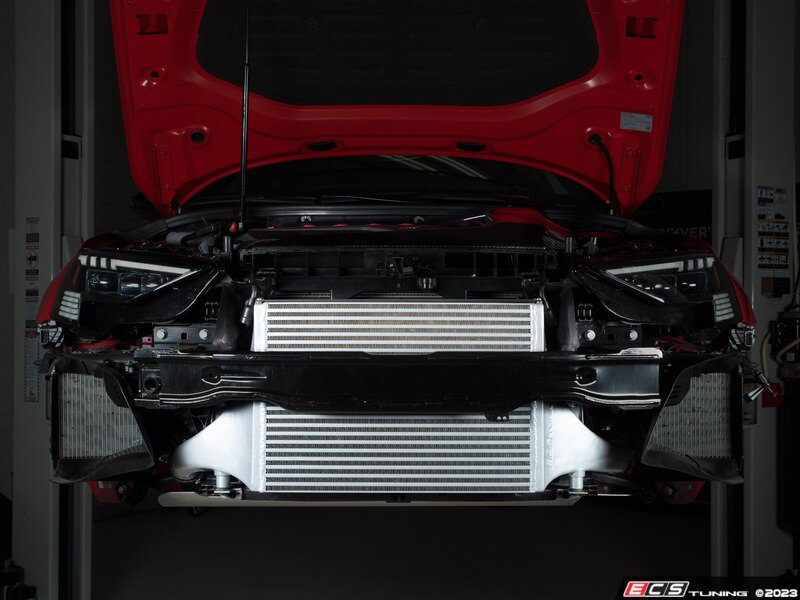

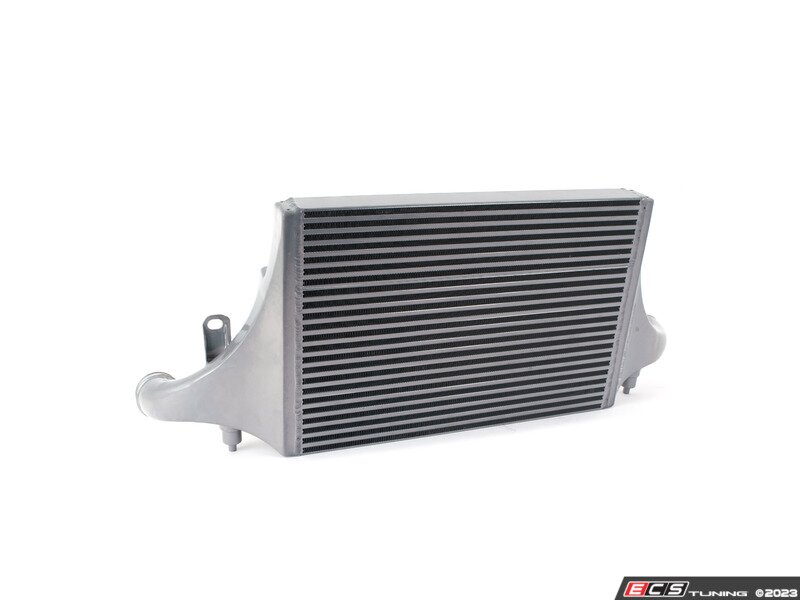

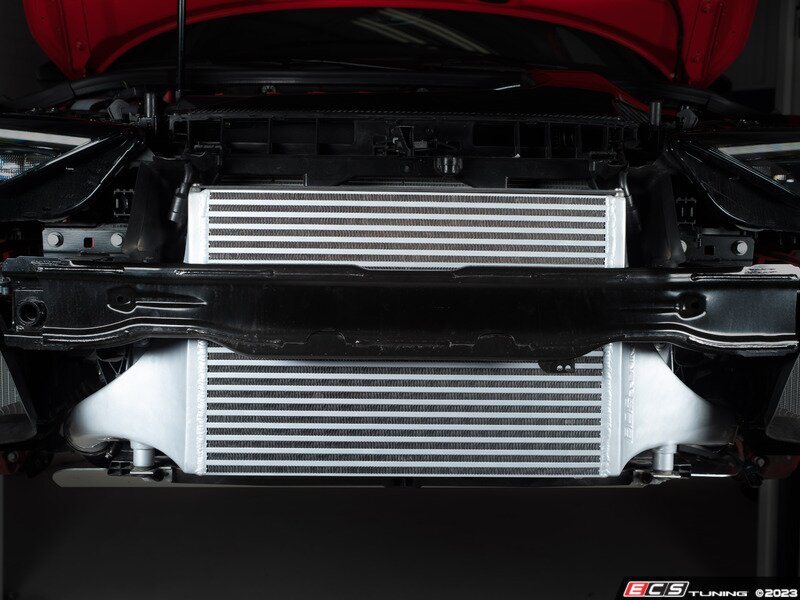

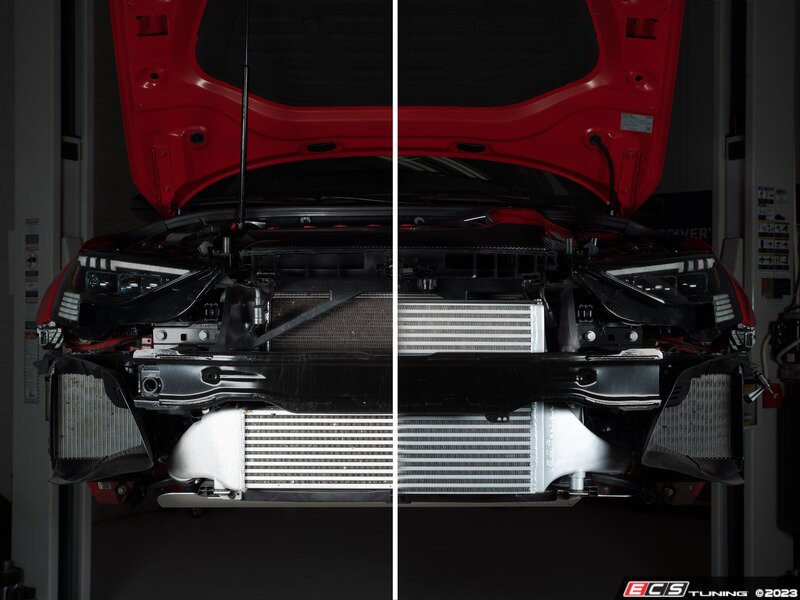

The ECS Tuning Front Mount Intercooler (FMIC) Kit boosts power and lowers intercooler outlet temps by maximizing core volume and smoothing air transition. While the 8Y features a large core from the factory, the intercooler has proven to be substantially undersized for enthusiasts pushing the limits of their vehicle. By utilizing previously unclaimed space behind the upper grille, the engineers at ECS Tuning have increased core size by over 130% and internal cross-sectional area by over 150%. Additionally, intake and outlet end tanks are revised to improve even flow distribution throughout the core and are fully machined to provide a smooth air transition.
Featured on the ECS Tuning YouTube Channel:
DESIGN:
- 3D CAD modeling allows for optimal intercooler positioning and maximum core volume without requiring any modification to surrounding components (no drilling or cutting required).

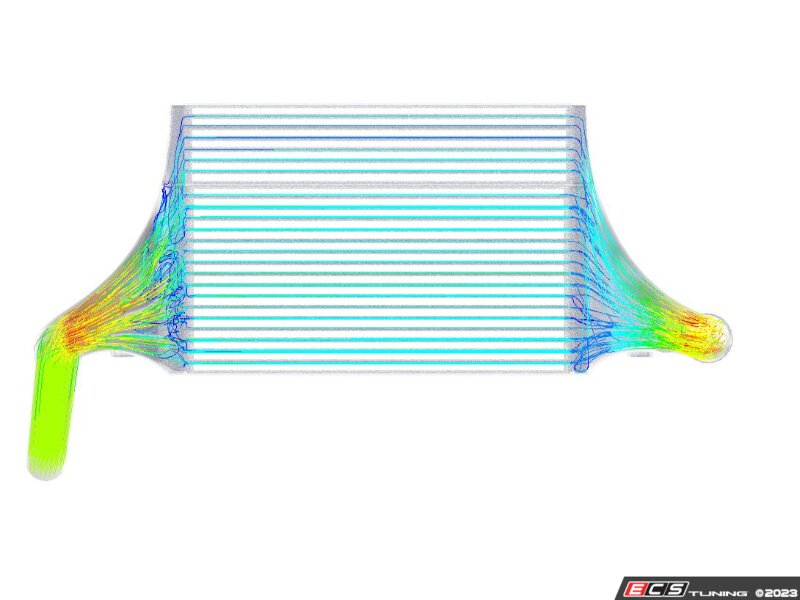

- Inlet and outlet end tanks are optimized using Computational Fluid Dynamics, allowing our engineers to ensure maximum flow from the charge pipe to the intercooler core.

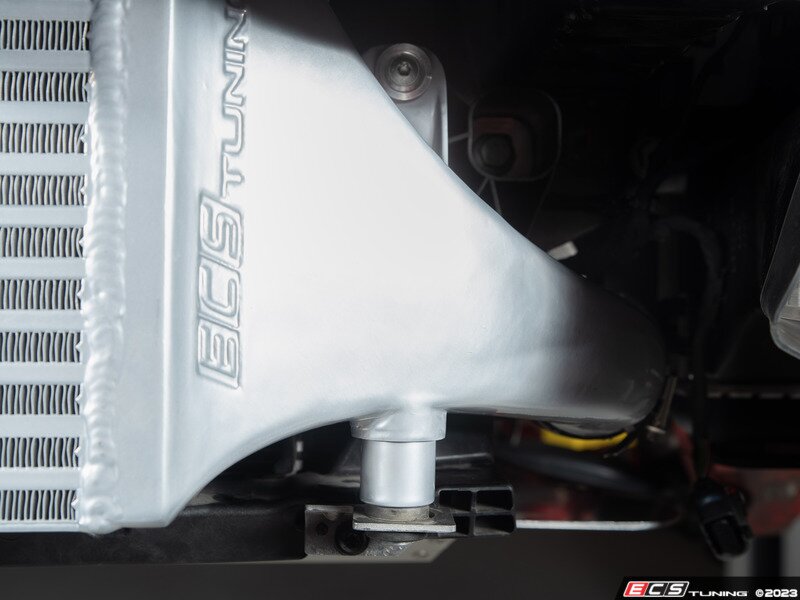

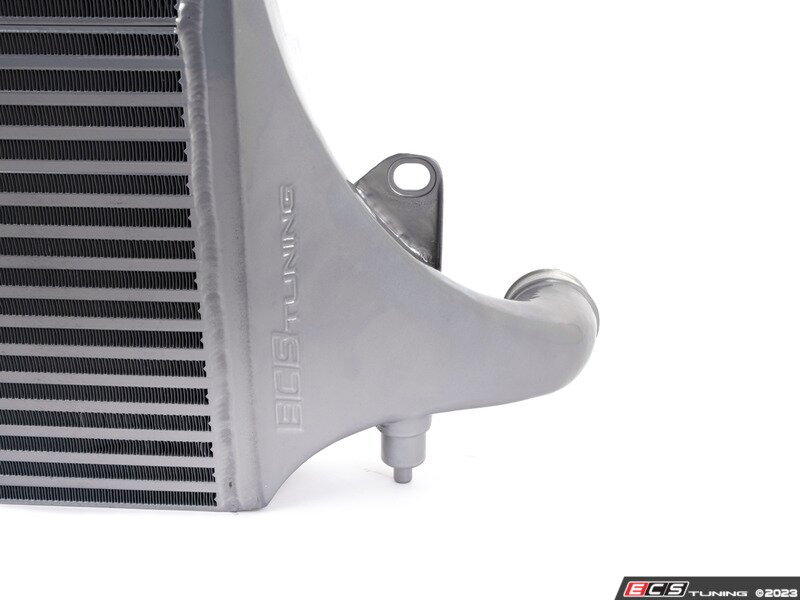

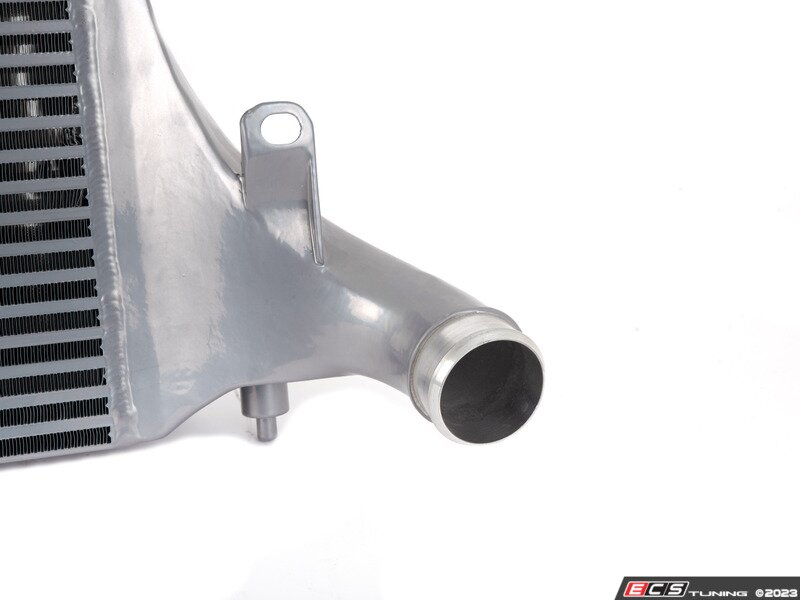

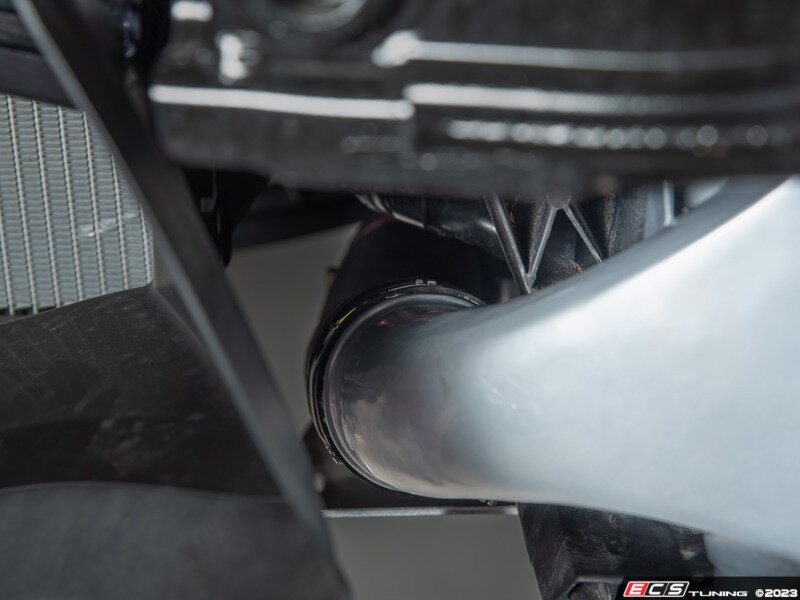

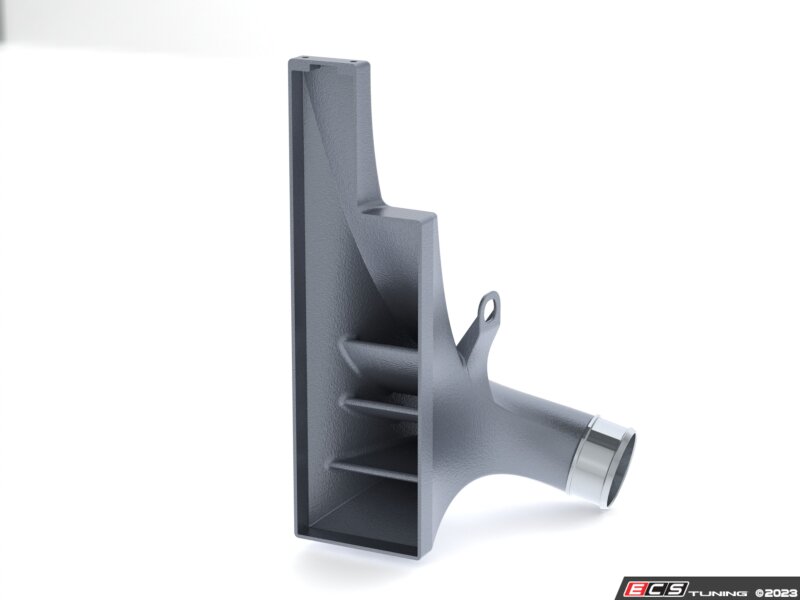

- Cast aluminum end tanks are TIG welded to the core and feature machined transmissions for uninterrupted maximum airflow.
- Our intercooler design is pressure tested to 4.5 BAR (65 psi) to ensure reliability in the most extreme applications.

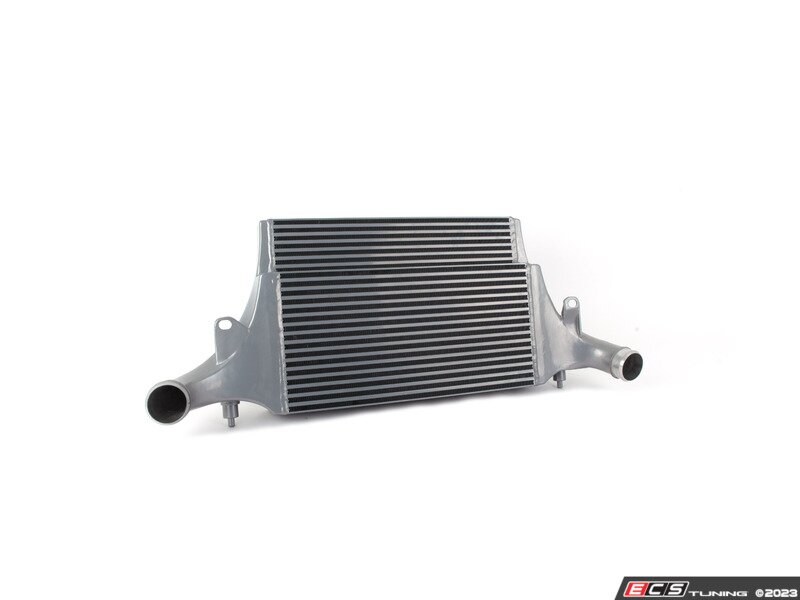

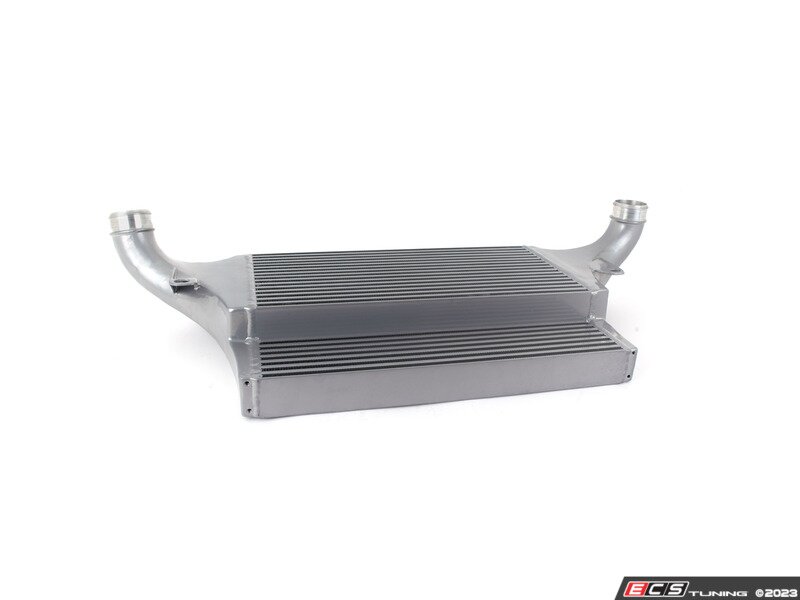

- Aluminum Straight Vane Bar and Plate Core (1305in.³ internal core volume)
- Lower Core: 22.1in x 10.83in x 4.5in (561mm x 275mm x 114.3mm)
- Upper Core: 22.1in x 4.5in x 2.3in (561mm x 114.3mm x 59mm)
KEY BENEFITS:
- Reduced intake temperatures and air turbulence.

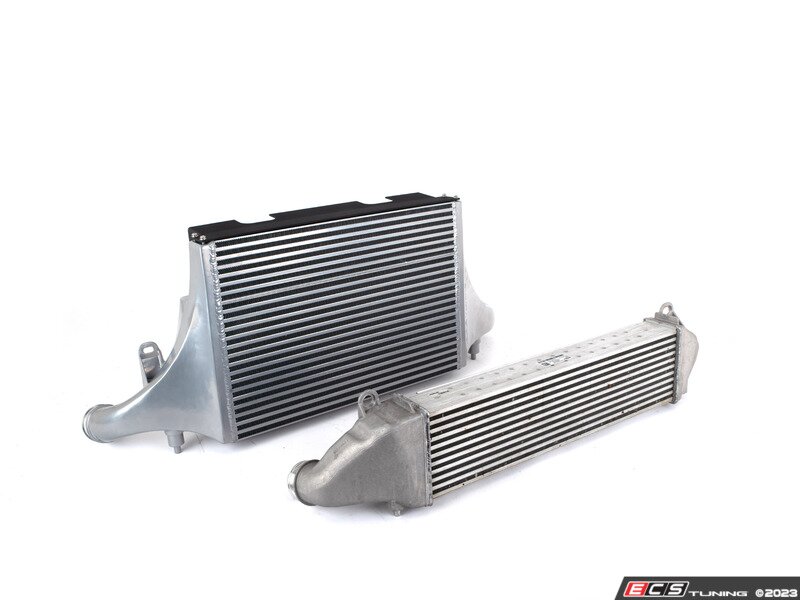

- Increased airflow capacity over the factory unit.

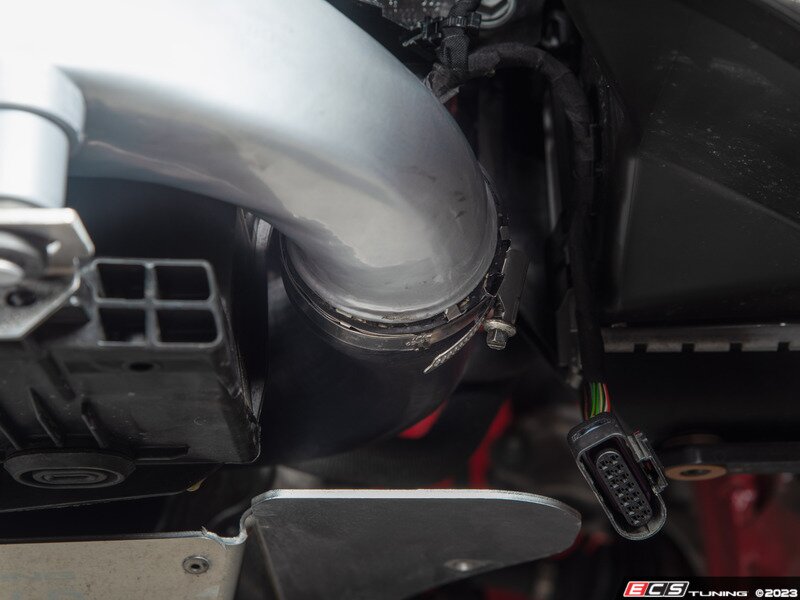

- Mates directly with OEM intercooler piping.

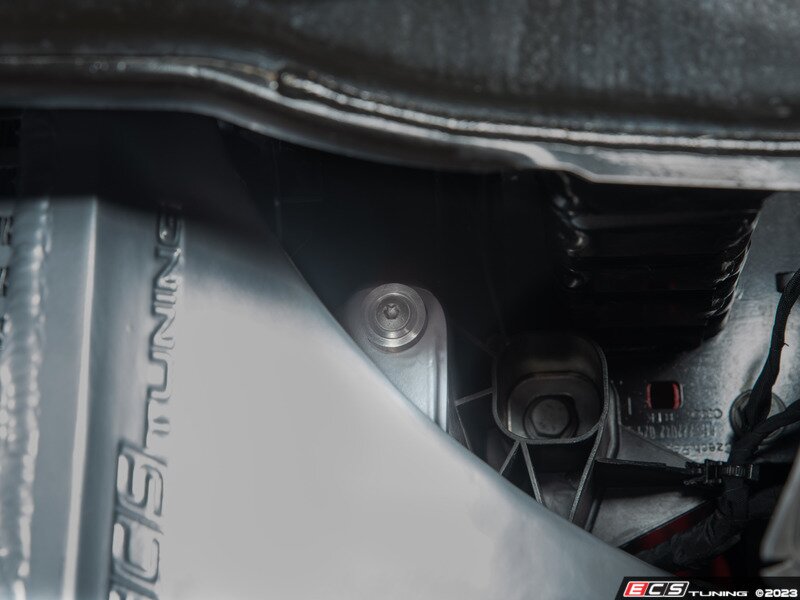

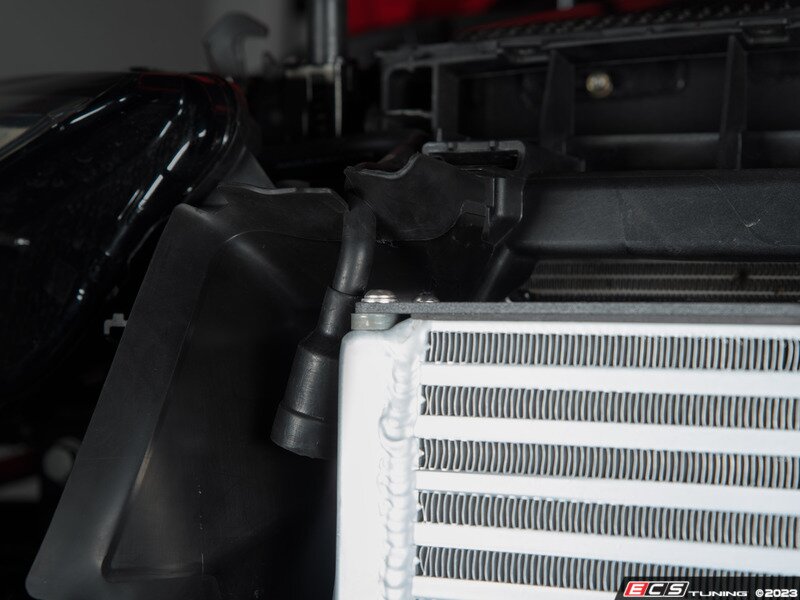

- Uses OEM grommets and mounting locations.
- Requires no modification to surrounding components - installation is completely reversible.
INSTALLATION & SUPPORT:

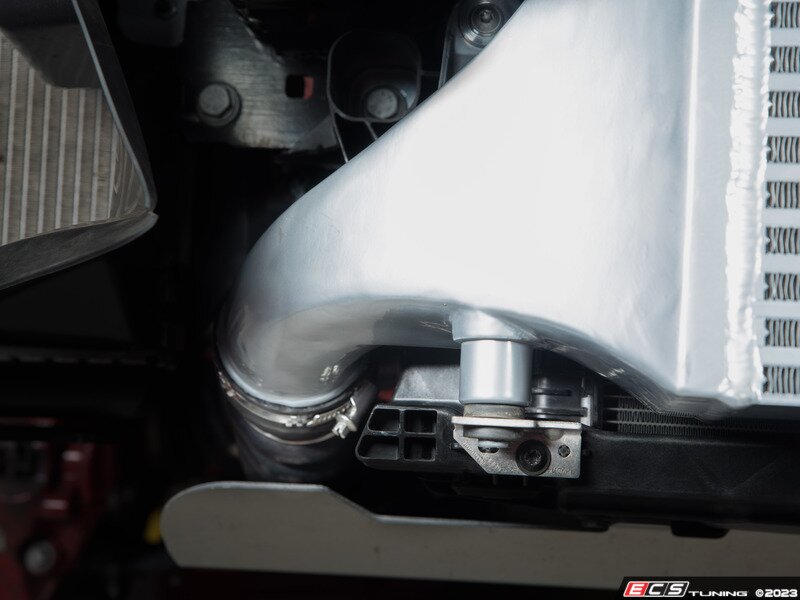

- The ECS Tuning Front Mount Intercooler Kit includes a mounting bracket, screws, washers, and spacers for seamless installation.
- Instructions are included for easy installation! See the "Installation" tab above for a comprehensive guided installation procedure, complete with pictures, required tools, and torque values.
PRODUCT DEVELOPMENT:
This ECS Front Mount Intercooler Kit was designed, engineered, tested, and quality inspected by our Research and Development team at our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long-term product testing.
NOTE: *Will not fit Non-U.S. spec vehicles due to crash bar clearance*
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
- 8V0145803B
- 8V0145803A
- 8S0145674E
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | 8Y RS 3 | Quattro | 2.5T | Use vehicle selector to confirm fitment |

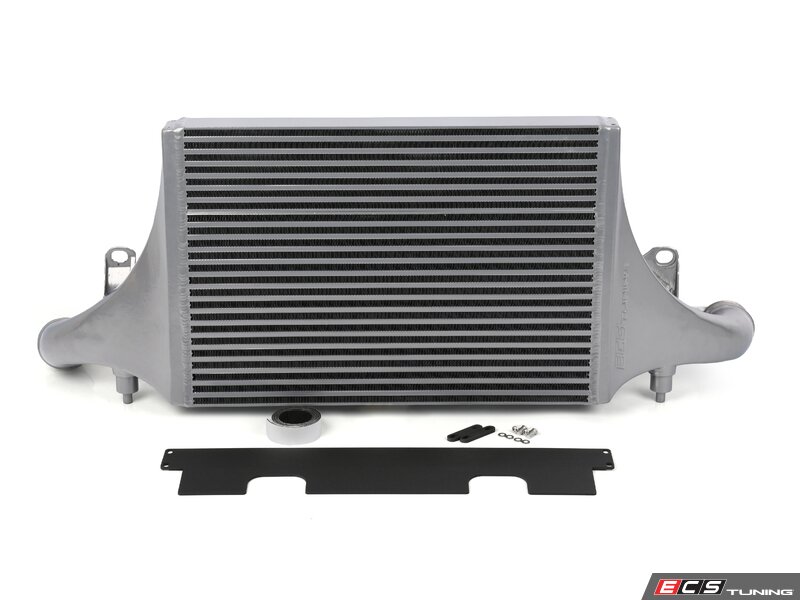

Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| 8Y RS3 Front Mount Intercooler |
|
1 | YES | |
| Sheetmetal Bracket |
|
1 | YES | |
| Cut to Length 4' - EPDM Foam Strip With Adhesive Back |
|
1 | YES |
