Audi B5/B6/B7 A4/S4 Street Shield Skid Plate Kit
10X Entries For Our Spin To Win Sweepstakes!
This product was last offered at the strikethrough price on
08-09-2025
Product Details
10X Entries For Our Spin To Win Sweepstakes!
Protection of your undercarriage is vital. Despite old and late-model Euros incorporating complex underbody componentry, only flimsy plastic belly pans limit catastrophic damage to the underside of your car. Between giant potholes, speed bumps, and inclement weather, your vehicle is exposed to a variety of impacts that can ruin your engine and transmission oil pan, core support, or other critical components.
At ECS, we've seen the destruction that occurs when a road hazard impacts a vehicle's undercarriage. We've set out to safeguard your vehicle and prevent expensive underbody repair work with a durable aluminum belly pan alternative: the ECS Tuning Street Shield.

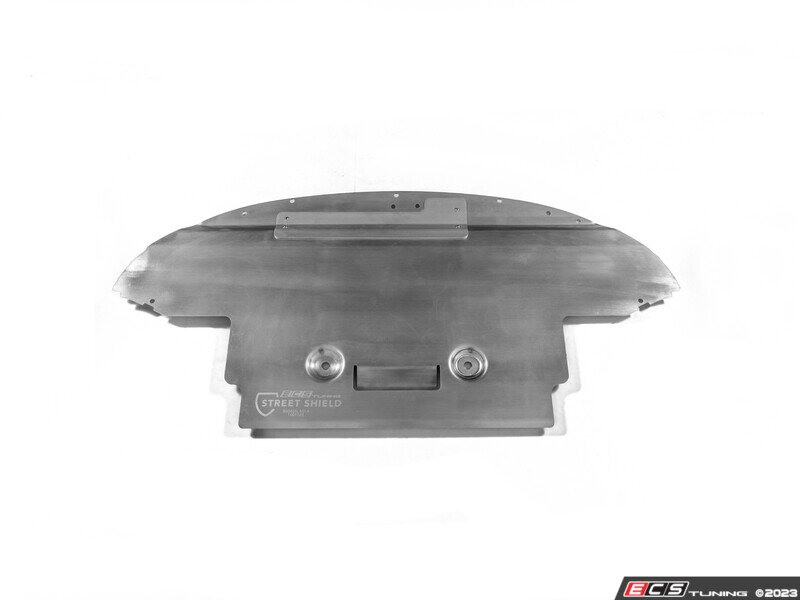

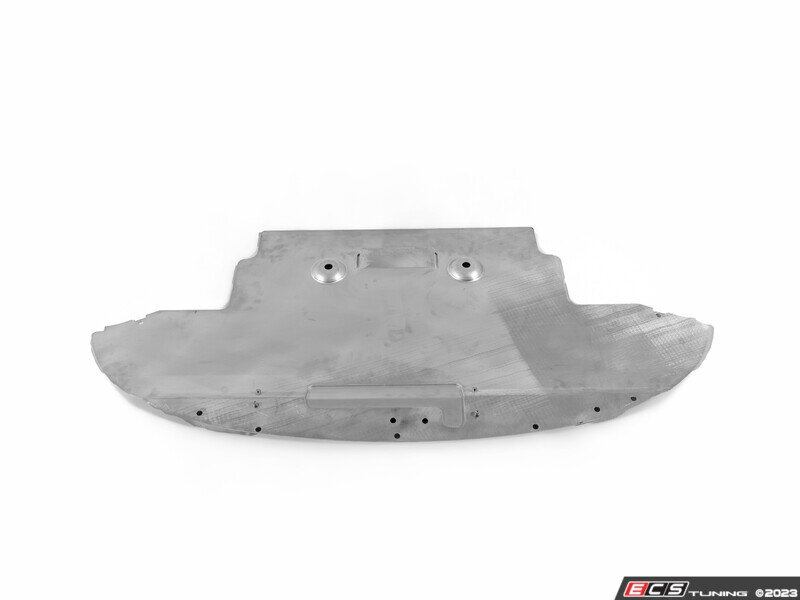

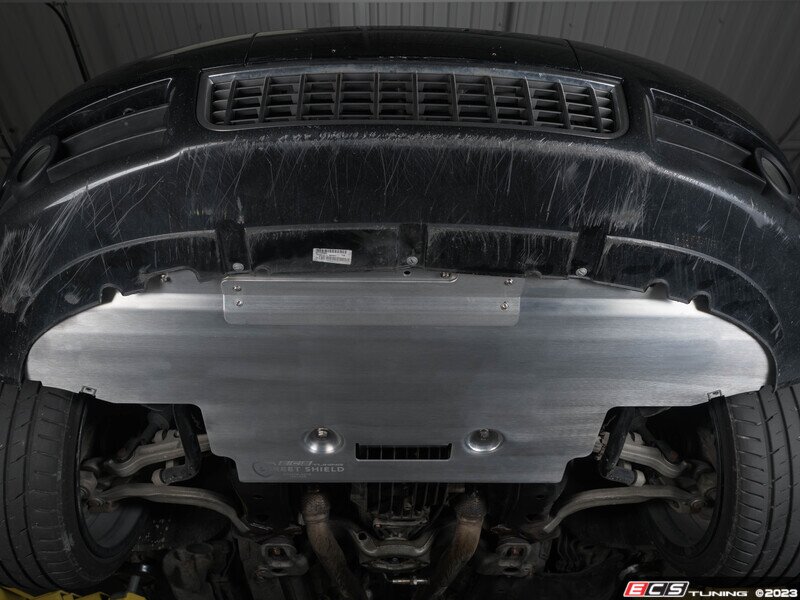

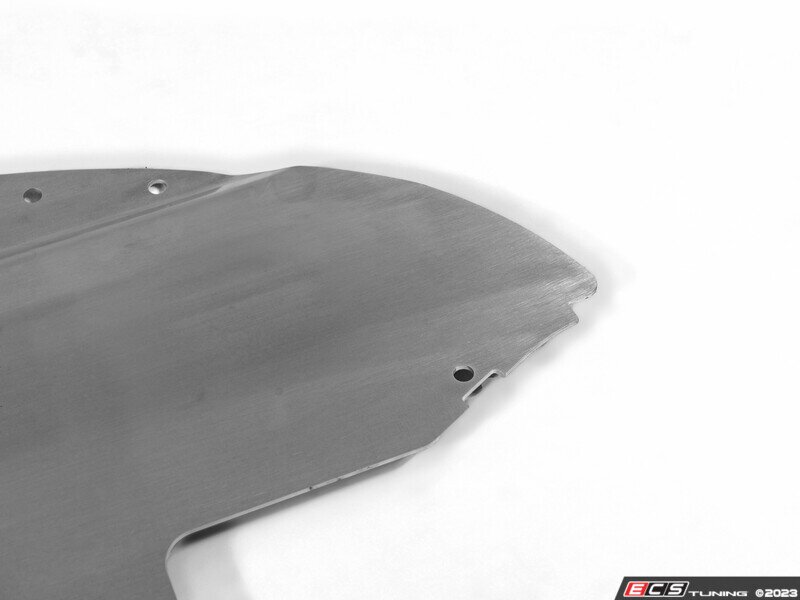

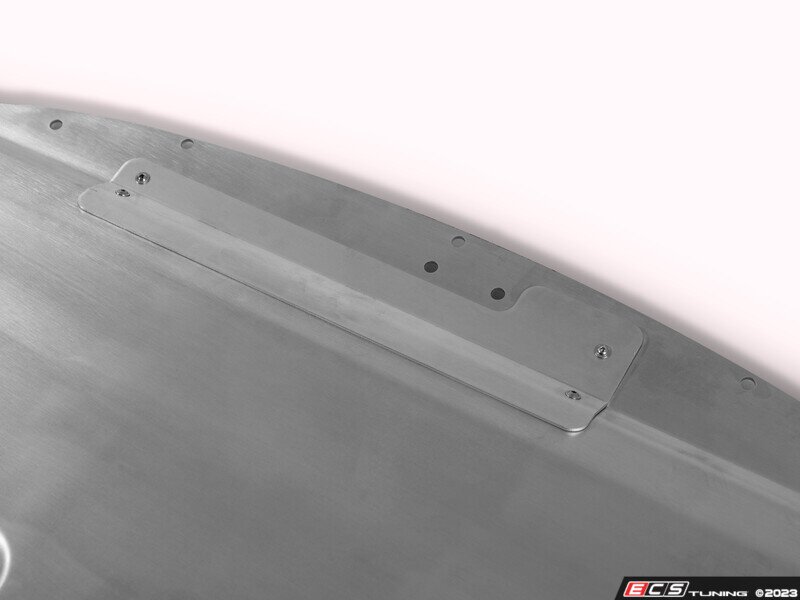

Constructed from sturdy 7-gauge 5052 lightweight aluminum, our skid plate is sure to protect your vehicle's underbody from harsh road conditions. The ECS skid plate encompasses the full length of the engine undercarriage from the front bumper cover to the front subframe to provide complete protection. The entire piece is laser cut for a perfect fit and includes all-new mounting hardware and aluminum brackets for perfect fitment and maximum security. Furthermore, our Street Shield incorporates recessed holes to prevent installation hardware from damage in the event of plate-to-ground contact. In short, our skid plate protects your vehicle's undercarriage and maintains factory performance and cooling, all while maximizing aerodynamics by smoothing airflow under the engine and transmission!
FEATURES
- 7GA (3.66mm) thick rugged 5052 aluminum sheet metal construction
- OEM mounting locations utilized for simple, straightforward installation

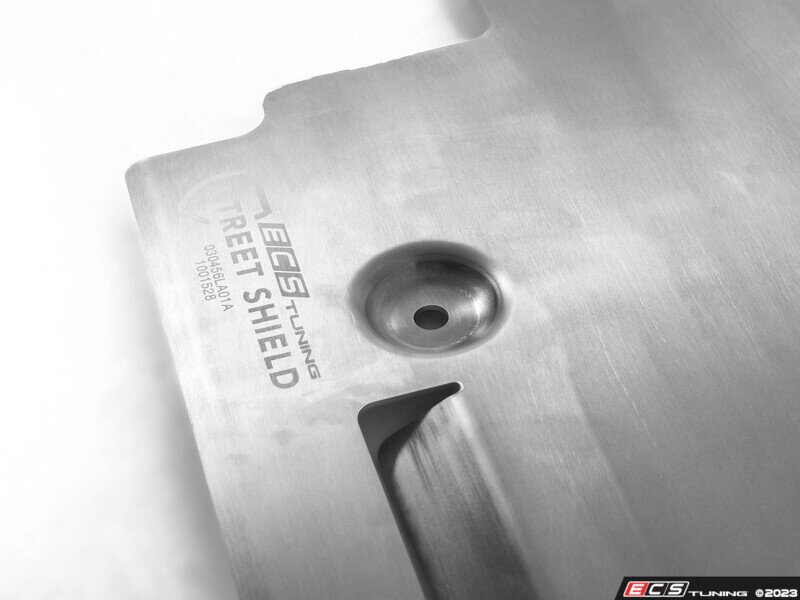

- Dimple-died mounting locations for rearmost hardware prevent hardware from road damage
- Integrated air scoop aids in transmission cooling
PRODUCT DEVELOPMENT
Our ECS Tuning Aluminum Street Shield was designed, engineered, tested, and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, and rigorous long-term product testing.
- 003252ecs02aKT
- 003252ECS02AKT2
- 003252ECS02AKT3
- 003252ECS02AKT4
- 003252ECS02AKT5
- 8E0863821AN, 8E0 863 821 AN, 8E0-863-821-AN
- 8E0863821AL, 8E0 863 821 AL, 8E0-863-821-AL
- 8E0863822D, 8E0 863 822 D, 8E0-863-822-D
- 8E0863822A, 8E0 863 822 A, 8E0-863-822-A
This Part Fits the Following Vehicles
Make | Model | Submodel | Engine | Special Fitment Notes |
---|---|---|---|---|
Audi | B5 A4 | FWD | 1.8T | Use vehicle selector to confirm fitment |
Audi | B5 A4 | FWD | V6 12v | Use vehicle selector to confirm fitment |
Audi | B5 A4 | FWD | V6 30v | Use vehicle selector to confirm fitment |
Audi | B5 A4 | Quattro | 1.8T | Use vehicle selector to confirm fitment |
Audi | B5 A4 | Quattro | V6 12v | Use vehicle selector to confirm fitment |
Audi | B5 A4 | Quattro | V6 30v | Use vehicle selector to confirm fitment |
Audi | B5 S4 | All | 2.7T | Use vehicle selector to confirm fitment |
Audi | B6 A4 | FWD | 1.8T | Use vehicle selector to confirm fitment |
Audi | B6 A4 | FWD | V6 30v | Use vehicle selector to confirm fitment |
Audi | B6 A4 | Quattro | 1.8T | Use vehicle selector to confirm fitment |
Audi | B6 A4 | Quattro | V6 30v | Use vehicle selector to confirm fitment |
Audi | B6 S4 | All | V8 | Use vehicle selector to confirm fitment |
Audi | B7 A4 | FWD | 2.0T | For Vehicles Equipped with a Manual Transmission - Does not fit CVT |
Audi | B7 A4 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
Audi | B7 RS4 | All | V8 | Use vehicle selector to confirm fitment |
Audi | B7 S4 | All | V8 | Use vehicle selector to confirm fitment |
Volkswagen | Passat B5 | 4 Motion | 1.8T | Use vehicle selector to confirm fitment |
Volkswagen | Passat B5 | 4 Motion | V6 30v | Use vehicle selector to confirm fitment |
Volkswagen | Passat B5 | FWD | 1.8T | Use vehicle selector to confirm fitment |
Volkswagen | Passat B5 | FWD | V6 30v | Use vehicle selector to confirm fitment |

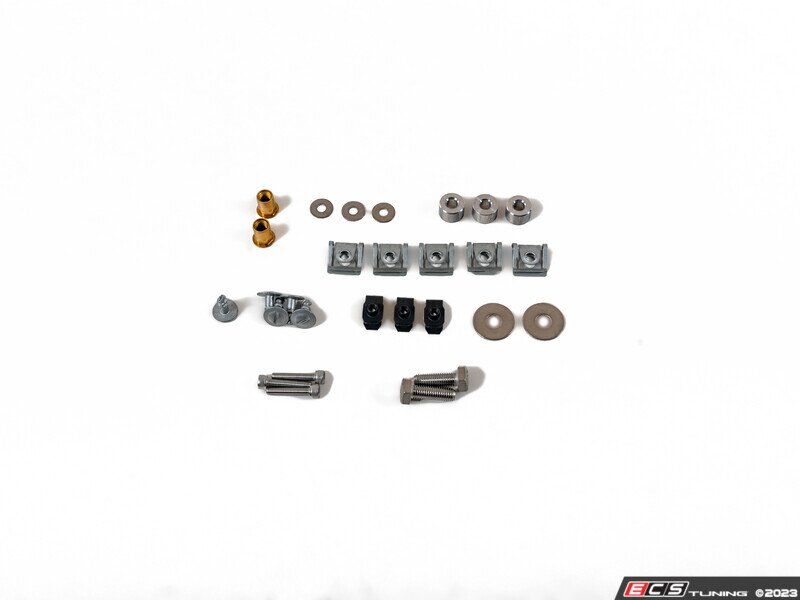

Kit Contents
Description | Brand | Qty | Lifetime | |
---|---|---|---|---|
6mm Stainless Washer, Priced Each |
![]() |
3 | YES | |
Speed Nut - Priced Each |
![]() |
5 | YES | |
M10 Rivnut Install Tool |
![]() |
1 | YES | |
316 Stainless Steel Hex Head Cap Screw, M10 Thread, 1.5mm Pitch, 30mm Long, Fully Threaded |
![]() |
2 | YES | |
Metric Type 316 Stainless Steel Large-Diameter Flat Washer, M10 Screw Size, 30mm OD, 2.3mm-2.7mm Thick |
![]() |
2 | YES | |
Tapped-Hole NO-Slip Clip-on Nut M6 Size, 1mm Pitch, For .8 - 4mm Thick Panel |
![]() |
3 | YES | |
Aluminum Unthreaded Spacer 3/4" OD, 1/2" Length, 5/16" Screw Size |
![]() |
3 | YES | |
18-8 SS Button-Head Socket Cap Screw M6 Size, 30 Mm Length, 1 Mm Pitch |
![]() |
3 | YES | |
Dowel Pin - Priced Each |
![]() |
5 | YES | |
10mm 3.8 Grip Steel Rivet Nut Hex Body - Priced Each |
![]() |
2 | YES | |
Audi B5 A4/S4 B6/B7 A4/S4 Skid Plate Assembly |
![]() |
1 | YES |
