Turner Monoball Rear Lower Shock Mount Set

A unique design to reduce play, increasing feel & longevity when performance is required
10X Entries For Our G87 M2 Sweepstakes!
Turner Motorsport
Mfg Part #
024572TMS03
ECS Part #
ES#3537564
Brand
Turner Motorsport

SALE: 318.74 (15% OFF)
WAS: $374.99 on 08-09-2025

This product was last offered at the strikethrough price on
08-09-2025


Free Shipping Free Shipping
This product is lifetime replacement eligible Lifetime Replacement
This product is backed by our
Lifetime Replacement Program! Read more here
Availability:
In Stock
Est. Ship Date:
Today
Qty
Does this fit my vehicle?

Product Details

10X Entries For Our G87 M2 Sweepstakes!

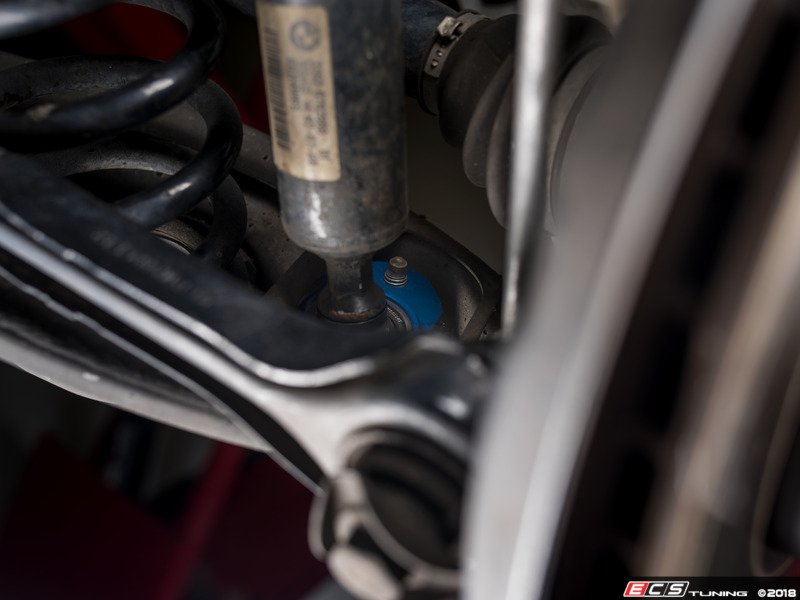

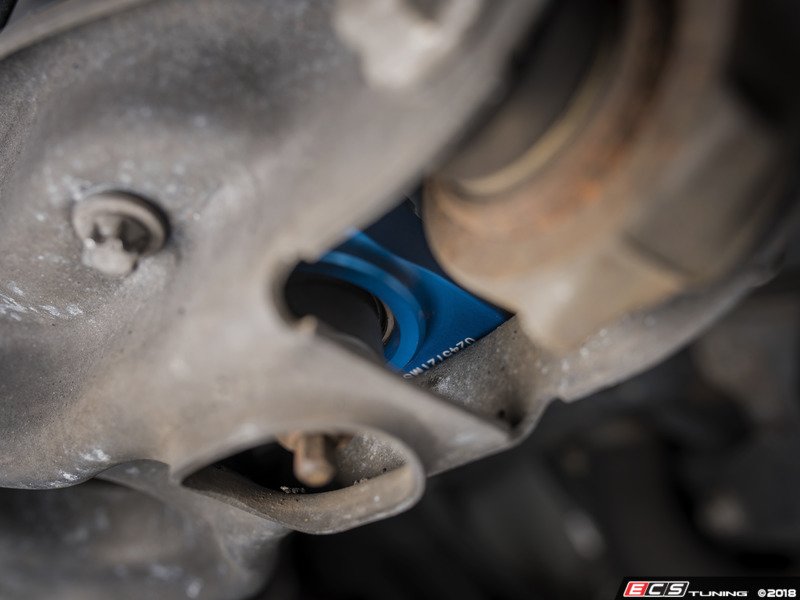

The lower rear shock mounts on the E8x/E9x chassis are known for quick failure and completely falling apart when they do, which will quickly be felt in your driving experience. The combination of rubber and steel, mounted in a low pocket on the rear control arm make this a perfect mix for corrosion destroying the mount. By allowing uninhibited shock articulation and a direct connection to the lower control arm, this solid monoball design eliminates slop and improves shock efficiency, allowing for more predictable handling on the street or the track - with minimal added noise, vibration, and harshness.

The engineering team at Turner came up with a design that would increase performance covering the largest issues with these rubber bushings. The performance improvement of these mounts is primarily due to the low friction articulation allowed by the bearing, combined with the elimination of unwanted deflection. Rubber mounts do not allow for proper free damper movement and the damping affect reduces the shock's ability to control wheel end movement directly.

If you're interested in bulletproofing your upper rear shock mount as well, see Turner's monoball upper rear shock mount here - ES3660640

Key Benefits:

  • Monoball rear lower shock mount eliminates unwanted deflection, maximizing shock efficiency and performance.
  • Allows full shock body articulation for low friction movement and reduced side loading and improved shock wear.
  • Designed to work with stock non-M taper seat stud style shocks (not M eyelet mount type).
  • Maintains OE shock position

Design features:

  • Rebuildable using off the shelf bearings - ES3698648 - these are the last rear shock mounts you’ll need to buy -
  • Includes new hardware
  • Made in USA

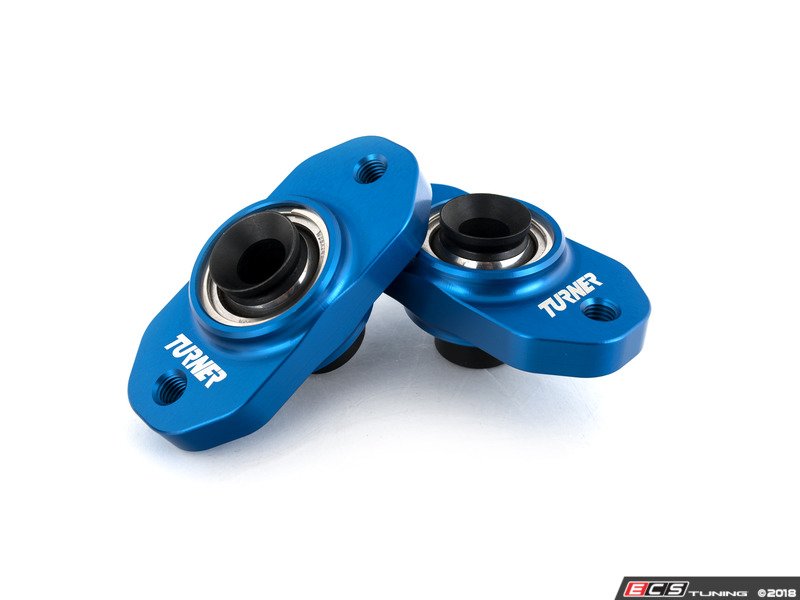

Housing:

  • Billet CNC 6061-T6 aluminum housing, type II anodized for exceptional durability and corrosion resistance

Bearing:

  • FK WSSX14T teflon lined spherical bearing
  • 440C heat-treated stainless steel ball, 1 ⅜” ball dia.
  • 17-4 PH heat-treated stainless steel race
  • Self-lubricating PTFE liners are chemically bonded to the inner diameter of the race to offer a very high load-carrying capacity with greatly increased dynamic wear characteristics.
  • Static Axial Load Rating: 10,800 lbs.
  • Rod End Misalign Angle: 6 degrees

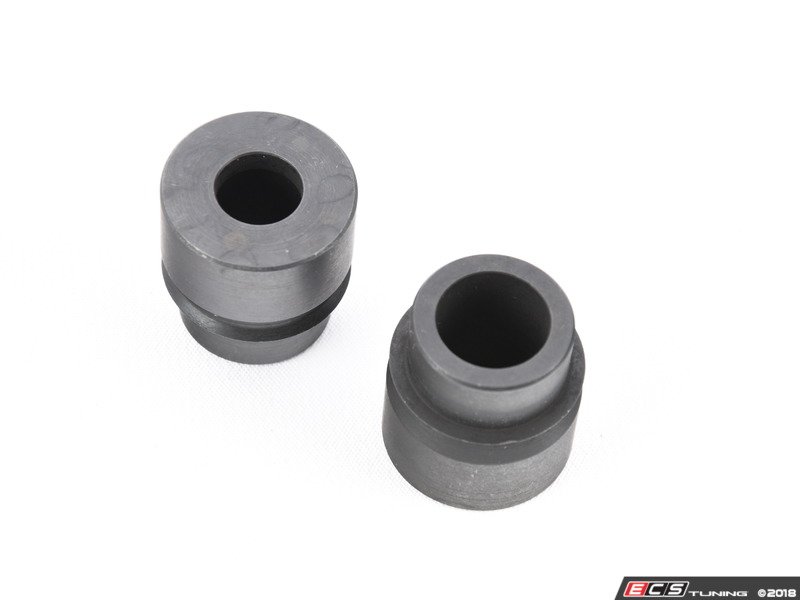

Bearing inserts:

  • CNC machined 1144 steel, heat treated and melonite coated designed to maximize ball articulation while offering exceptional durability and corrosion resistance.
Cross Reference
  • 33526768544

This Part Fits the Following Vehicles

Make Model Submodel Engine Special Fitment Notes
BMW E82 128i N52 3.0L Use vehicle selector to confirm fitment
BMW E82 135i N54 3.0L Use vehicle selector to confirm fitment
BMW E82 135i N55 3.0L Use vehicle selector to confirm fitment
BMW E88 128i N52 3.0L Use vehicle selector to confirm fitment
BMW E88 135i N54 3.0L Use vehicle selector to confirm fitment
BMW E88 135i N55 3.0L Use vehicle selector to confirm fitment
BMW E90 325i N52 3.0L Use vehicle selector to confirm fitment
BMW E90 325xi N52 3.0L Use vehicle selector to confirm fitment
BMW E90 328i N52 3.0L Use vehicle selector to confirm fitment
BMW E90 328xi N52 3.0L Use vehicle selector to confirm fitment
BMW E90 330i N52 3.0L Use vehicle selector to confirm fitment
BMW E90 330xi N52 3.0L Use vehicle selector to confirm fitment
BMW E90 335d M57 3.0L Use vehicle selector to confirm fitment
BMW E90 335i N54 3.0L Use vehicle selector to confirm fitment
BMW E90 335i N55 3.0L Use vehicle selector to confirm fitment
BMW E90 335xi N54 3.0L Use vehicle selector to confirm fitment
BMW E90 335xi N55 3.0L Use vehicle selector to confirm fitment
BMW E91 325xi N52 3.0L Use vehicle selector to confirm fitment
BMW E91 328i N52 3.0L Use vehicle selector to confirm fitment
BMW E91 328xi N52 3.0L Use vehicle selector to confirm fitment
BMW E92 328i N52 3.0L Use vehicle selector to confirm fitment
BMW E92 328xi N52 3.0L Use vehicle selector to confirm fitment
BMW E92 335i N54 3.0L Use vehicle selector to confirm fitment
BMW E92 335i N55 3.0L Use vehicle selector to confirm fitment
BMW E92 335is N54 3.0L Use vehicle selector to confirm fitment
BMW E92 335xi N54 3.0L Use vehicle selector to confirm fitment
BMW E92 335xi N55 3.0L Use vehicle selector to confirm fitment
BMW E93 328Ci All Use vehicle selector to confirm fitment
BMW E93 328i N52 3.0L Use vehicle selector to confirm fitment
BMW E93 335i N54 3.0L Use vehicle selector to confirm fitment
BMW E93 335i N55 3.0L Use vehicle selector to confirm fitment
BMW E93 335is N54 3.0L Use vehicle selector to confirm fitment
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

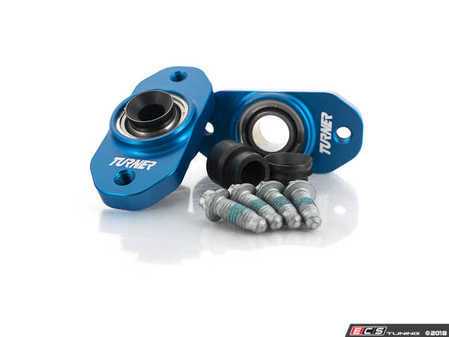

Kit Contents

Description Brand Qty Lifetime

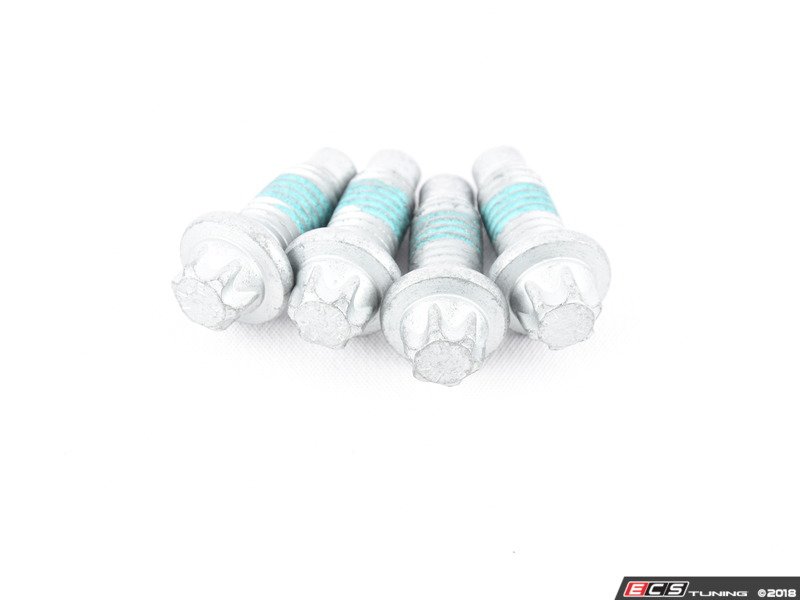

Torx Bolt With Collar - Priced Each Genuine BMW - Corporate Logo 4 YES
Turner E9xNM Monoball Lower Rear Shock Mount - Pair Turner Motorsport - Corporate Logo 1 YES
